How the Air Brake Foot Valve Works in Vehicles

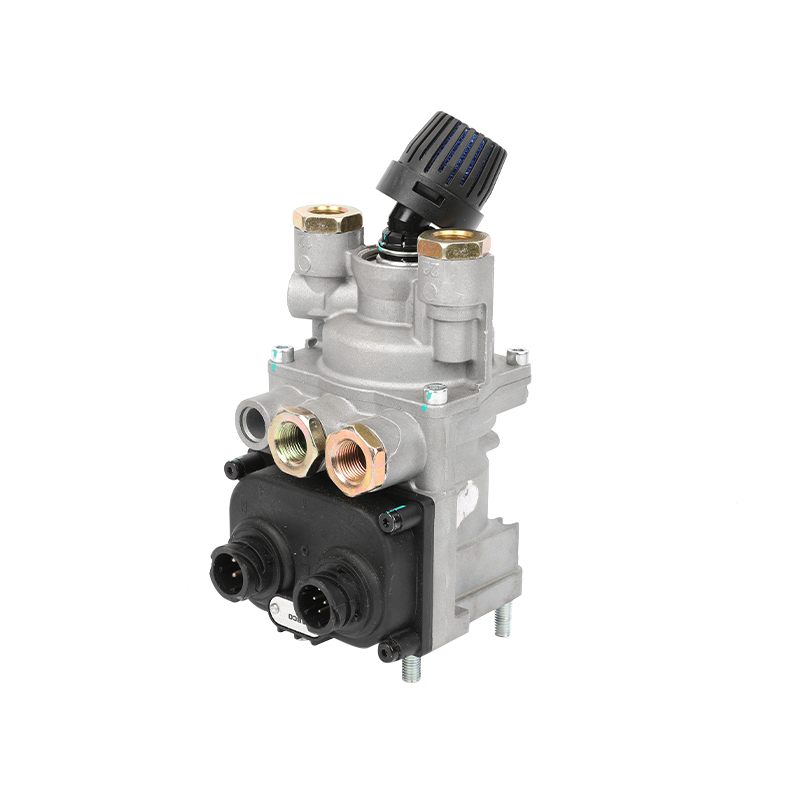

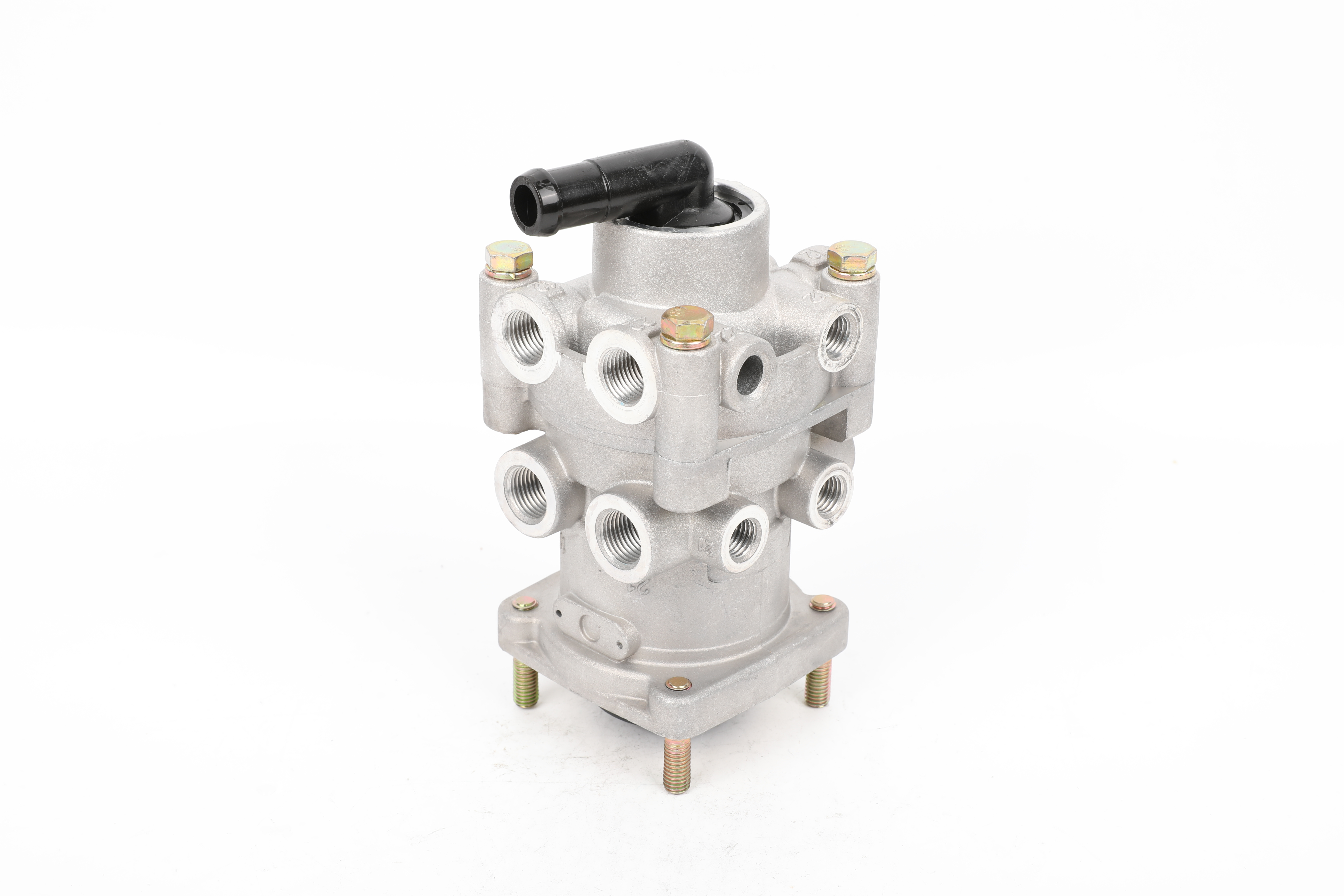

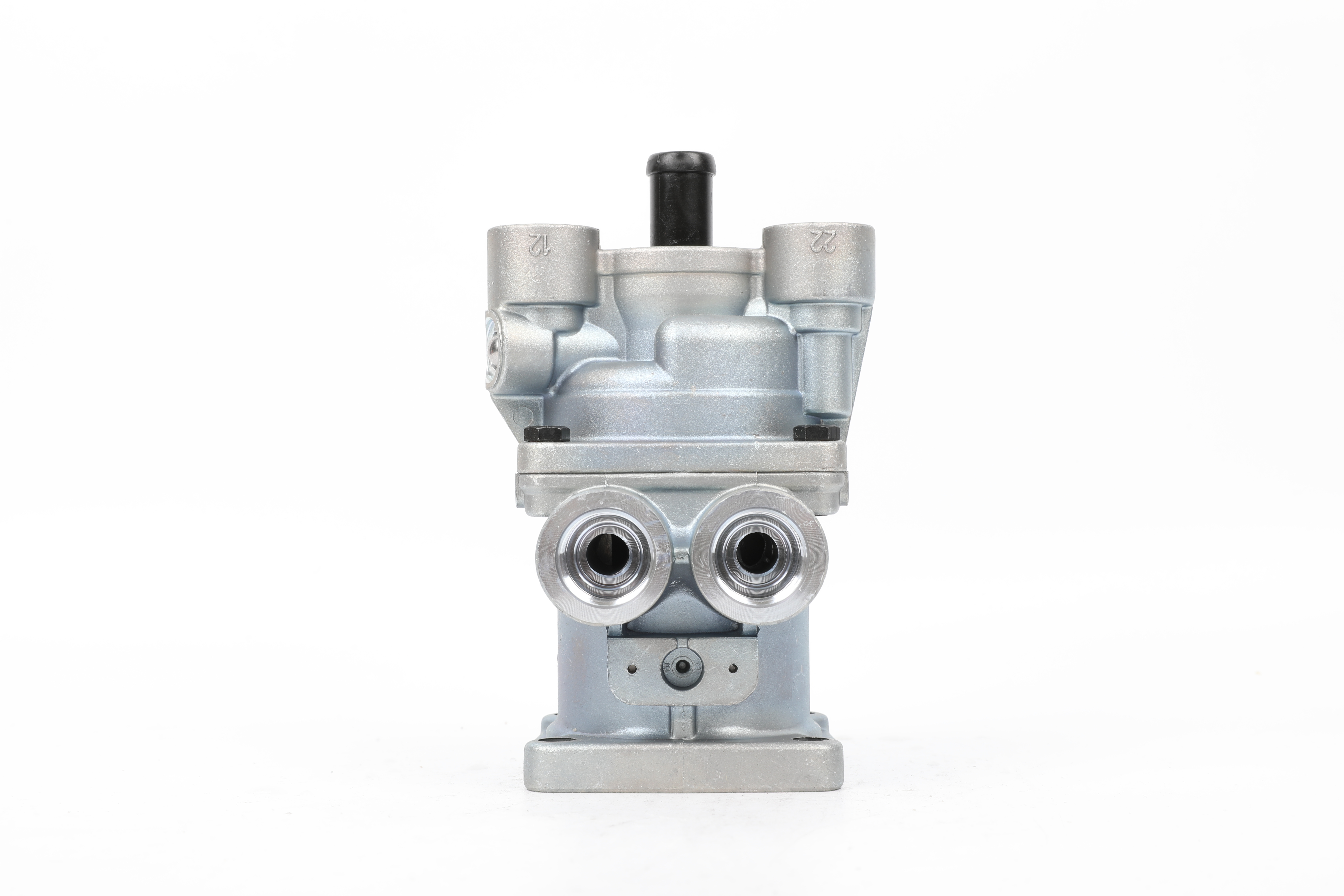

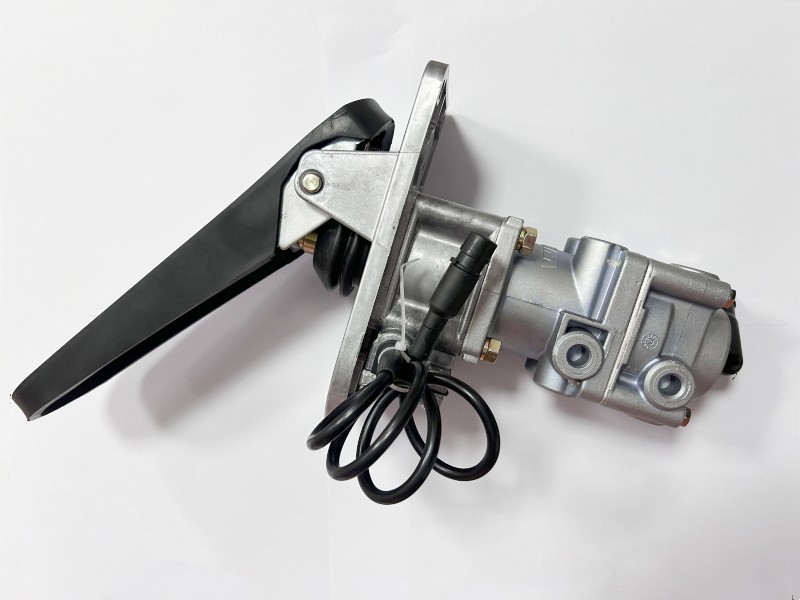

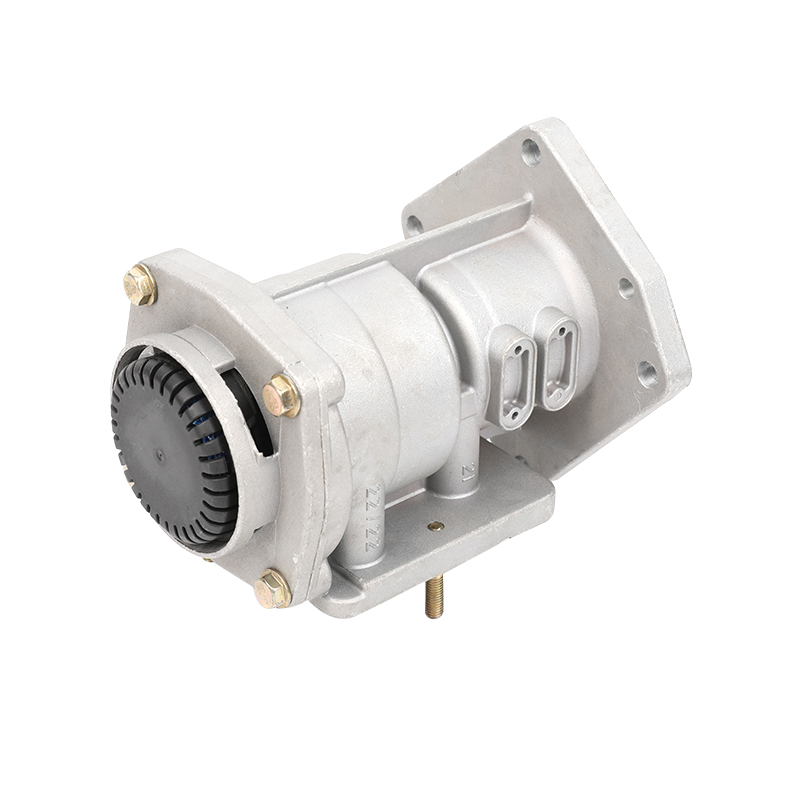

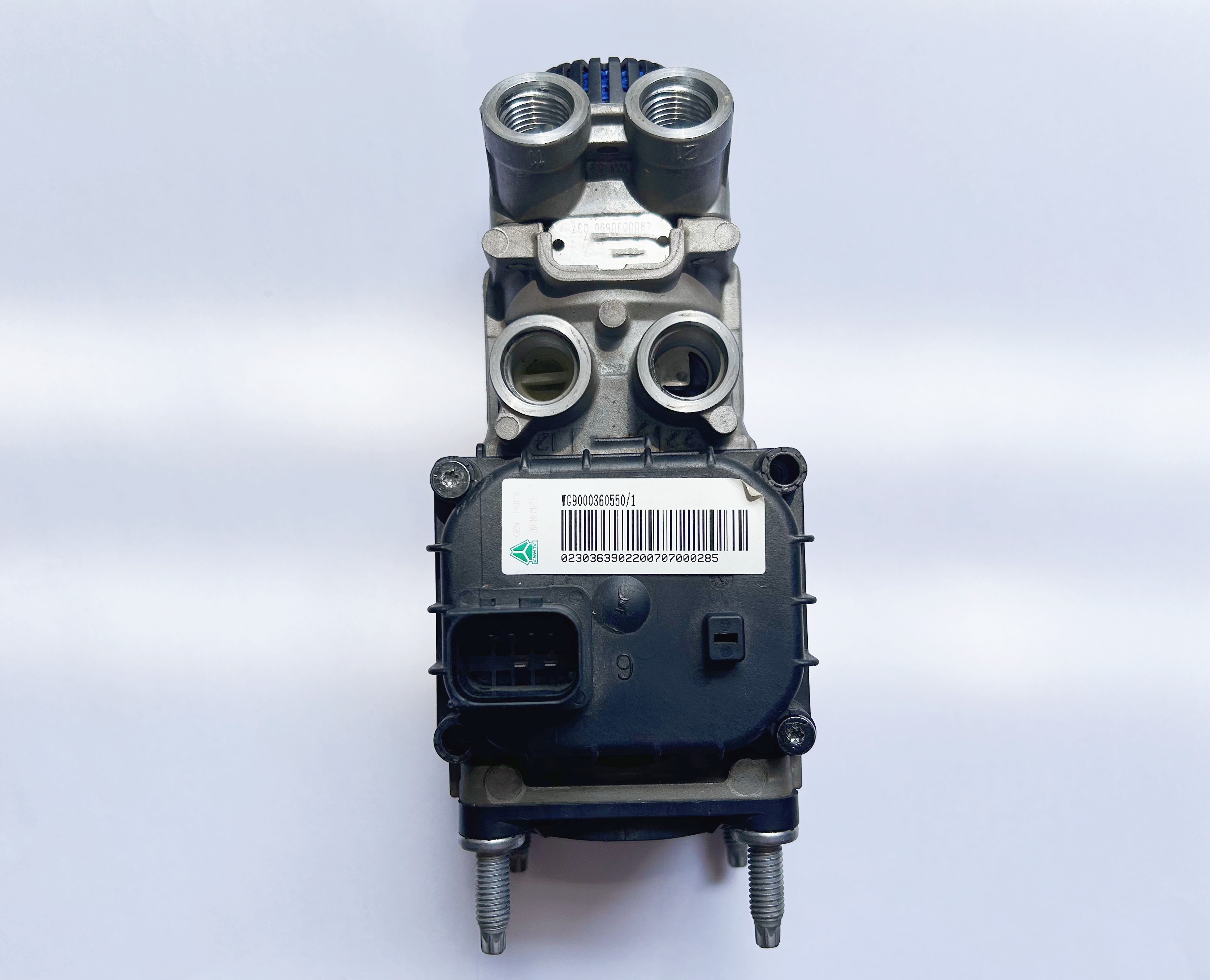

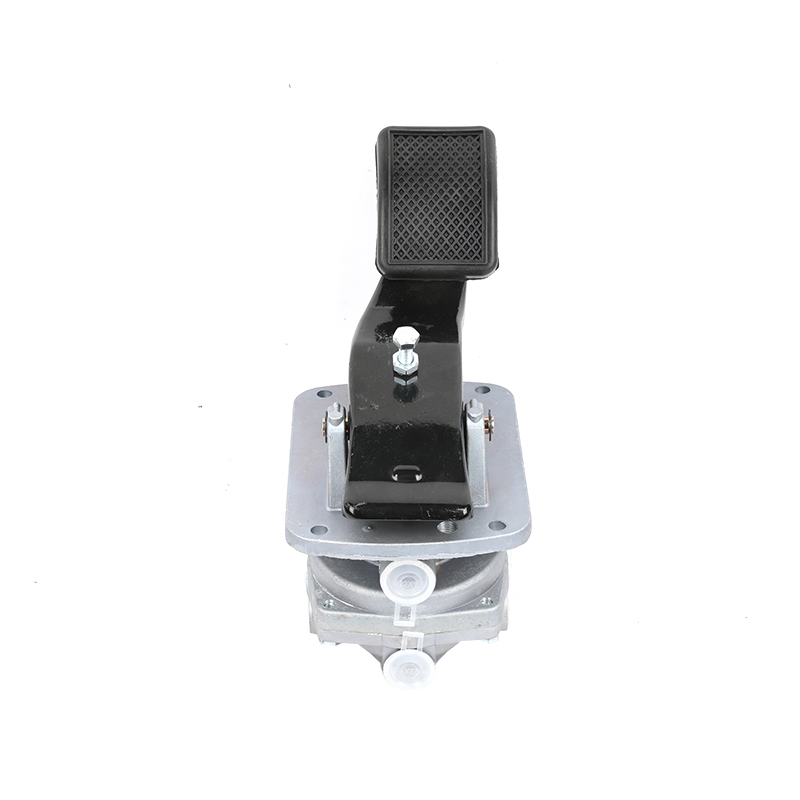

The air brake foot valve
, also known as a treadle valve or brake pedal valve, is a key component in the air brake system of heavy vehicles such as trucks and buses. It works by controlling the flow of compressed air that operates the vehicle's brakes.
When the driver presses down on the brake pedal, it activates the air brake foot valve. This causes a plunger inside the valve to move, which opens a valve that allows compressed air to flow from the vehicle's air tanks to the brake chambers on each wheel.
The amount of pressure applied to the brake pedal determines the amount of air that is released into the brake chambers, which in turn determines the force applied to the brakes. This allows the driver to control the braking force and bring the vehicle to a stop.
When the driver releases the brake pedal, the plunger in the foot valve returns to its original position, cutting off the flow of air to the brake chambers and allowing the brakes to release.
The foot valve also contains a number of safety features, such as a spring-loaded valve that will automatically close in the event of a loss of air pressure in the system, preventing the brakes from engaging unintentionally. Additionally, the foot valve typically includes a parking brake valve that can be activated by pulling a lever, locking the brakes in place and preventing the vehicle from moving.
Importance of the Air Brake Foot Valve in Vehicle Braking Systems
The air brake foot valve
plays a crucial role in the operation of a vehicle's braking system. It is a mechanical device that controls the flow of compressed air to the brakes, allowing the driver to slow down or stop the vehicle. Here are some of the key reasons why the air brake foot valve is so important:
Primary control mechanism: The air brake foot valve is the primary control mechanism for a vehicle's braking system. When the driver presses the brake pedal, it opens the valve and allows compressed air to flow to the brakes. This, in turn, activates the brake chambers and applies the brakes to slow down or stop the vehicle.
Safety: The air brake foot valve is essential for ensuring the safety of the driver and other road users. It enables the driver to control the speed of the vehicle and bring it to a stop in a safe and controlled manner.
Reliability: The air brake foot valve is designed to be reliable and durable. It is built to withstand the harsh conditions of the road and operate effectively in all weather conditions.
Compatibility: The air brake foot valve is designed to be compatible with different types of vehicles and braking systems. This means that it can be used in a wide range of applications, from heavy-duty trucks to buses and other commercial vehicles.
Compliance: The air brake foot valve is a critical component of a vehicle's braking system, and its proper functioning is required by law. It is subject to regular inspections and maintenance to ensure compliance with safety regulations.
In summary, the air brake foot valve is a crucial component of a vehicle's braking system. It provides the driver with the means to control the speed of the vehicle and bring it to a stop safely and reliably, making it an essential part of any commercial vehicle's equipment.
