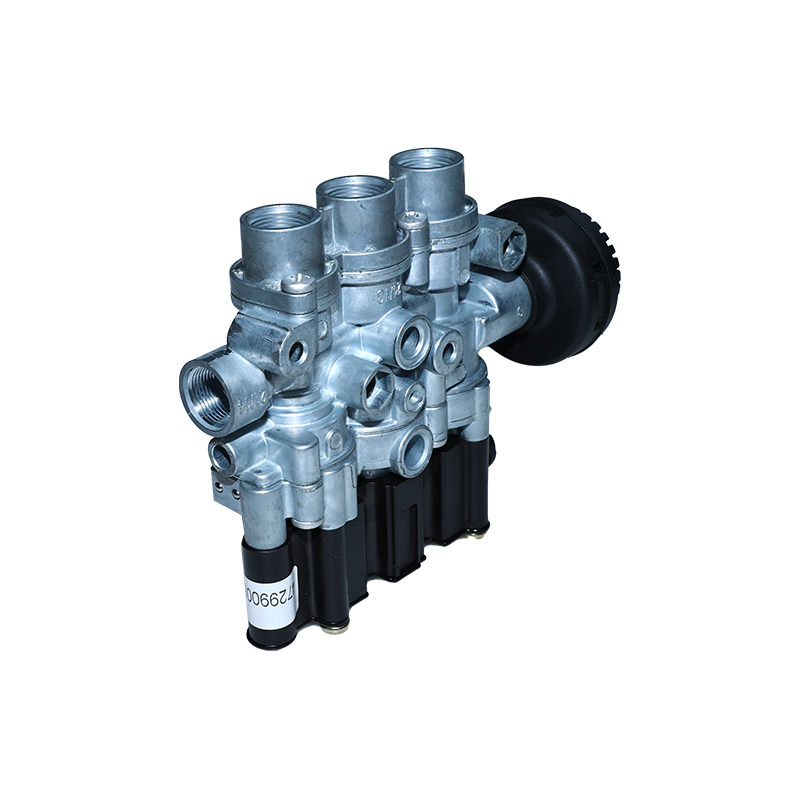

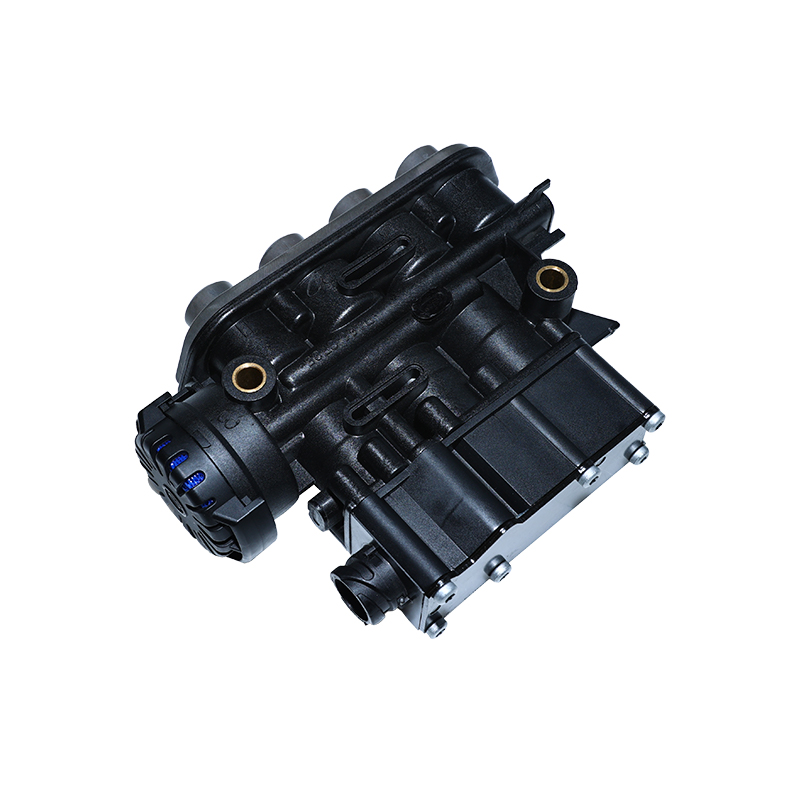

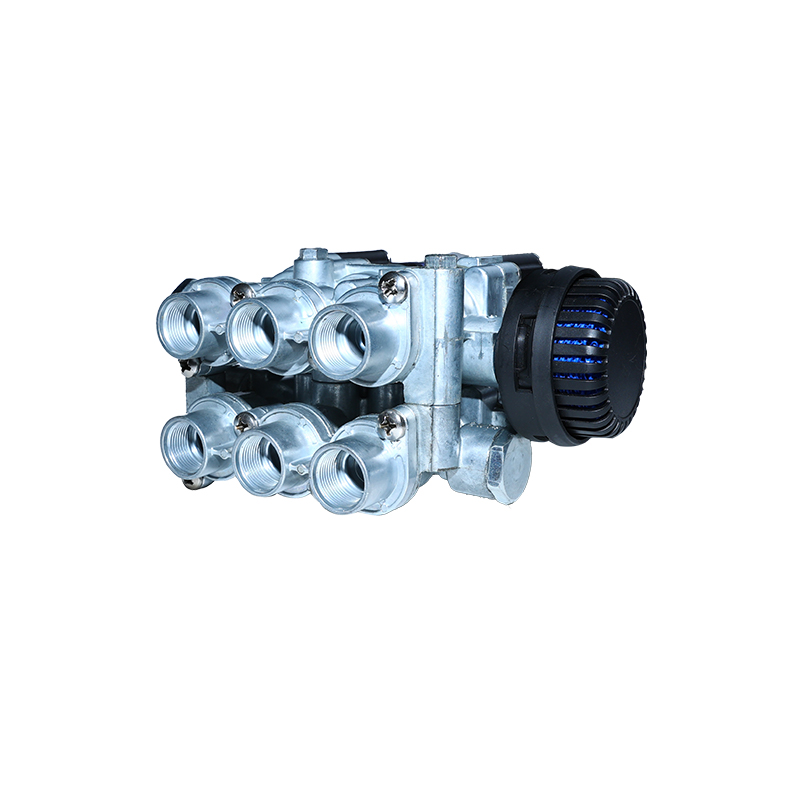

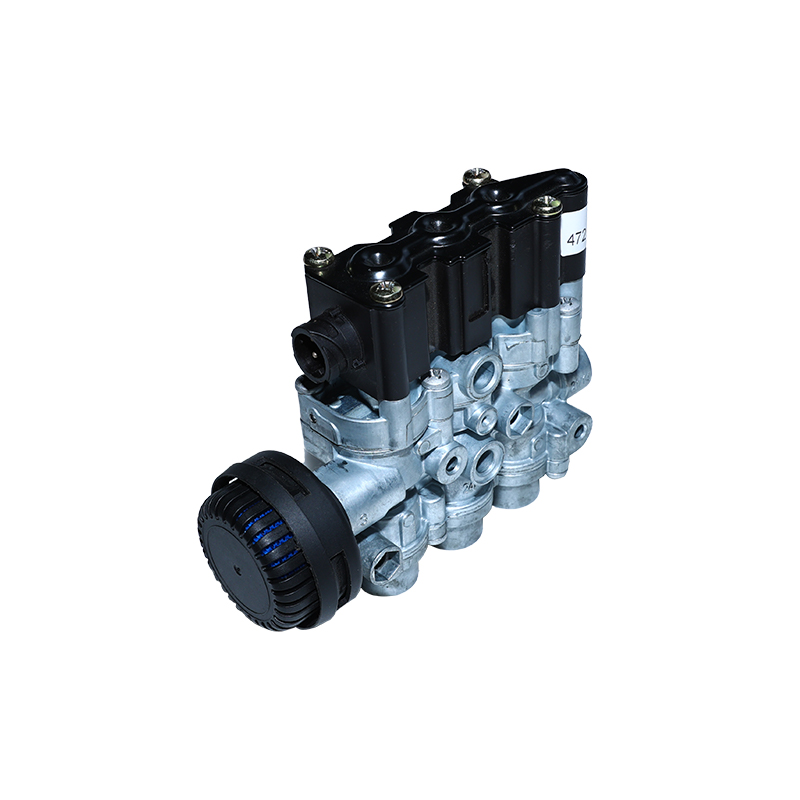

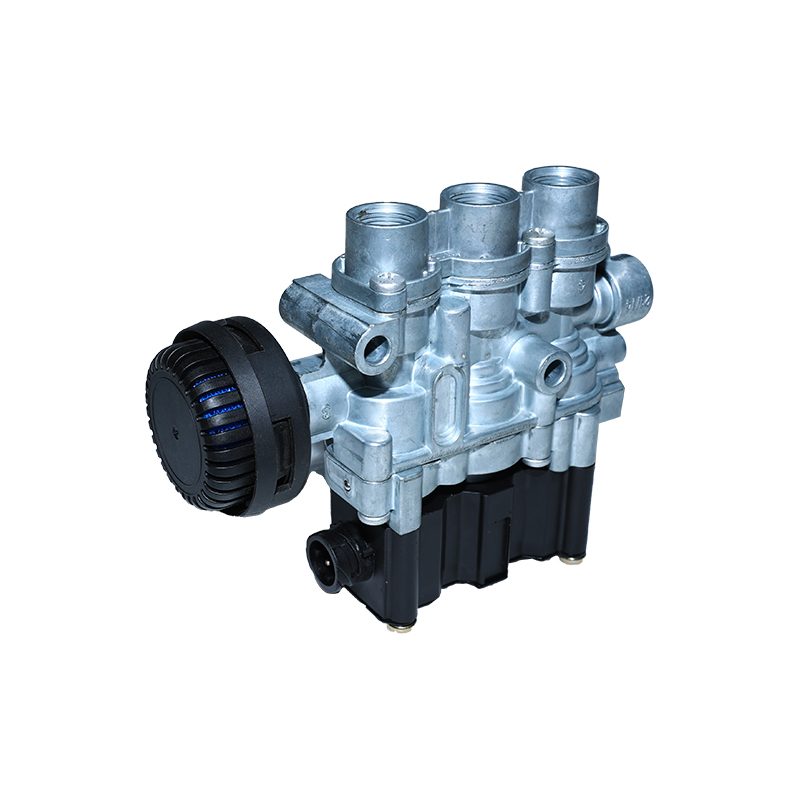

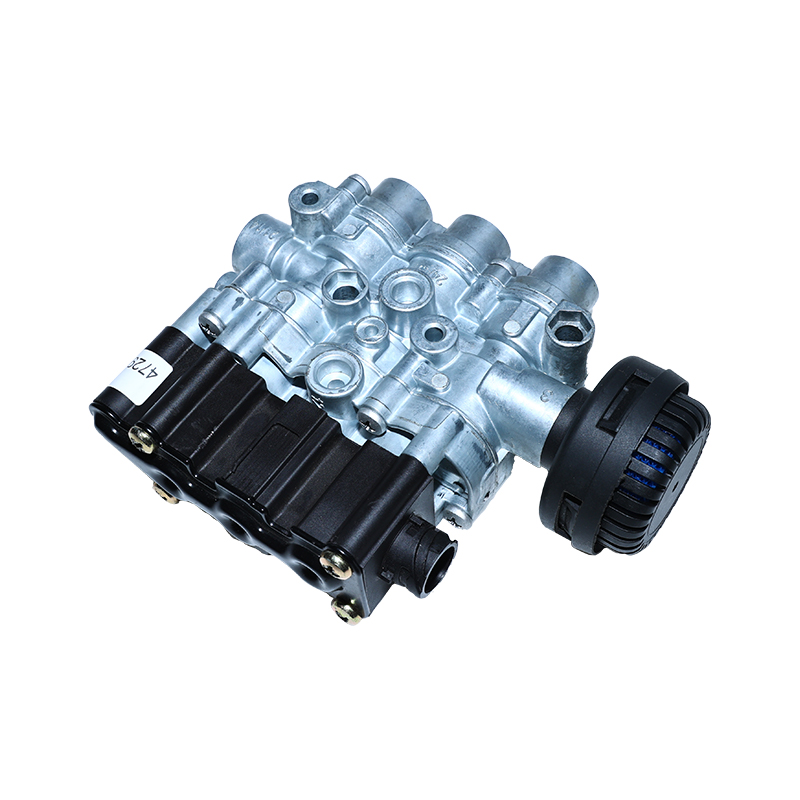

4729000550 Max. operating pressure:20.0 bar for daf,volvo benz ecas solenoid valve Custom

4729000550 Max. operating pressure:20.0 bar for daf,volvo benz ecas solenoid valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Application:

    Rear axle

    Electrical Connection

    Bayonet (DIN)

    Max. operating pressure

    20.0 bar

    Multi Nominal diameter (From Port 1 to x)

    9.8 / 7.0 / 0.6 mm

    Port thread 11

    M22 x 1.5 JED - 388

    Port thread 21

    M22 x 1.5 JED - 388

    Port thread 22

    M22 x 1.5 JED - 388

    Port thread 23

    M22 x 1.5 JED - 388

    Port thread 3

    Silencer 432 407 060 0

    Port threads

    M22 x 1.5 Parker

    Protection Class

    IP 6K6K

    Rated Current

    320 mA

    Temperature range

    -40°C to +80°C

    Voltage

    24 V

    Calculated Volume (dm³)

    2.7547

    Size (mm x mm x mm)

    178 x 212 x 73

    Weight (kg)

    2.365

    Weight (lb)

    5.2139

    Application:

     ALEXANDER DENNIS, DAF, DOLL, FAYMONVILLE, FELDBINDER GOLDHOFER, ISUZU, KRONE, KÄSSBOHRER, KÖGEL, LANGENDORF, LEYLAND DAF MAN, Meiller, NEOPLAN, SCANIA, SCHMITZ CARGOBULL, SCHWARZMÜLLER, Tirsan, VDL, VOLVO

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4729000550 Max. operating pressure:20.0 bar for daf,volvo benz ecas solenoid valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
