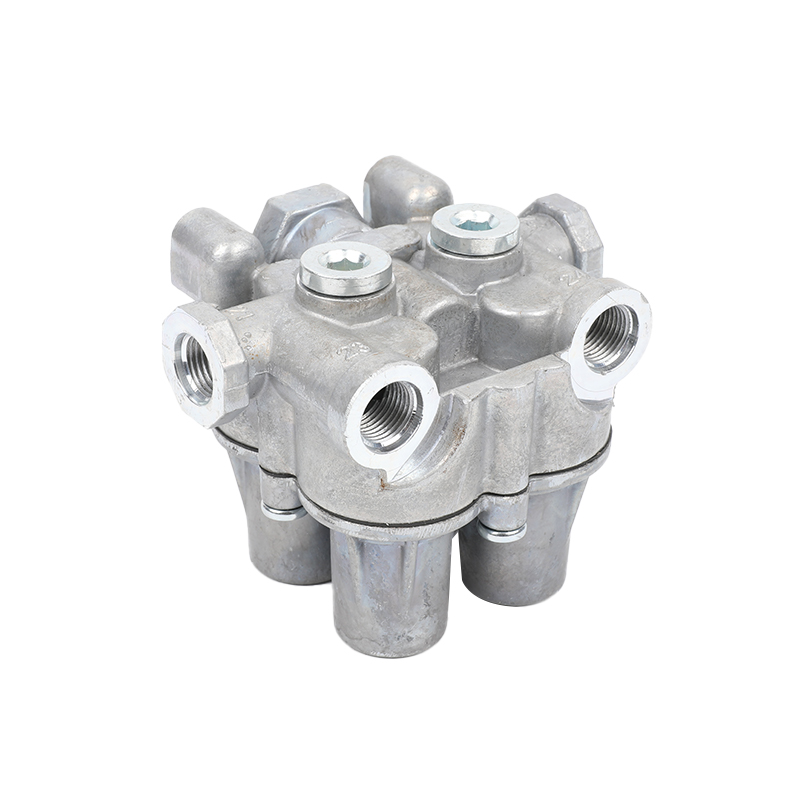

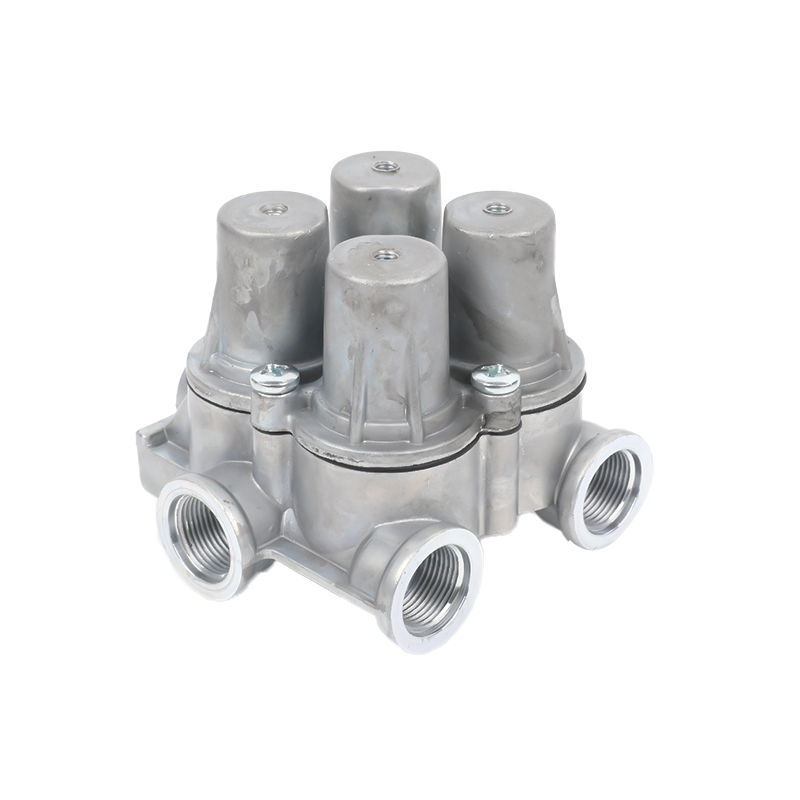

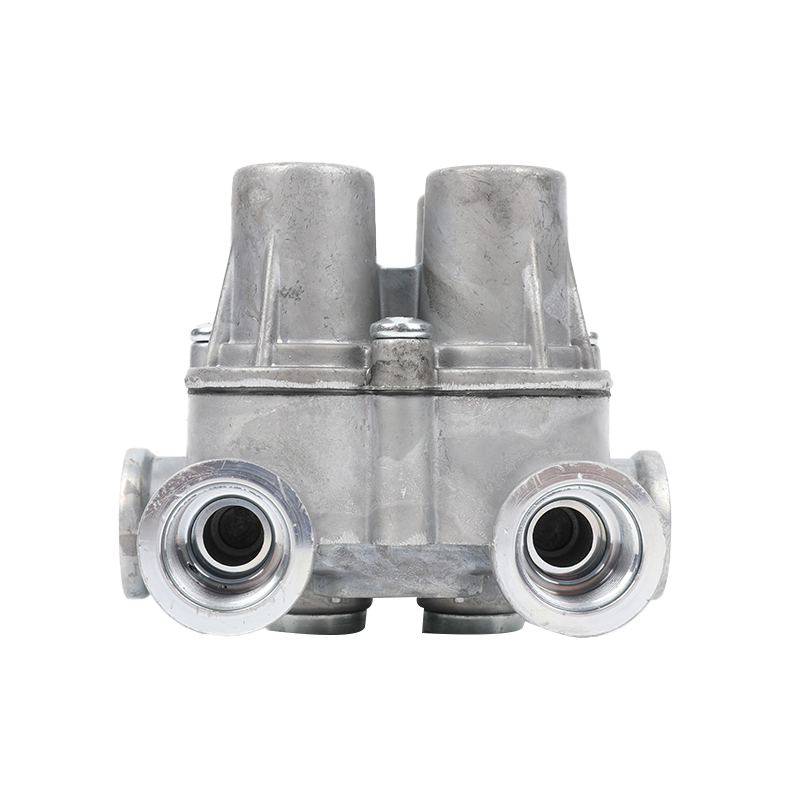

AE4158 Triple protection valve Custom

AE4158 Triple protection valve

AE4158 Triple protection valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message

  • What does an air protection valve do?
    Protects the air brake system in the event of a leak or failure within the air suspension system. Premium Valve has a serviceable replacement filter that minimizes contaminants and other debris from entering other air system accessories.

    Charging pressure：

    3.5 bar

    Closing pressure dynamic 21：

    6.7 bar

    Closing pressure dynamic 22：

    6.7 bar

    Closing pressure dynamic 23：

    6.7 bar

    Closing pressure dynamic 24：

    6.7 bar

    Closing pressure static 21：

    6.7 bar

    Closing pressure static 22：

    6.7 bar

    Closing pressure static 23：

    6.0 bar

    Closing pressure static 24：

    6.0 bar

    Max. operating pressure：

    20.0 bar

    Opening pressure 21：

    7 bar

    Opening pressure 22：

    7 bar

    Opening pressure 23：

    7 bar

    Opening pressure 24：

    7 bar

    Opening pressure circuit 1+2：

    7.0 + 7.0 bar

    Port thread 1：

    M22 x 1.5

    Port thread 21：

    M22 x 1.5

    Port thread 22：

    M22 x 1.5

    Port thread 23：

    M22 x 1.5

    Port thread 24：

    M22 x 1.5

    Port thread 4：

    M22 x 1.5

    Pressure sensor：

    No

    Temperature range：

    -40°C to +90°C

    Type：

    dynamic

    Calculated Volume (dm³)：

    1.2034

    Size (mm x mm x mm)：

    114 x 116 x 91

    Weight (kg)：

    0.991

    Weight (lb)：

    2.1848
