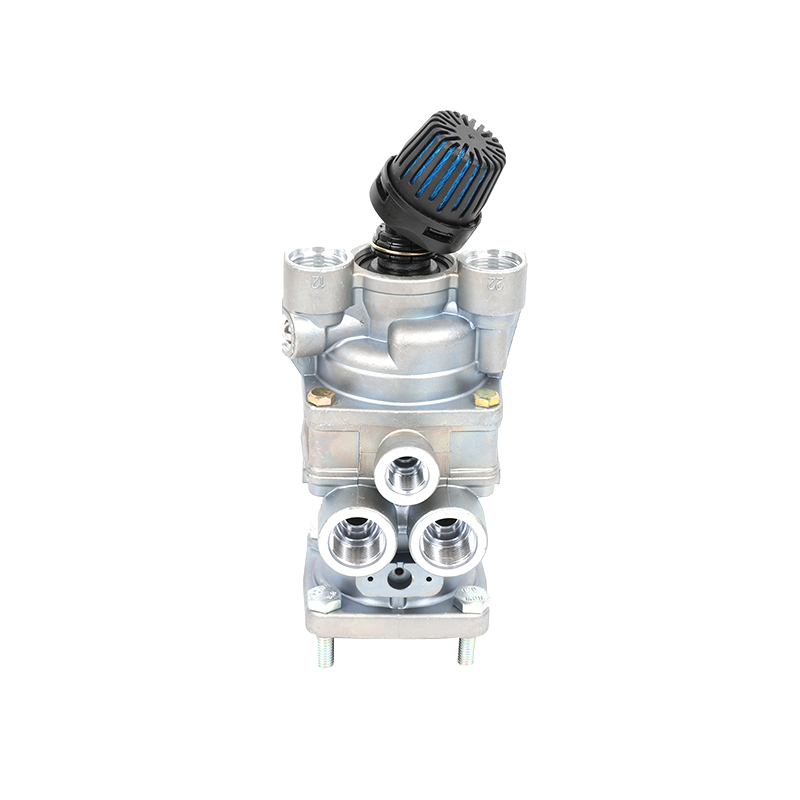

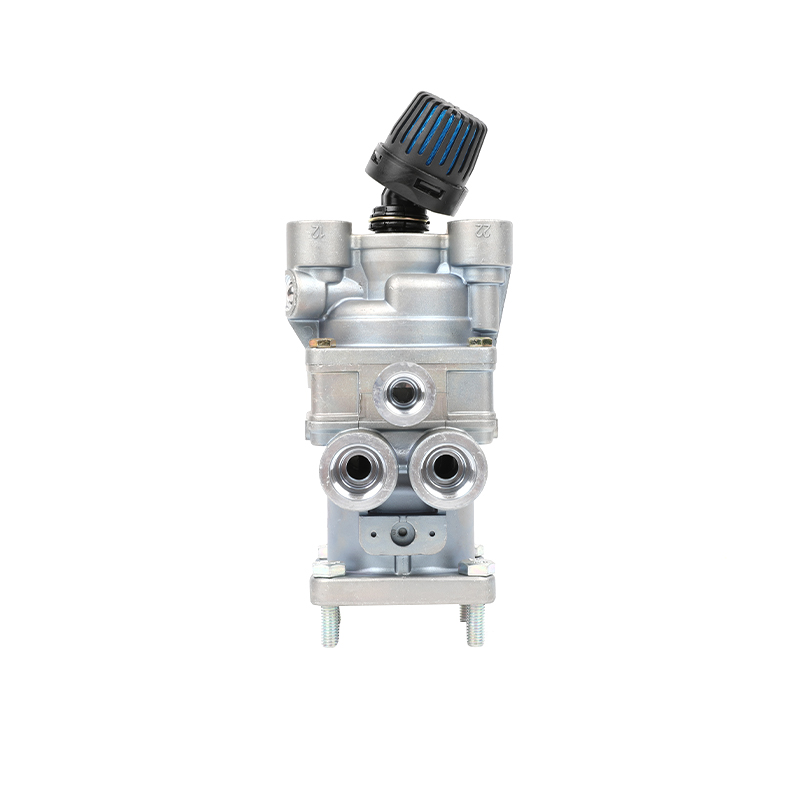

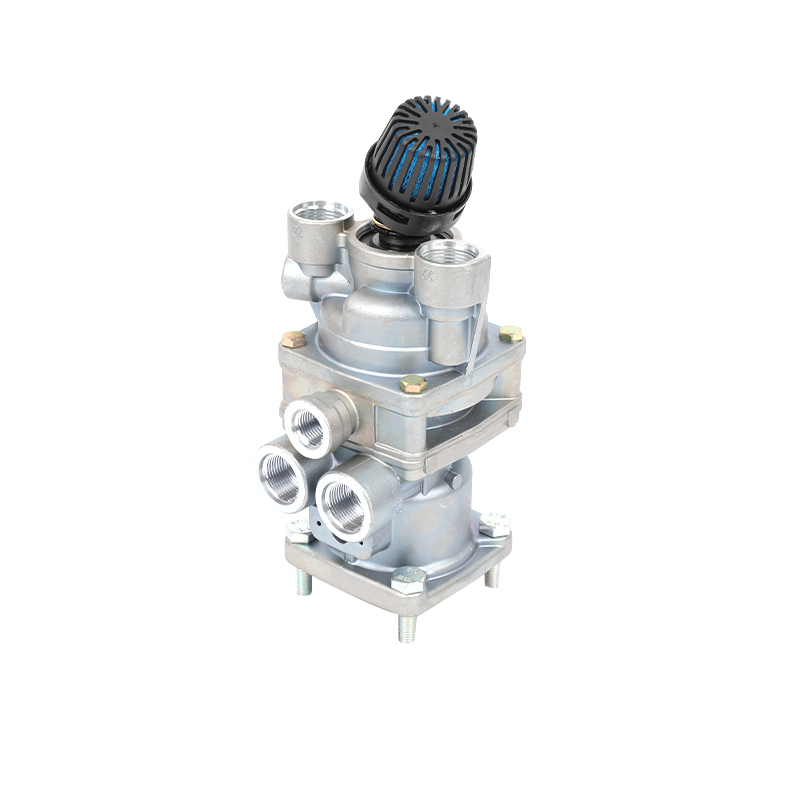

4613192740 Max. operating pressure147.94 psi foot brake valve

Details
Type of vehicle
Leave a message

How does an air brake foot valve work?
When the brake pedal is depressed, air flows from the primary reservoir and through the primary portion of the dual-control foot valve to actuate the rear axle brakes. Meanwhile, air flows from the secondary reservoir, through the secondary portion of the dual-control foot valve, to actuate the front axle brakes.

Distance between holes:	61.0 x 61.0 mm
Exhaust:	Silencer
Max. operating pressure:	10.2 bar
Mounting:	4x M8
Port thread 11:	M22 x 1.5
Port thread 12:	M22 x 1.5
Port thread 21:	M22 x 1.5
Port thread 22:	M22 x 1.5
Port thread 3:	Silencer
Port thread 4:	M16x1.5 JED - 388
Predominance:	0.50 bar
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	2.4364
Size (mm x mm x mm):	107 x 230 x 99
Weight (kg):	1.453
Weight (lb):	3.2033
Application:	MERCEDES-BENZ,DAF, EVOBUS, PACCAR

If you want to know us, please contact us!

We always adhere to the quality policy of "innovation is infinity, to keep improving", adhering to the enterprise tenet of "veracity, customer regarded supreme".
- Company.
- E-mail*.
- Name*.
- Phone*.
- Message*.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 4613192740 Max. operating pressure147.94 psi foot brake valve Supplier and Custom 4613192740 Max. operating pressure147.94 psi foot brake valve Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
