The Working Principle of Pressure Limiting Valves and Their Applications

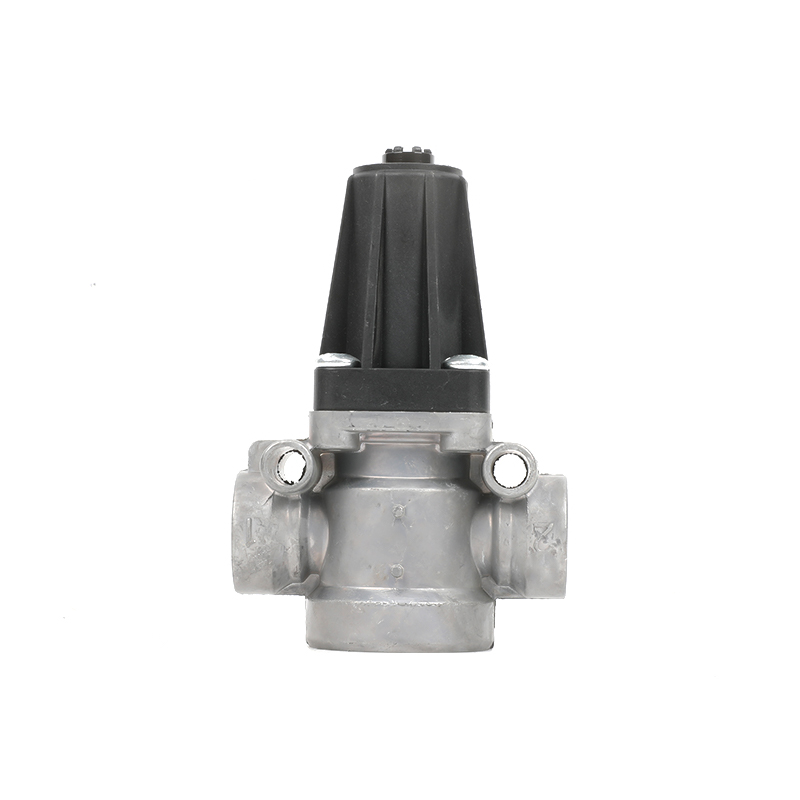

Pressure limiting valves
are devices used to control and limit pressure in hydraulic systems. They work by regulating the pressure of hydraulic fluid in a system, preventing it from exceeding a certain predetermined level. These valves are typically used in hydraulic systems that operate at high pressure to ensure safe and efficient operation.
The working principle of pressure limiting valves involves a spring-loaded valve that opens or closes in response to changes in fluid pressure. When the pressure in the hydraulic system exceeds a certain level, the valve opens, allowing fluid to escape and reducing the pressure. As the pressure drops, the spring-loaded valve closes, preventing any further fluid from escaping.
The primary function of pressure limiting valves is to protect the hydraulic system from overpressure, which can cause damage to the system and its components. By limiting the pressure in the system, these valves ensure safe and efficient operation.
There are several types of pressure limiting valves available, including relief valves, pressure reducing valves, and sequence valves. Relief valves are the most common type and are used to protect the system from overpressure. Pressure reducing valves are used to reduce pressure in a system to a set level. Sequence valves are used to ensure that certain operations occur in a specific order.
Pressure limiting valves are commonly used in a wide range of applications, including hydraulic presses, machine tools, and other industrial machinery. They are also used in automotive systems, such as braking systems and power steering systems. In addition, pressure limiting valves are used in aircraft hydraulic systems, where the safe operation of the aircraft depends on precise pressure control.
Understanding Pressure Limiting Valves: Functions and Features
Pressure limiting valves
are devices that are designed to control the pressure of a fluid in a system, such as in hydraulic systems or gas pipelines. These valves function by restricting the flow of fluid through the system when the pressure exceeds a predetermined limit. The following are some of the functions and features of pressure limiting valves:
Pressure regulation: The primary function of a pressure limiting valve is to regulate the pressure of the fluid in a system. These valves maintain a stable pressure by restricting the flow of fluid when the pressure exceeds a certain limit.
Protection: Pressure limiting valves are used to protect the system from damage caused by excessive pressure. They prevent equipment failure, leaks, and other issues that can occur when the pressure in a system is too high.
Safety: Pressure limiting valves also serve as a safety feature in hydraulic systems. They prevent the pressure from reaching dangerous levels, which can cause accidents and injuries.
Easy installation: Pressure limiting valves are easy to install in hydraulic systems. They are available in various sizes and can be customized to fit specific applications.
Adjustable pressure limit: Pressure limiting valves can be adjusted to maintain a specific pressure range. This feature allows for greater flexibility in system design and operation.
Automatic operation: Many pressure limiting valves are designed to operate automatically, without the need for human intervention. This feature ensures that the system operates safely and efficiently at all times.
Long service life: Pressure limiting valves are designed to be durable and reliable. They are made from high-quality materials that can withstand the demands of harsh operating conditions.
Overall, pressure limiting valves are essential components in hydraulic and other fluid-based systems. They ensure that the system operates safely and efficiently, protecting equipment and personnel from harm.
