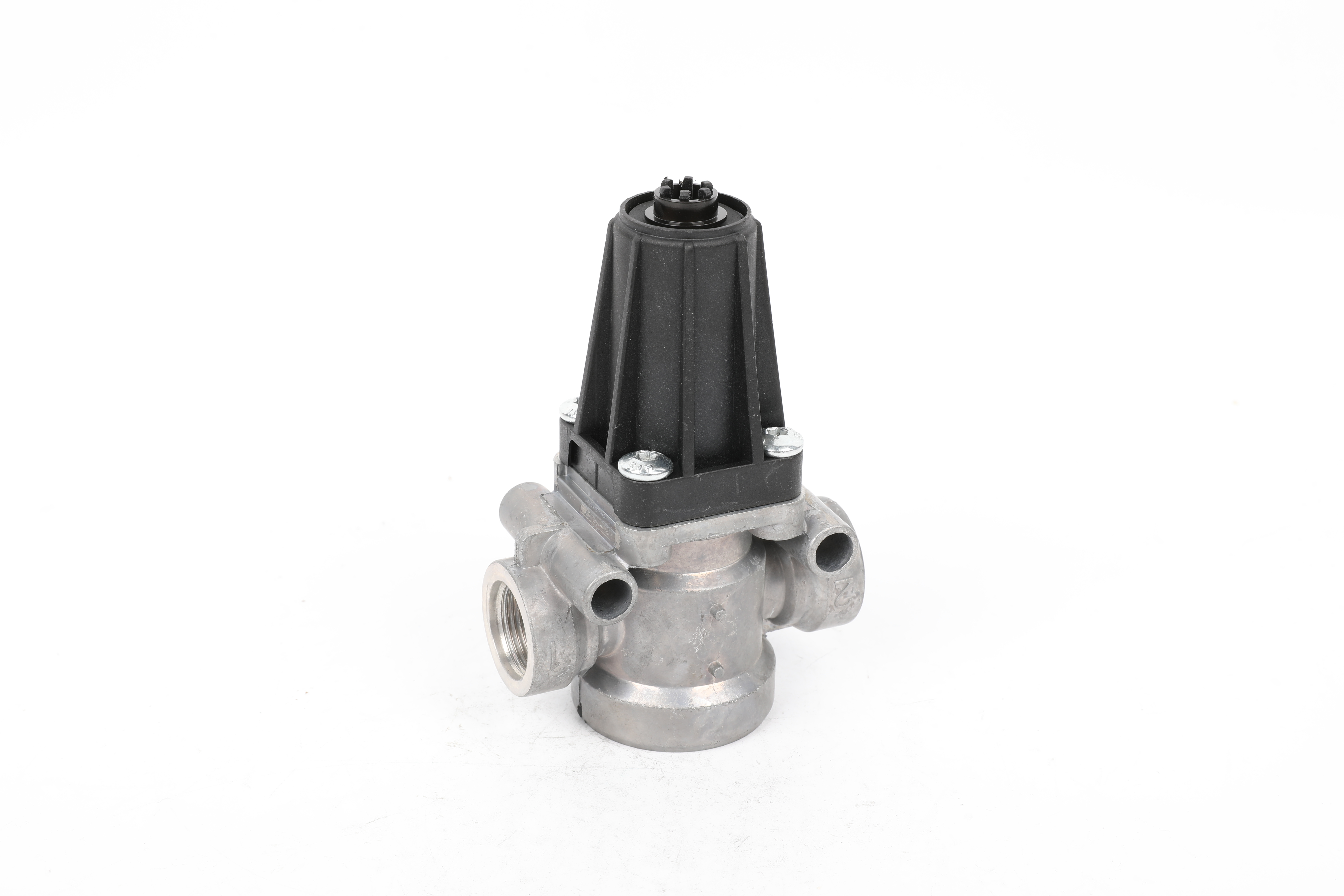

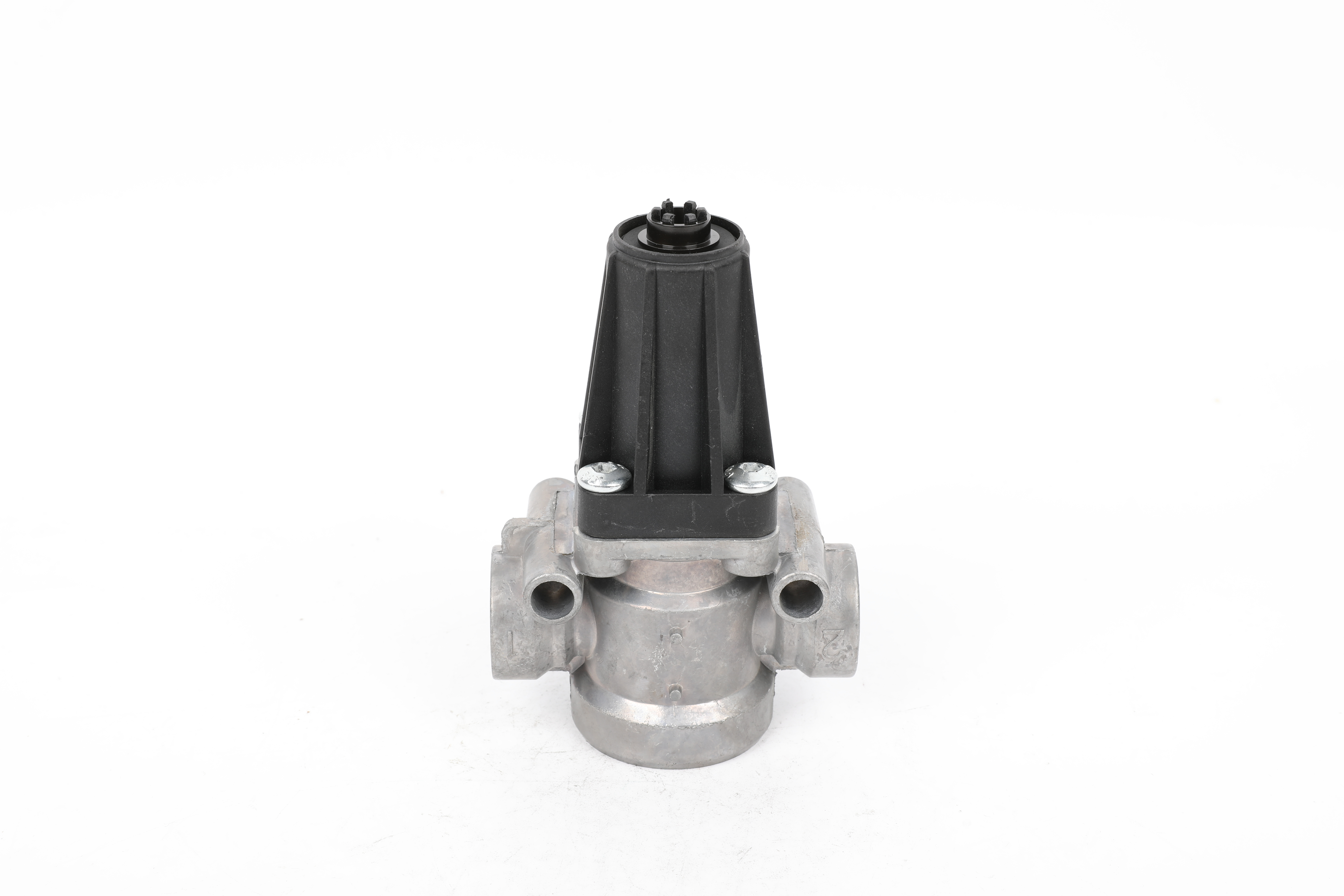

4750103170 Delivered pressure 6.5 at p1 = 12.0 bar for daf,benz pressure limiting valve Wholesale

4750103170 Delivered pressure 6.5 at p1 = 12.0 bar for daf,benz pressure limiting valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Pressure-limiting valves are a type of pressure control valve. They safeguard the system against excessive system pressure or limit the operation pressure. Pre-load valves, also called sequence valves are a type of pressure control valve.

    Comments:

    Nominal diameter of exhaust ø 4

    Delivered pressure:

    6.5 at p1 = 12.0 bar

    Distance between bolts:

    56.0 mm

    Exhaust:

    Ø 4 mm

    Max. operating pressure:

    20.0 bar

    Mounting:

    2x Ø 8.6 mm

    Port thread 1:

    M22 x 1.5 JED-388

    Port thread 2:

    M22 x 1.5 JED – 152

    Port threads:

    M22 x 1.5 VOSS

    Range of adjustment:

    5.8 to 10.8 bar

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    0.51493

    Size (mm x mm x mm):

    47 x 83 x 132

    Weight (kg):

    0.364

    Weight (lb):

    0.80248

    Application:

    DAF,MAN,MERCEDES-BENZ,NEOPLAN,OTOKAR,PACCAR

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 4750103170 Delivered pressure 6.5 at p1 = 12.0 bar for daf,benz pressure limiting valve Supplier and Custom 4750103170 Delivered pressure 6.5 at p1 = 12.0 bar for daf,benz pressure limiting valve Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
