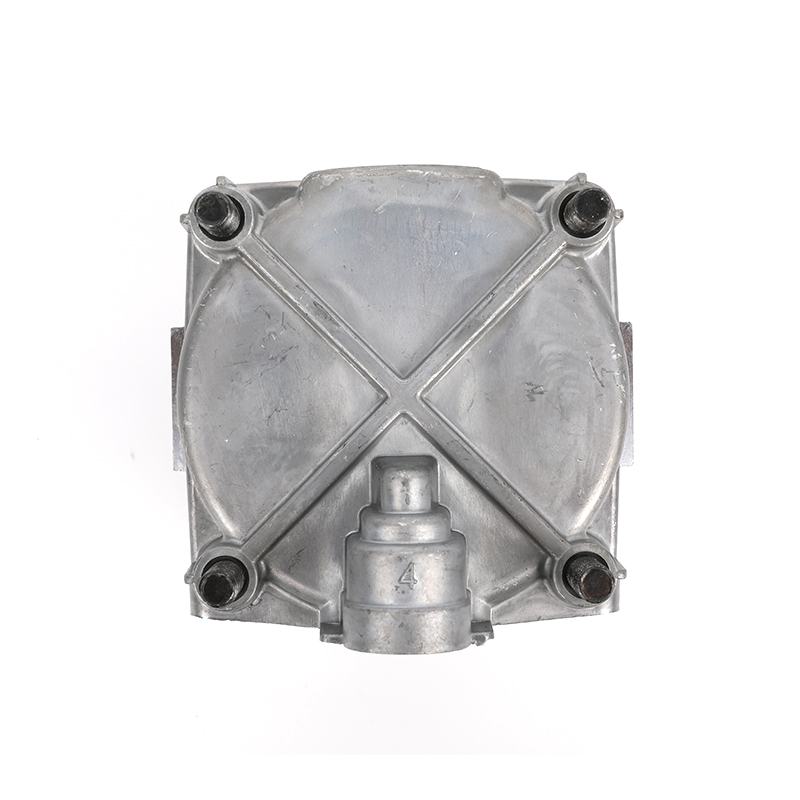

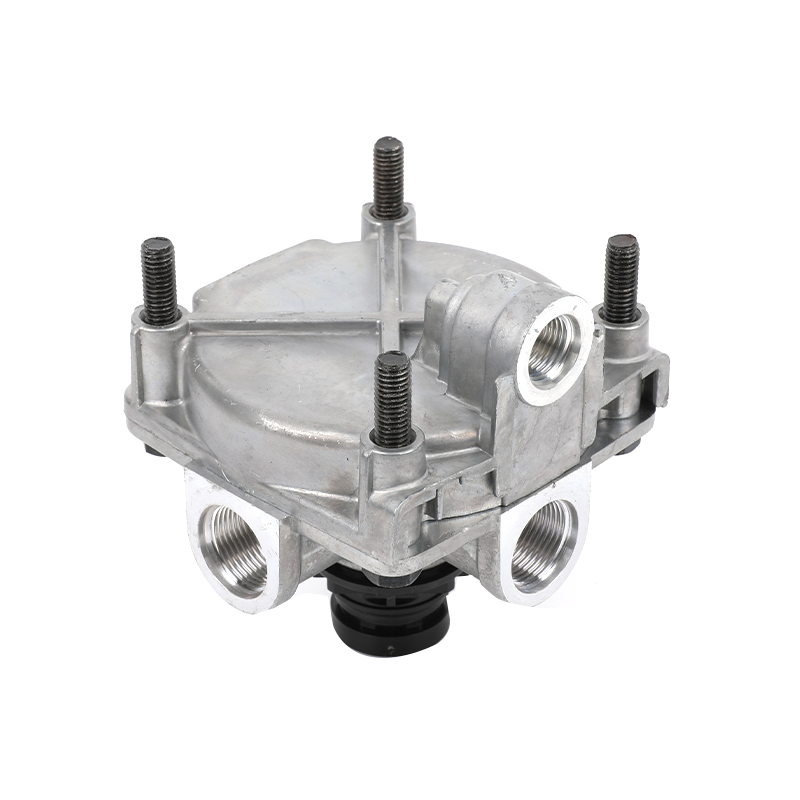

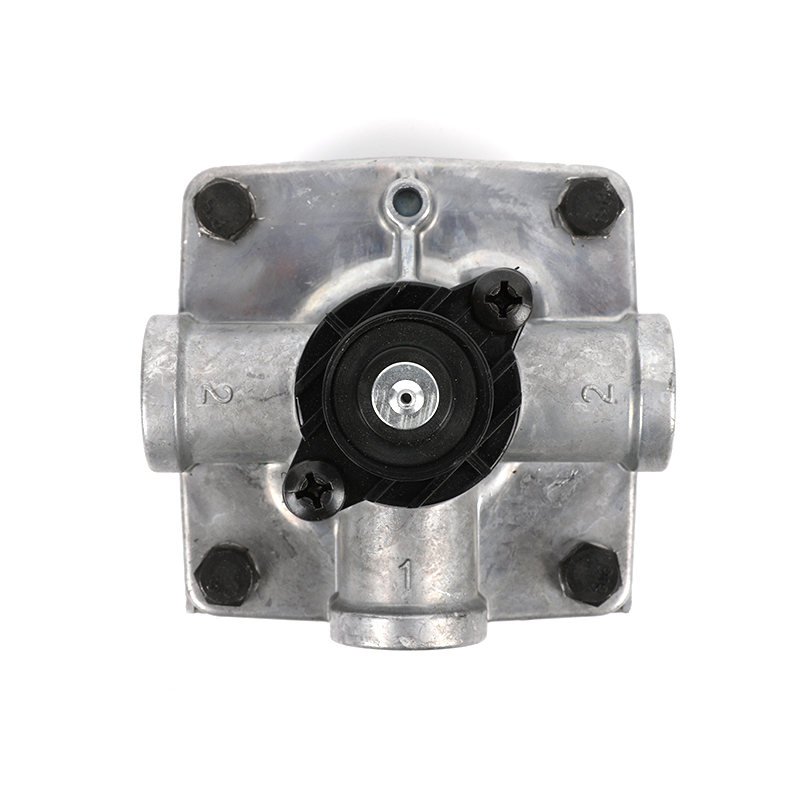

9730110000 Application daf,mercedes trailer relay valves Custom

9730110000 Application daf,mercedes trailer relay valves

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • How does a relay valve work?
    In a truck's air brake system, relay valves get a signal when a driver presses the treadle, which then opens the valve and allows air to enter the brake chamber via air inlet. The diaphragm gets pushed, then the rod, then the slack adjuster which twists to turn the brake camshaft.

    Mounting:

    4x M8

    Opening pressure:

    0.2 bar

    Port thread 1:

    M22 x 1.5

    Port thread 2:

    2x M22 x 1.5

    Port thread 3:

    JED-463

    Port thread 4:

    M16 x 1.5

    Pressure:

    0.20 bar

    Regulating ratio:

    1:1

    Temperature range:

    -40°C to +80°C

    Version:

    Pressure reduction

    Calculated Volume (dm³):

    1.132

    Size (mm x mm x mm):

    101 x 101 x 111

    Application:

     Daf,Mercedes,Man,Iveco,Volvo,Renault,Neoplan,Scania

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9730110000 Application daf,mercedes trailer relay valves Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
