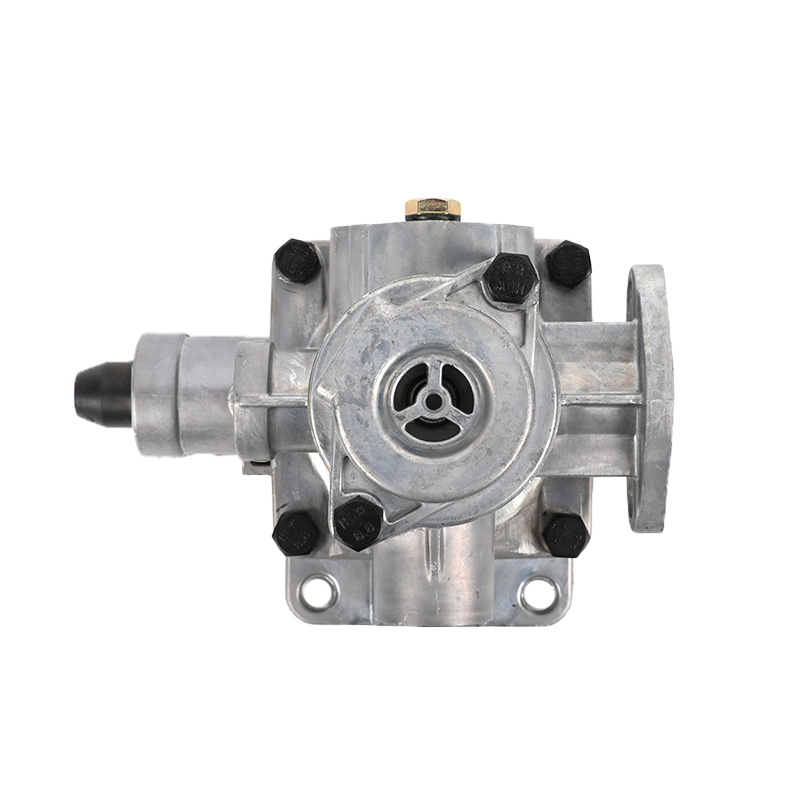

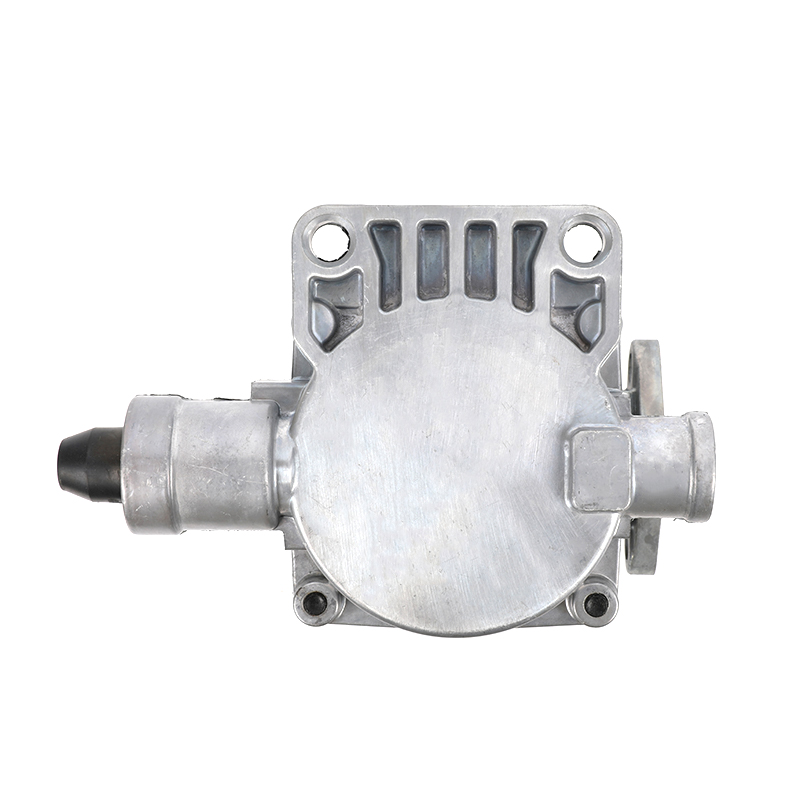

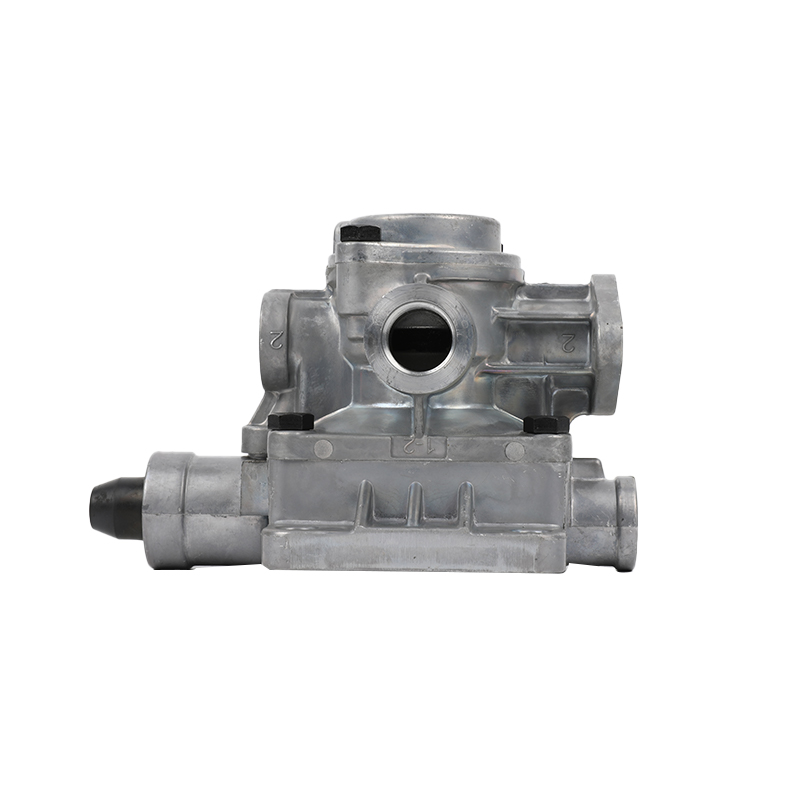

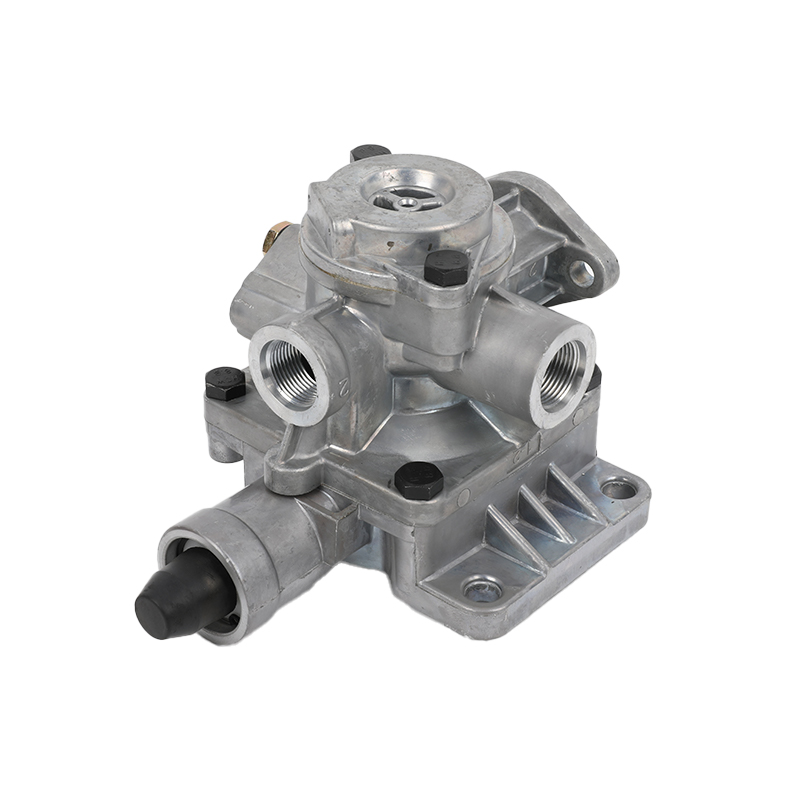

9710021500 Mounting:2x ø 11.0 mm relay emergency valve Custom

9710021500 Mounting:2x ø 11.0 mm relay emergency valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is the emergency relay valve?
    The relay emergency valve has a one-way check valve that stops air in the reservoir from going back to the source of the supply. The driver has opened the trailer-supply valve to allow main-reservoir air pressure to be directed through the tractor protection valve to the trailer.

    Technical Specification: OE specification
    Adjustable Predominance: Adjustable: 0 to 1 bar
    Comments:Alternative:  971 002 300 0 is the same except without flange for manual LSV
    Distance between holes: 71.0 mm
    Distance between holes: 71.0 mm
    Max. operating pressure: 10.0 bar
    Mounting: 2x Ø 11.0 mm
    Port thread 1: M22 x 1.5
    Port thread 12: M22 x 1.5
    Port thread 2: 2x M22 x 1.5
    Port thread 3: Flap Exhaust
    Port thread 4: M22 x 1.5
    Range of adjustment: 1 bar
    Temperature range: -40°C to +80°C
    Type: Only Emergency valve
    Calculated Volume (dm³): 2.8053
    Size (mm x mm x mm): 184 x 126 x 121
    Weight (kg): 1.462
    Weight (lb): 3.2232
    Application:  Feldbinder,Freightliner, Fruehauf,Goldhofer,Hendrickson,John Deere,Kempf,Kenworth, Man,Meritor,Neoplan,Nippon Fruehauf, Daf,Dimetal,Faymonville
