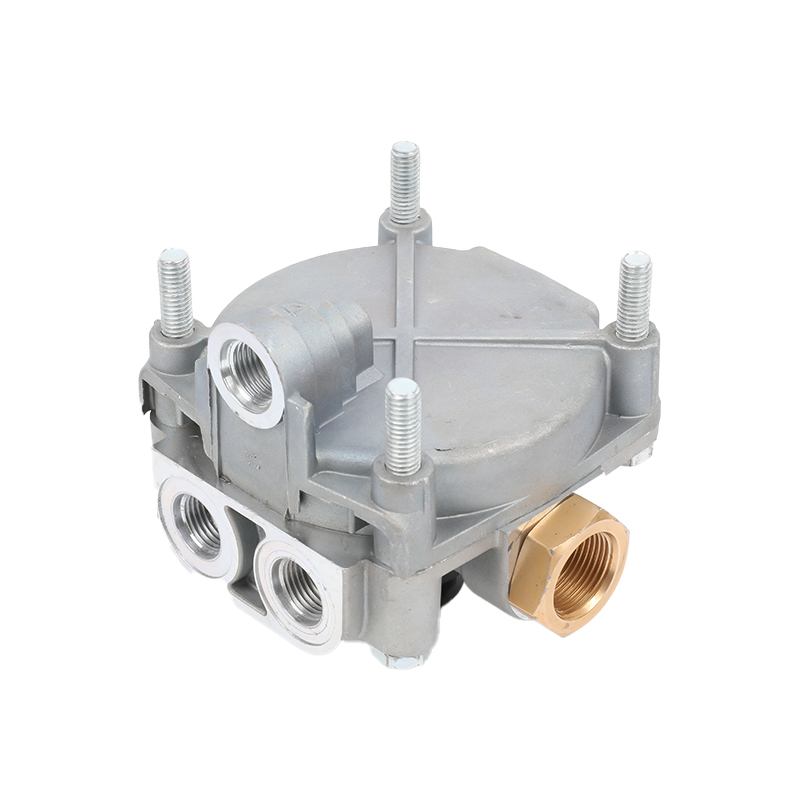

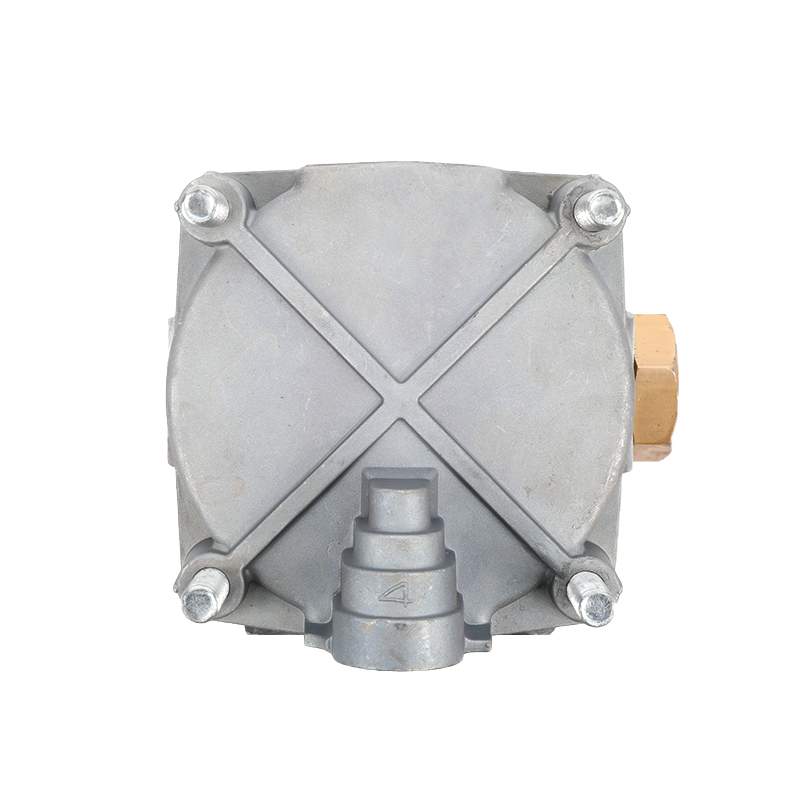

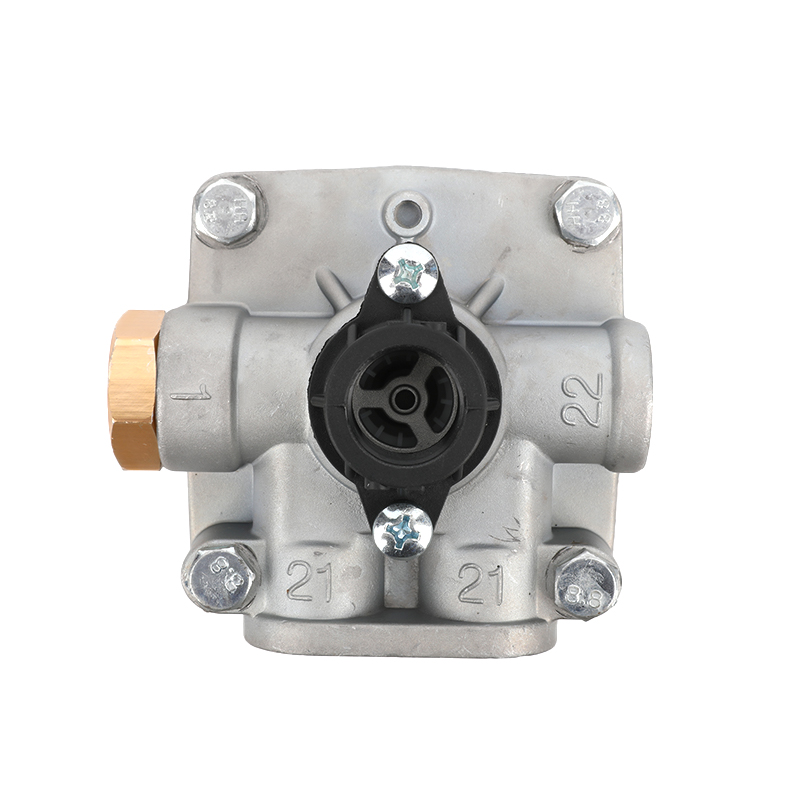

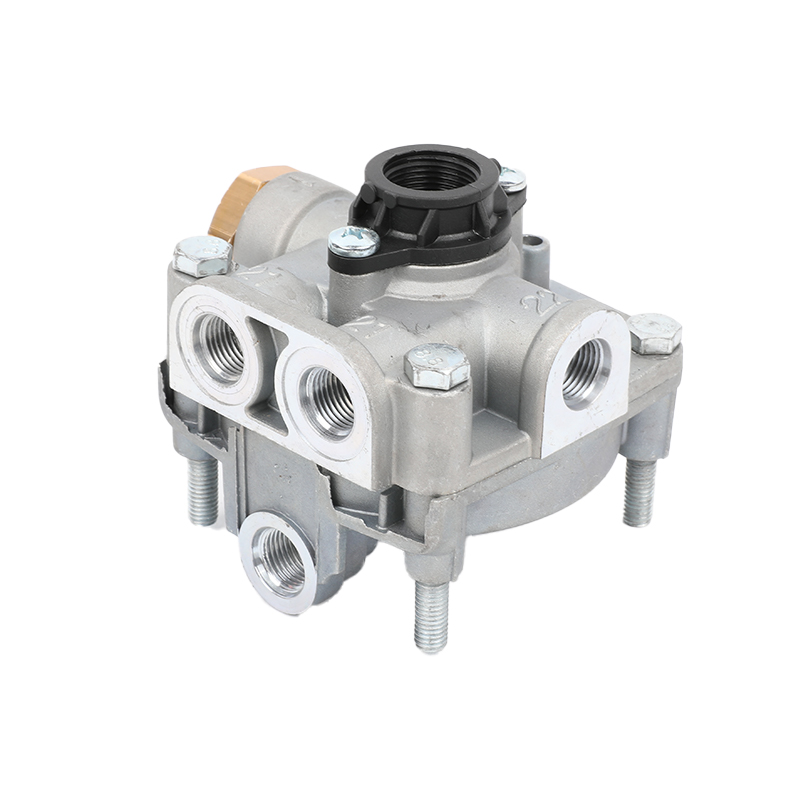

9730110500 Max. operating pressure:13.0 bar pressure reduction relay valve Custom

9730110500 Max. operating pressure:13.0 bar pressure reduction relay valve

9730110500 Max. operating pressure:13.0 bar pressure reduction relay valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is the purpose of a relay valve?
    A relay valve is an air-operated valve typically used in air brake systems to remotely control the brakes at the rear of a heavy truck or semi-trailer in a tractor-trailer combination.

    Comments：

    Relay Valve With integral Non Return Valve

    Exhaust：

    Snap on contour JED - 463

    Max. operating pressure：

    13.0 bar

    Mounting：

    4x M8

    Port thread 1：

    M22 x 1.5 JED-152

    Port thread 21：

    2x M16 x 1.5 JED - 152

    Port thread 22：

    M16 x 1.5 JED - 152

    Port thread 3：

    M22 x 1.5

    Port thread 4：

    M16 x 1.5 JED - 152

    Predominance：

    1.00 bar

    Regulating ratio：

    11

    Temperature range：

    -40°C to +80°C

    Version：

    Pressure reduction

    Calculated Volume (dm³)：

    1.076

    Size (mm x mm x mm)：

    101 x 111 x 96

    Weight (kg)：

    0.77

    Weight (lb):

    1.6976

    Application:

    DAF,MAN,PACCAR,SCANIA

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9730110500 Max. operating pressure:13.0 bar pressure reduction relay valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
