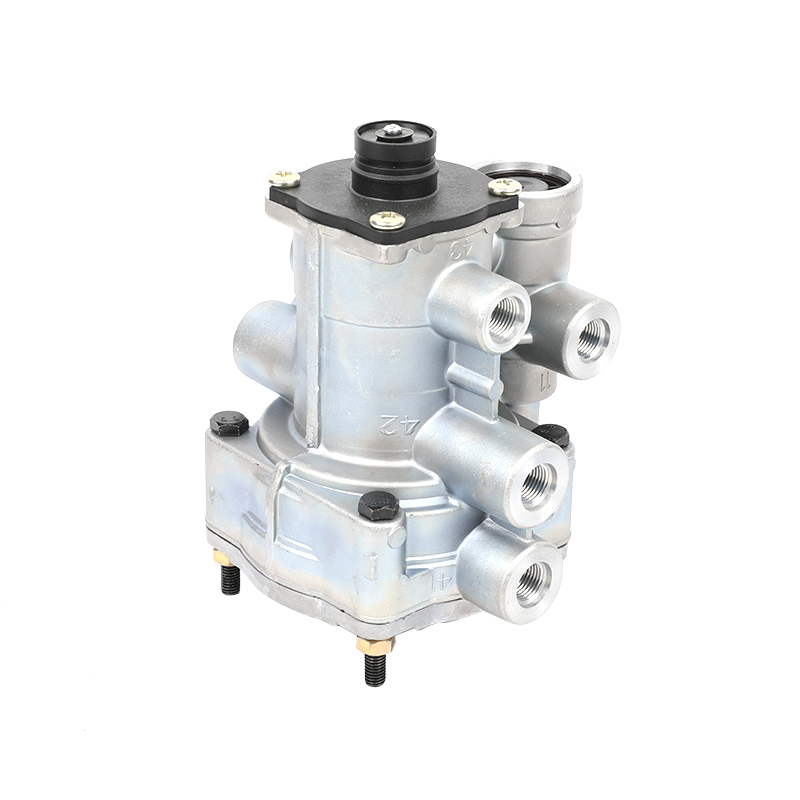

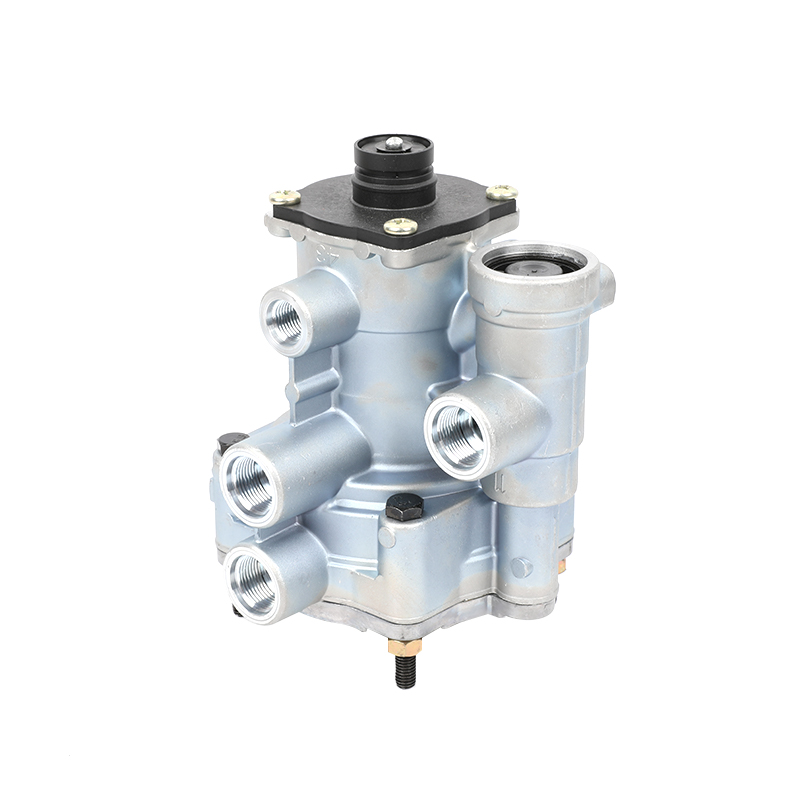

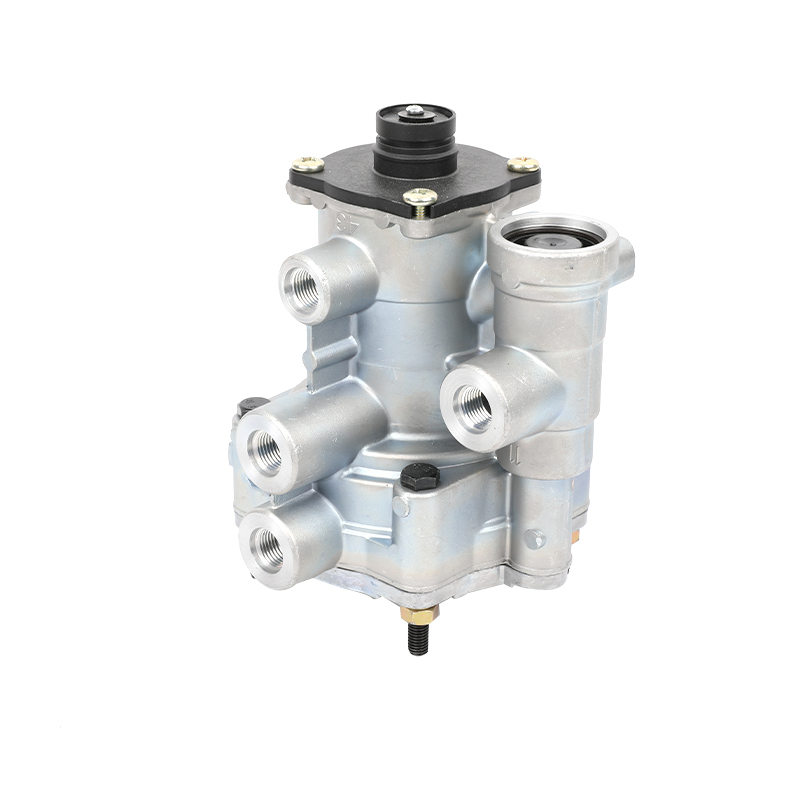

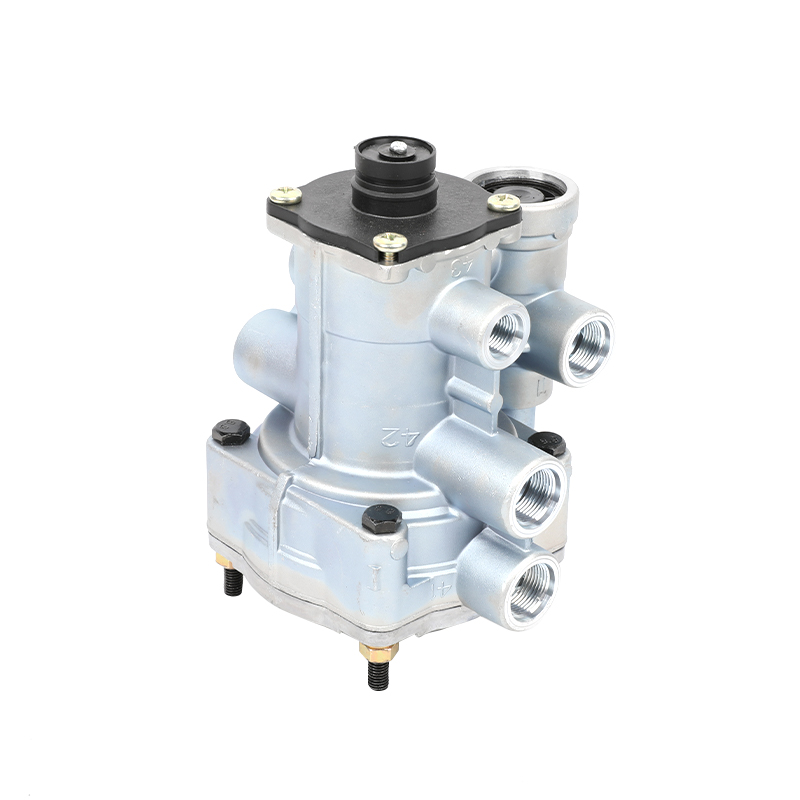

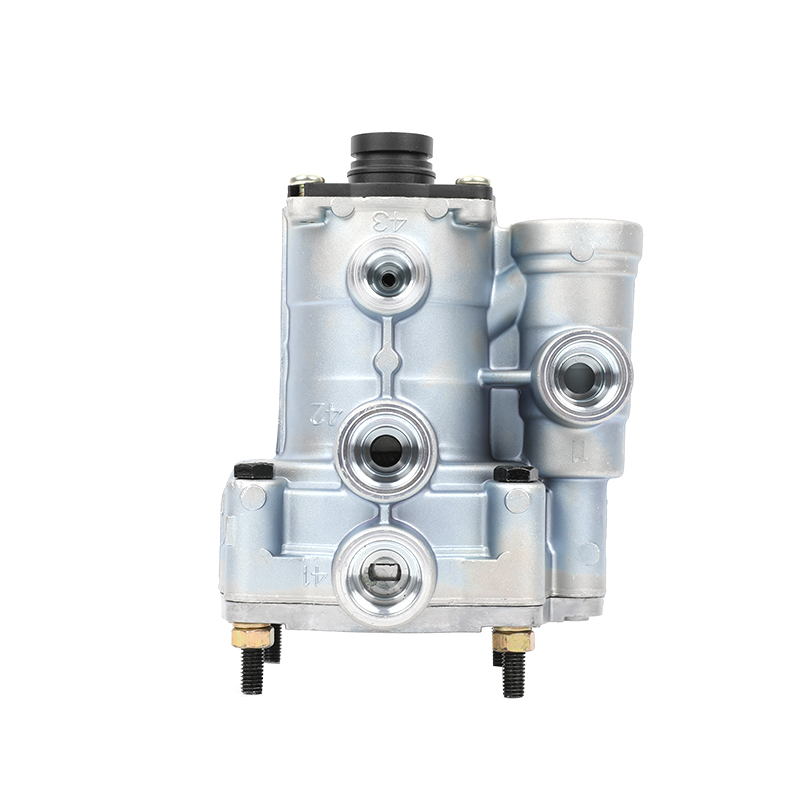

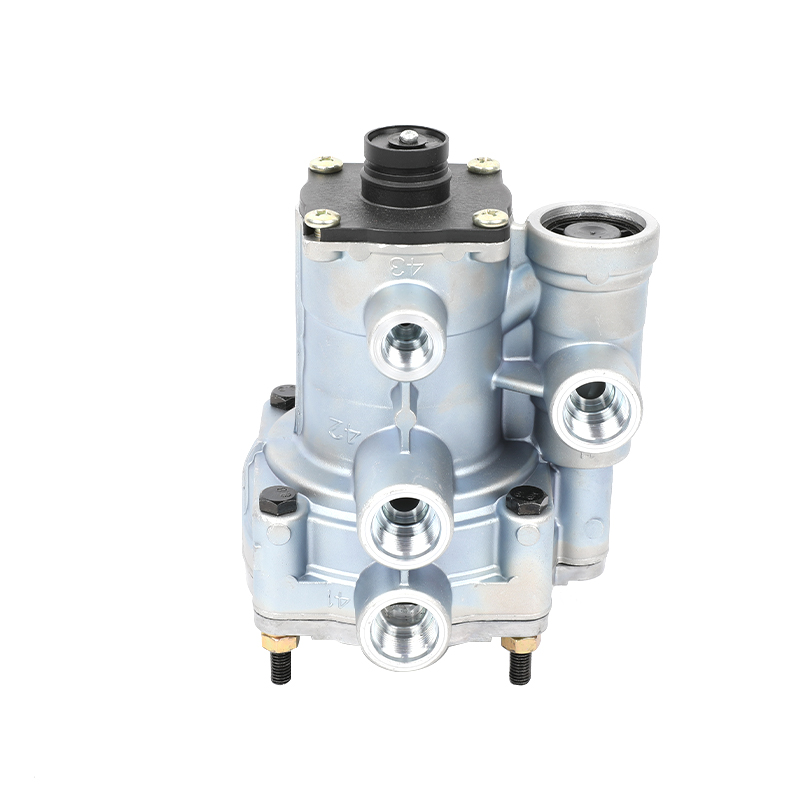

9730090100 Exhaust:silencer for agrale,daf,freightliner trailer control valve Custom

9730090100 Exhaust:silencer for agrale,daf,freightliner trailer control valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Where is the trailer control valve?
    The most common vehicle application is the independent control of the trailer's service brakes on a tractortrailer combination. Typically, the TC7 valve is mounted either inside the steering column or clamped to the exterior of the column.

    Distance between bolts:

    85.0 x 85.0 mm

    Exhaust

    Silencer

    Max. operating pressure

    8.5 bar

    Mounting

    4x M8

    Multi Nominal diameter (From Port 1 to x)

    9 mm

    Port thread 11

    M16 x 1.5

    Port thread 12

    M16 x 1.5

    Port thread 22

    M16 x 1.5

    Port thread 41

    M16 x 1.5

    Port thread 42

    M16 x 1.5

    Port thread 43

    M16 x 1.5

    Predominance

    0.40 bar

    Temperature range

    -40°C to +80°C

    Calculated Volume (dm³)

    4.038

    Size (mm x mm x mm)

    209 x 139 x 139

    Weight (kg)

    2.164

    Weight (lb):

    4.7708

    Application:

    AGRALE,DAF,FREIGHTLINER,KENWORTH,MACK,MAFI, MERITOR,PACCAR,PETERBILT,SCANIA,VDL,VOLVO

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9730090100 Exhaust:silencer for agrale,daf,freightliner trailer control valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
