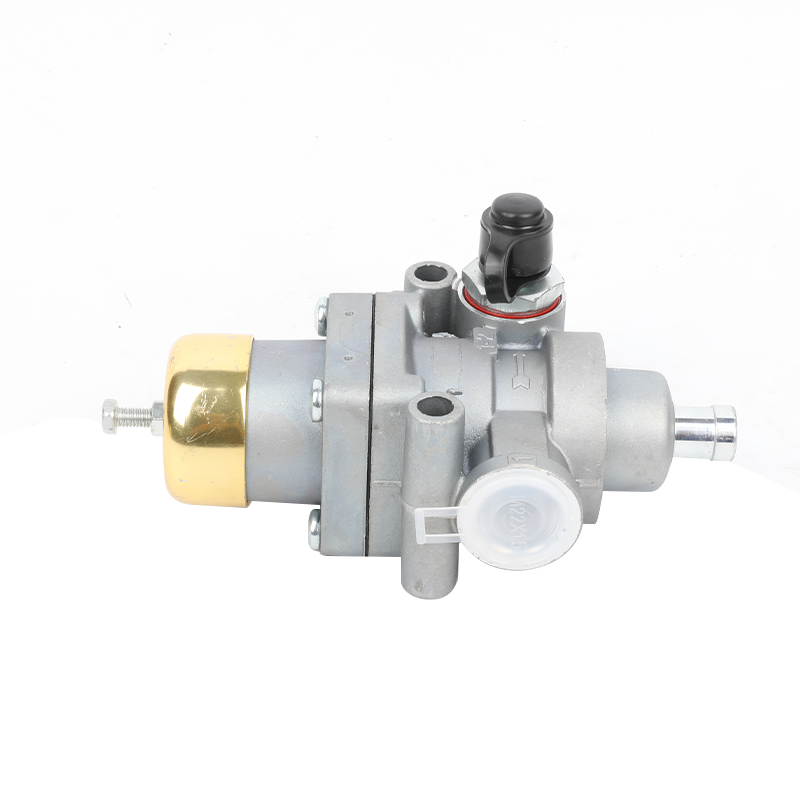

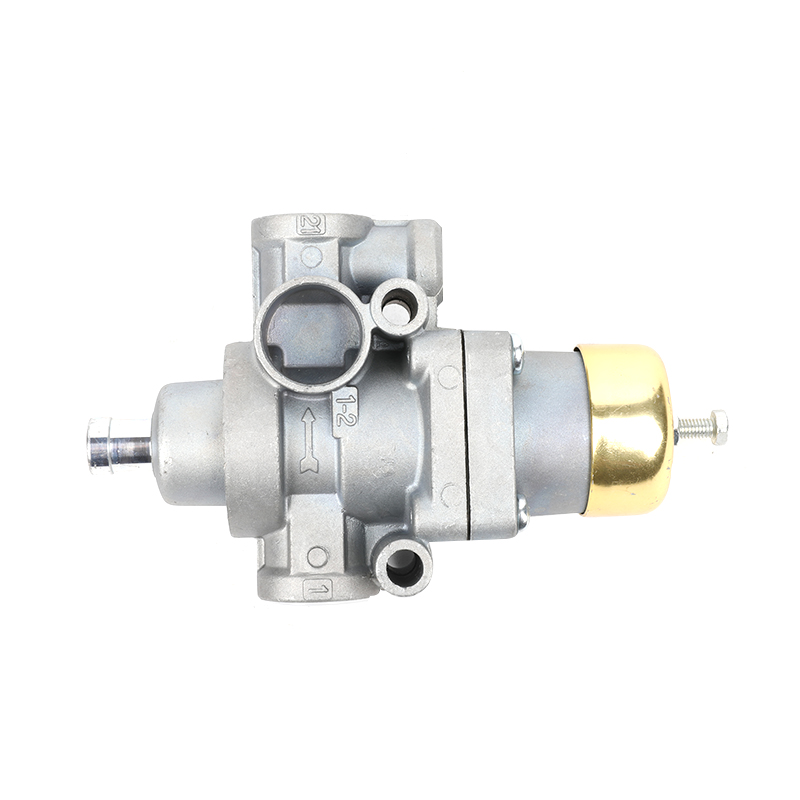

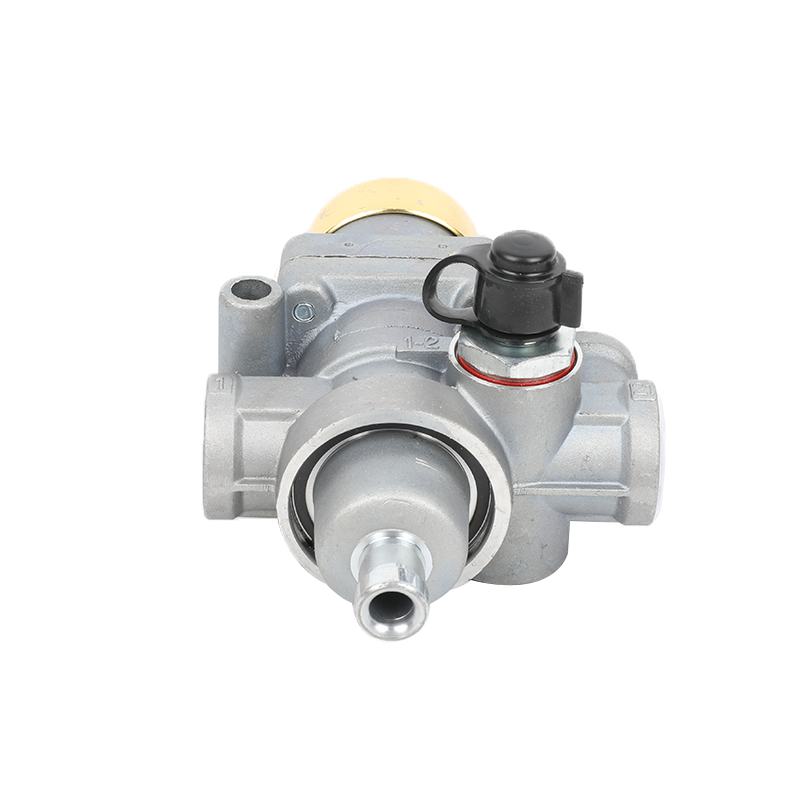

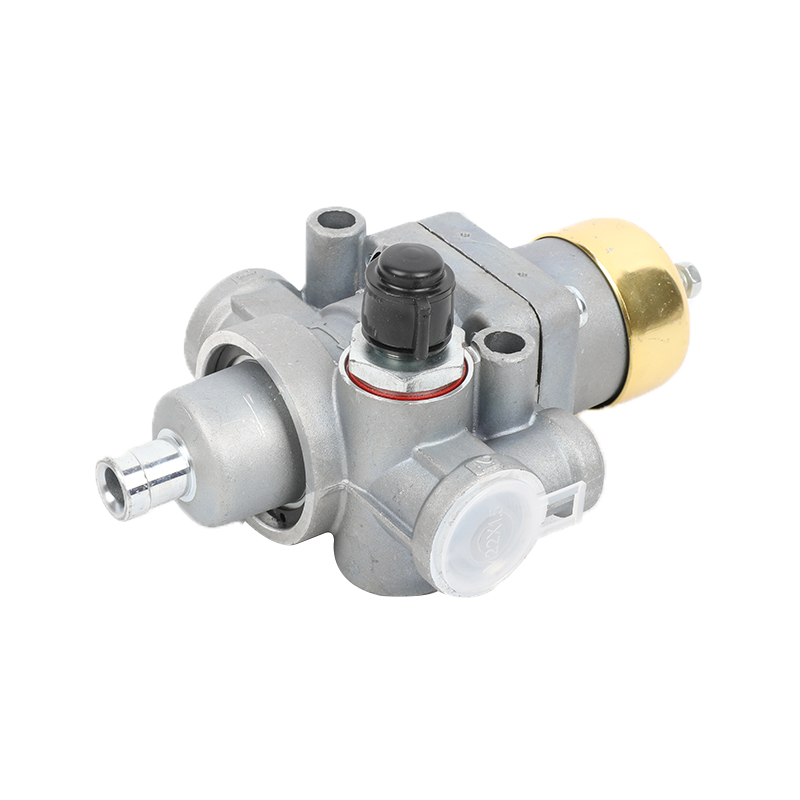

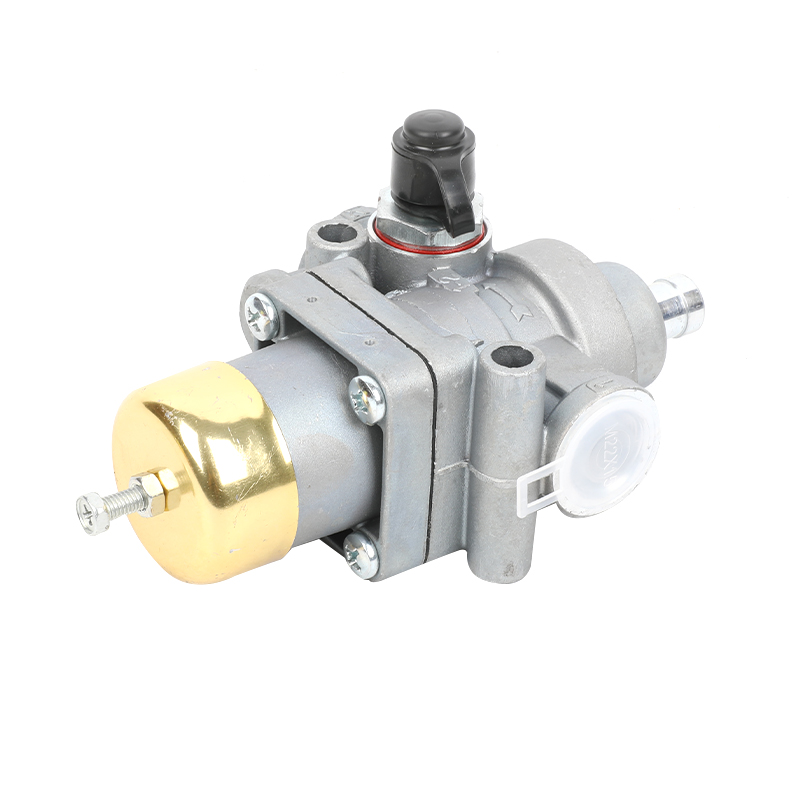

9753001100 Max. operating pressure:15.0 bar unloader valve Custom

9753001100 Max. operating pressure:15.0 bar unloader valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is an unloader valve?
    What Is the Unloader Valve? A compressor unloader valve is a small part, typically measuring approximately 4-5 inches in length and width. It performs the critical function of releasing trapped air inside the tank, enabling the motor to restart.

    Cut-out pressure:

    8.1±0.2 bar

    Max. operating pressure:

    15.0 bar

    Mounting:

    2x Ø 8.8 mm

    Operational range:

    0.6+0.4 bar

    Port Thread 1-2:

    Tyre inflation 1-2available (M16 x 1.5)

    Port thread 1:

    M22 x 1.5

    Port thread 21:

    M22 x 1.5

    Port thread 3:

    Union Ø 15 mm

    Port threads:

    M22 x 1.5

    Temperature range:

    -40°C to +150°C

    Type:

    With one way valve

    Version:

    With tire inflating valve

    Calculated Volume (dm³):

    2.742712

    Size (mm x mm x mm):

    172x134x119

    Weight (kg):

    1.035

    Application:

    For Goldhofer,Daf,Iveco, Ikarbus, Evobus, Dimetal

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9753001100 Max. operating pressure:15.0 bar unloader valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
