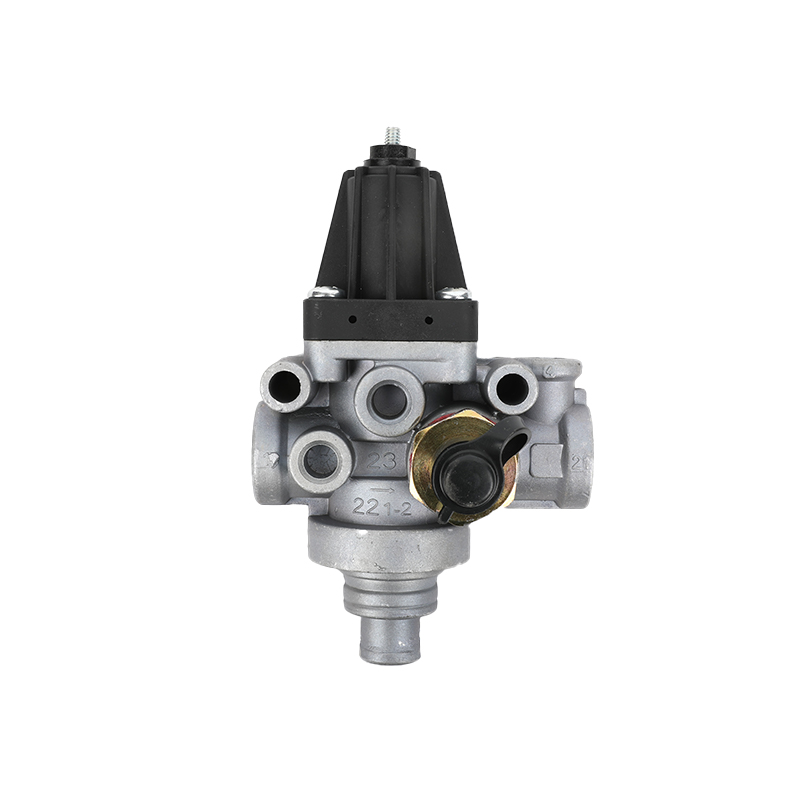

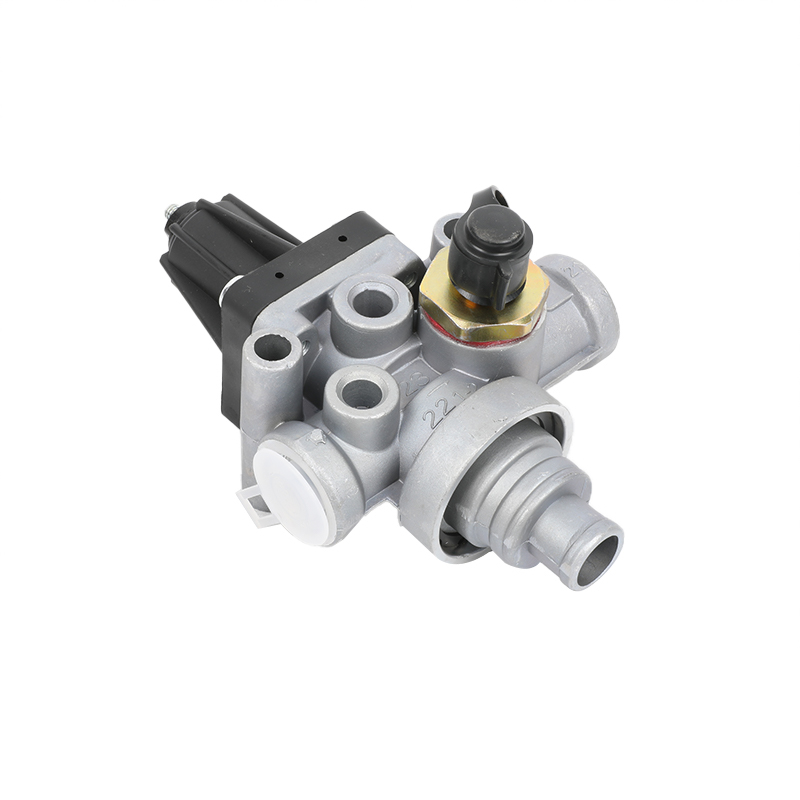

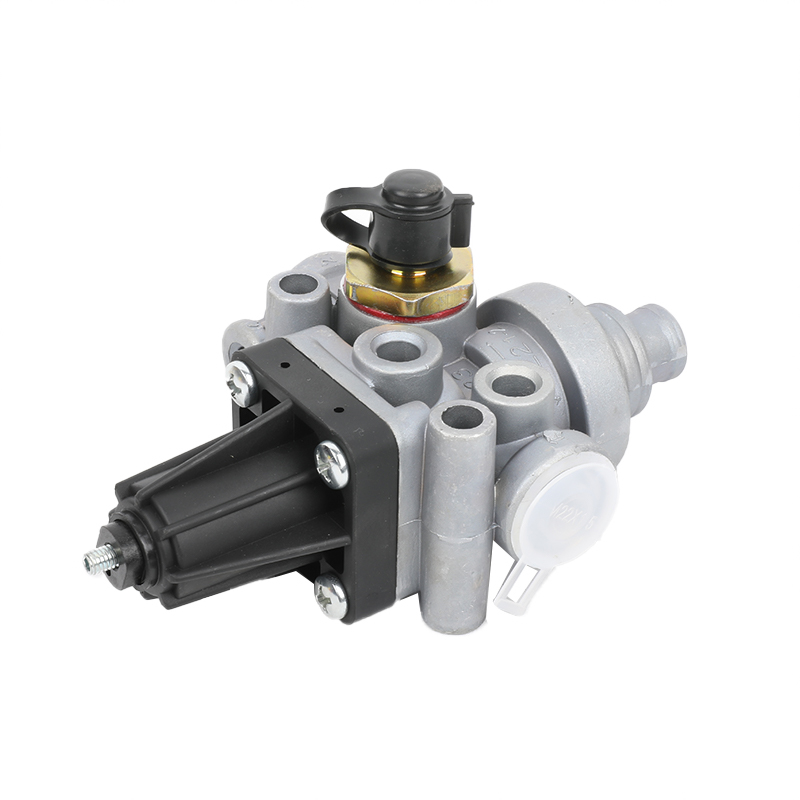

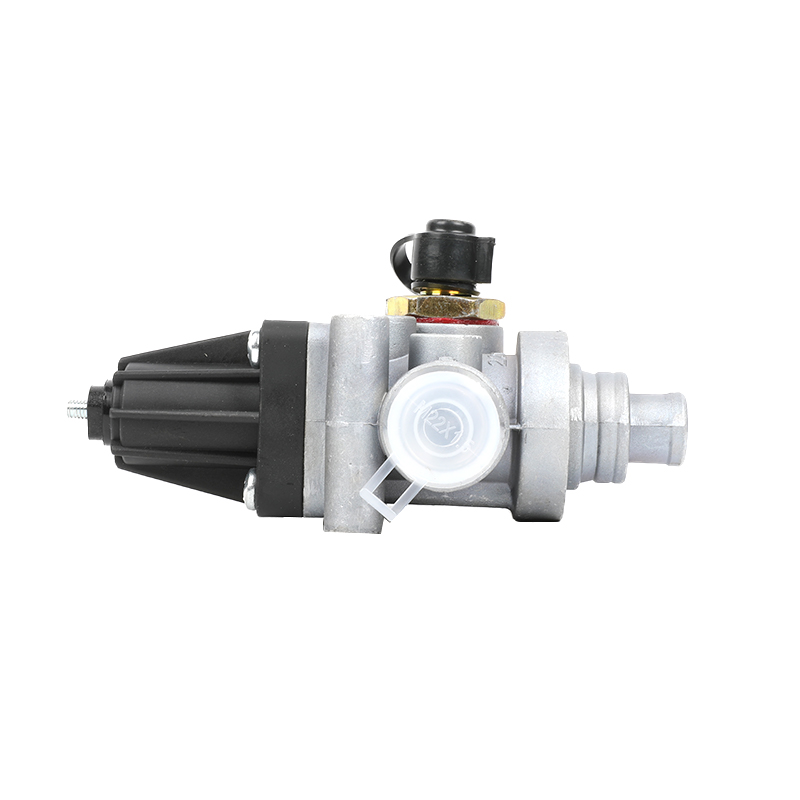

9753034730 Max. operating pressure:25.0 bar unlaoder valve Custom

9753034730 Max. operating pressure:25.0 bar unlaoder valve

9753034730 Max. operating pressure:25.0 bar unlaoder valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message

  • What is the purpose of unloader in main air compressor?
    An air compressor unloader valve is a device used by air compressors to release the trapped air inside the compression chamber and tank discharge line when the motor stops. This allows the motor to start up easier.

    Cut-out pressure:

    8.1 bar

    Max. operating pressure:

    25.0 bar

    Mounting:

    2x Ø 8.8 mm

    Opening pressure:

    12.0 bar

    Operational range:

    0.6+0.4 bar

    Port Thread 1-2:

    M16 x 1.5

    Port thread 1:

    M22 x 1.5

    Port thread 21:

    M22 x 1.5

    Port thread 22:

    M12 x 1.5

    Port thread 3:

    Union Ø 20 mm

    Port threads:

    M22 x 1.5

    Temperature range:

    -40°C to +80°C

    Type:

    With one way valve

    Version:

    With tire inflating valve

    Calculated Volume (dm³):

    1.6609

    Size (mm x mm x mm):

    169 x 108 x 91

    Weight (kg)

    0.746

    Weight (lb):

    1.6446

    Application:

     For Mercedes-Benz, Erf,Faun, Fendt,Faw, Neoplan, Meritor, Peterbilt, Renault, Scania

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9753034730 Max. operating pressure:25.0 bar unlaoder valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
