9617221500 With gaiter for iveco,daf hand brake valve Custom

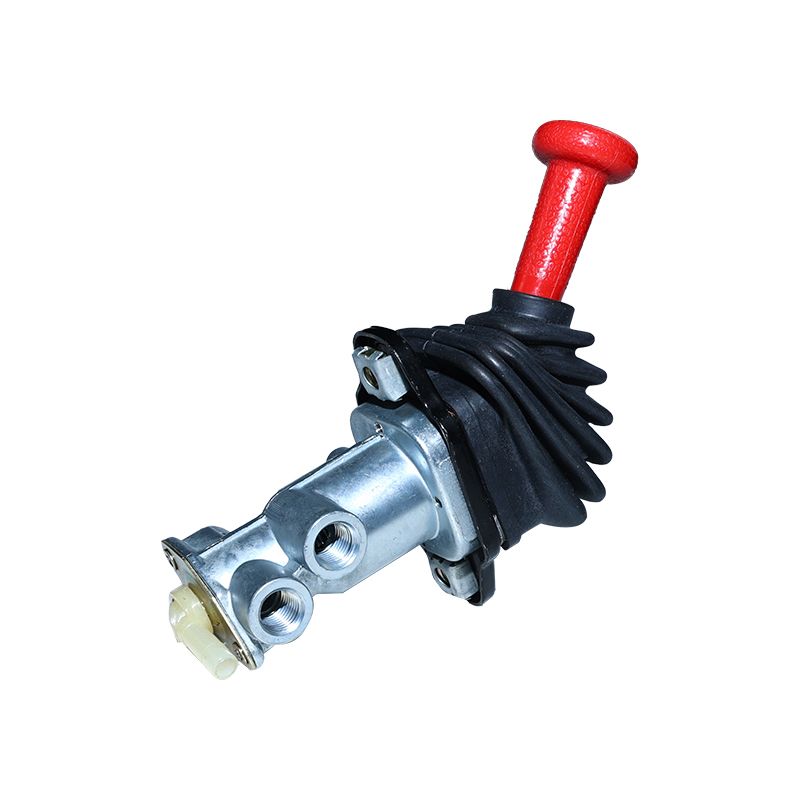

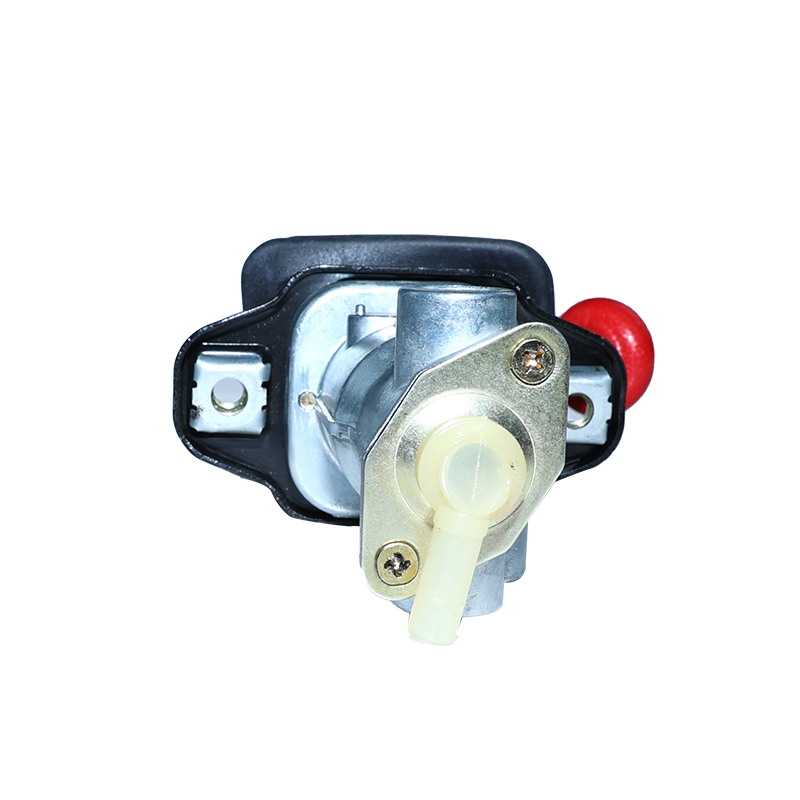

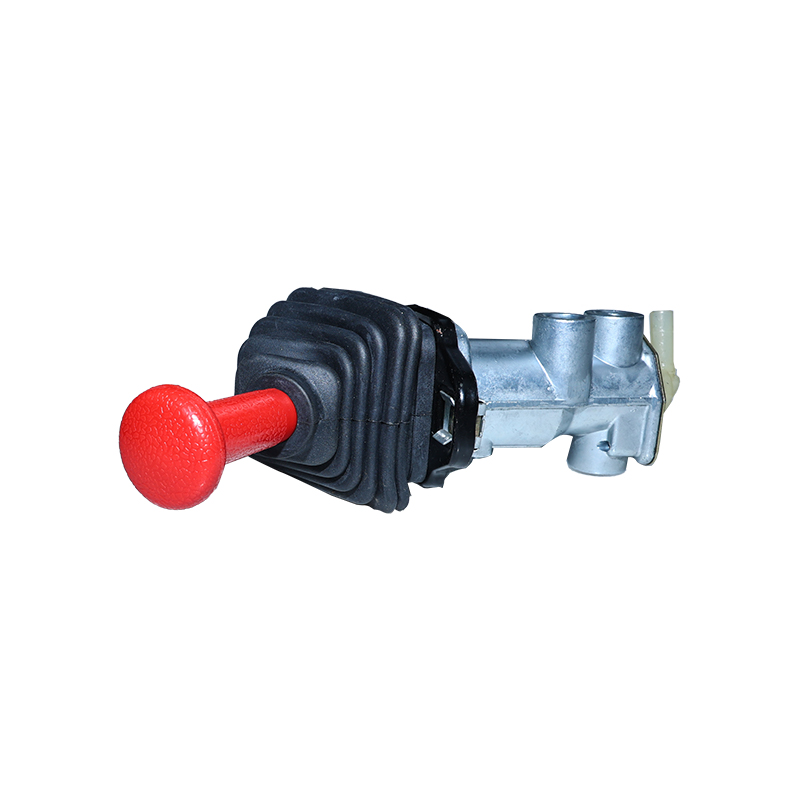

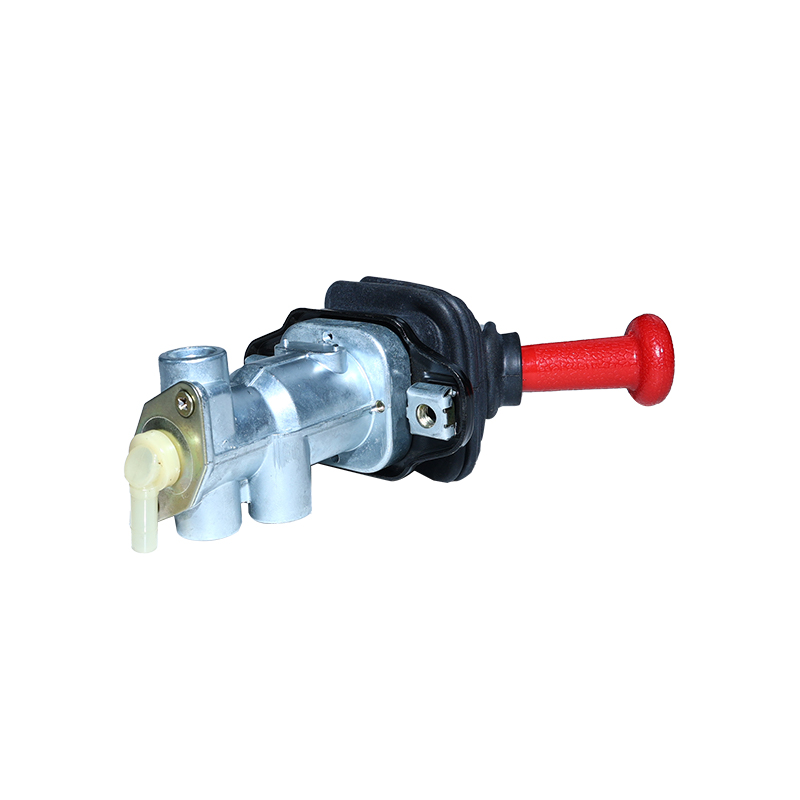

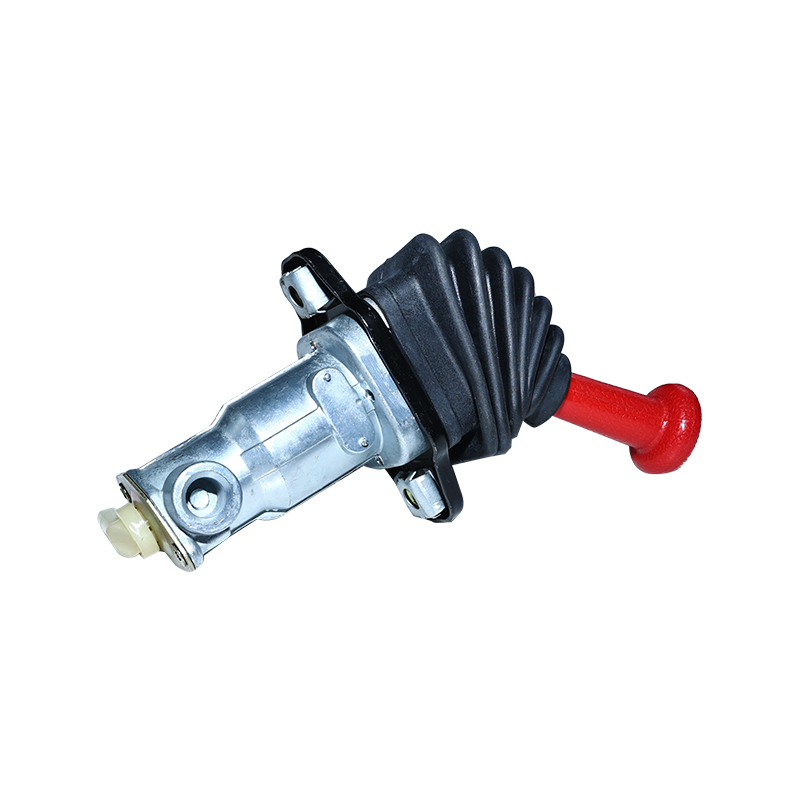

9617221500 With gaiter for iveco,daf hand brake valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • When should the hand valve be used?
    The trailer hand valve should be used only to test the trailer brakes. Do not use it in driving because of the danger of making the trailer skid. The foot brake sends air to all of the brakes on the vehicle (including the trailer[s]).

    Actuation angle:

    73°

    Color:

    Black/Black

    Comments:

     With gaiter

    Distance between holes:

    80.0 mm

    Exhaust:

    Hose Nozzle Ø 6.8 mm

    Max. operating pressure:

    10.0 bar

    Mounting:

    M8

    Port thread 1:

    M14 x 1.5

    Port thread 21:

    M14 x 1.5

    Port threads:

    M14 x 1.5

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    1.9968

    Size (mm x mm x mm):

    200 x 128 x 78

    Weight (kg):

    0.883

    Weight (lb):

     1.9467

    Application:

    ALEXANDER DENNIS, DAF, EVOBUS, FREIGHTLINER, IVECO, KENWORTH, LIEBHERR, MACK, MERCEDES-BENZ, MERITOR, PETERBILT, SCANIA, VAN HOOL, VOLVO

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9617221500 With gaiter for iveco,daf hand brake valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
