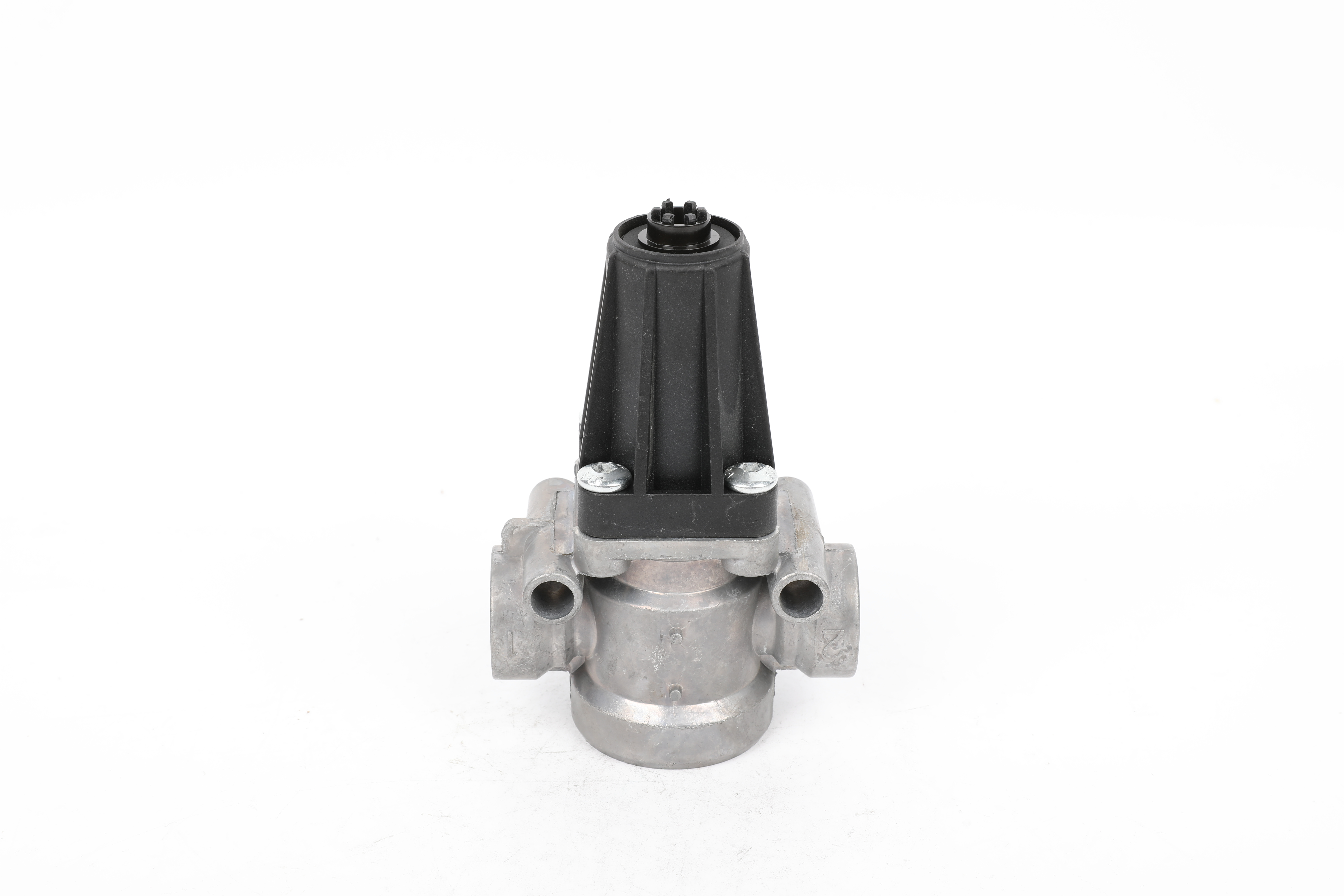

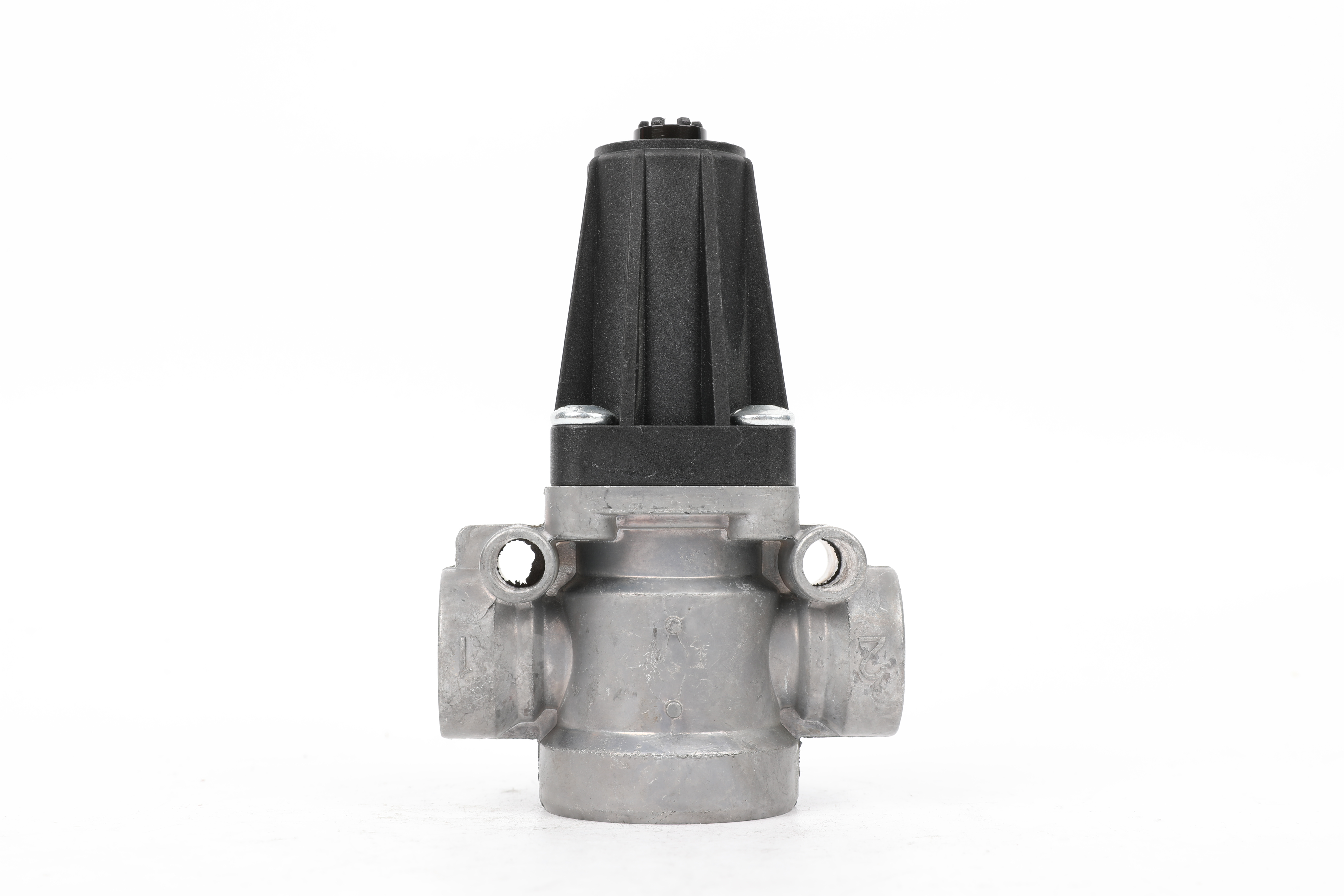

Pressure-limiting valves are a type of pressure control valve. They safeguard the system against excessive system pressure or limit the operation pressure. Pre-load valves, also called sequence valves are a type of pressure control valve.
| Comments: | Nominal diameter of exhaust ø 4 |
| Delivered pressure | 10.0 at p1 = 12.0 bar |
| Distance between bolts | 56.0 mm |
| Exhaust | Ø 4 mm |
| Max. operating pressure | 20.0 bar |
| Mounting | 2x Ø 8.6 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Range of adjustment | 9.6 to 12.0 bar |
| Temperature range | -40°C to +80°C |
| Calculated Volume (dm³) | 0.678 |
| Size (mm x mm x mm) | 145 x 85 x 55 |
| Weight (kg) | 0.388 |
| Weight (lb) | 0.85539 |
| Application: | |
