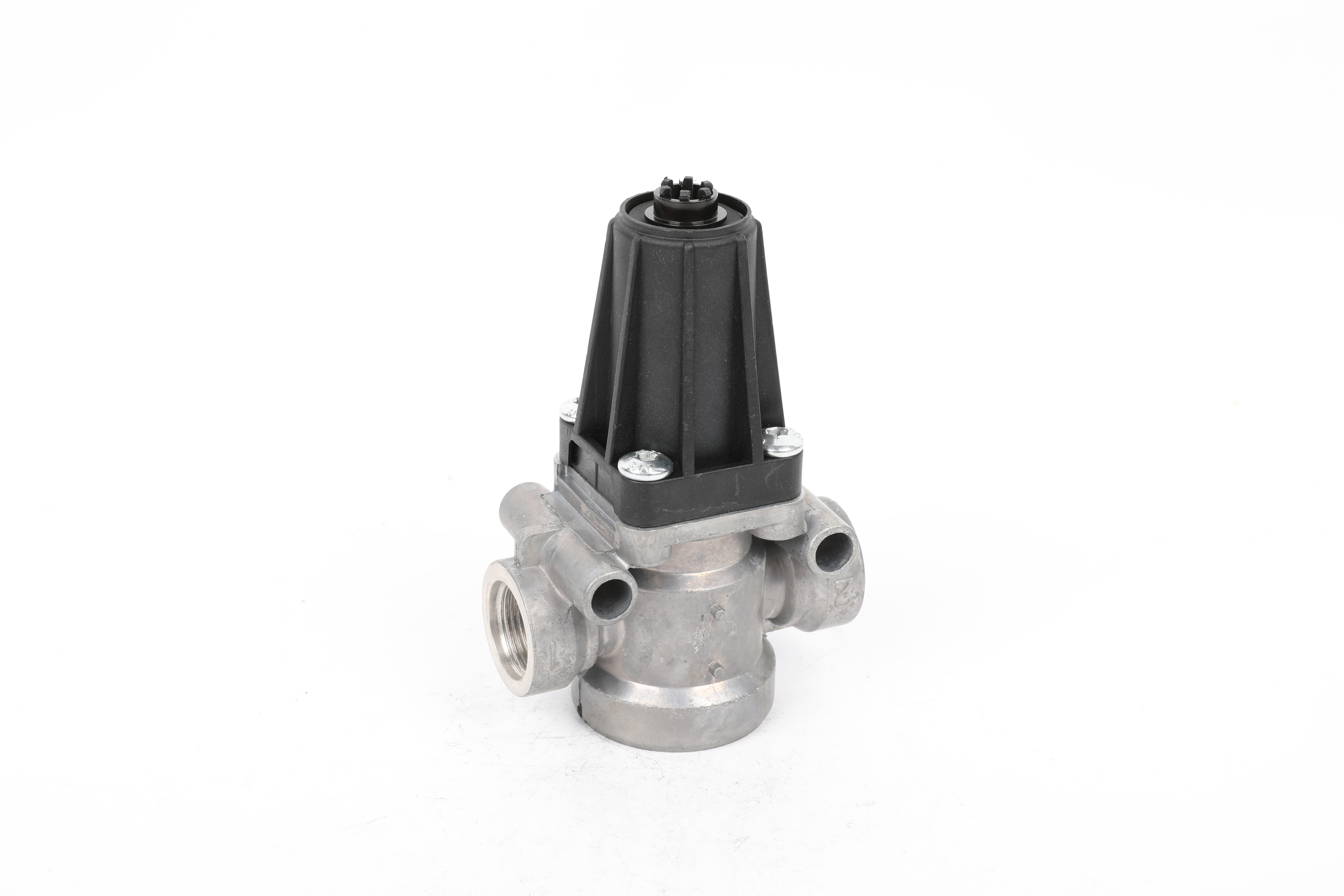

AC574BYW With silencer,opening pressure:0.5 bar relay valves Custom

AC574BYW With silencer,opening pressure:0.5 bar relay valves

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • How does a relay valve work?
    In a truck's air brake system, relay valves get a signal when a driver presses the treadle, which then opens the valve and allows air to enter the brake chamber via air inlet. The diaphragm gets pushed, then the rod, then the slack adjuster which twists to turn the brake camshaft.



    Mounting:

    4x M8

    Opening pressure:

    0.5 bar

    Port thread 1:

    M22 x 1.5 JED-388

    Port thread 2:

    2x M22 x 1.5 JED - 388

    Port thread 3:

    Silencer (432 407 050 0)

    Port thread 4:

    M16 x 1.5 JED - 388

    Predominance:

    0.10 bar

    Regulating ratio:

    1:1

    Temperature range:

    -40°C to +80°C

    Version:

    Pressure reduction

    Calculated Volume (dm³):

    1.264

    Size (mm x mm x mm):

    100 x 98 x 129

    Application:

    Daf,Mercedes,Man,Volvo,Renault Daf,Mercedes,

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom AC574BYW With silencer,opening pressure:0.5 bar relay valves Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
