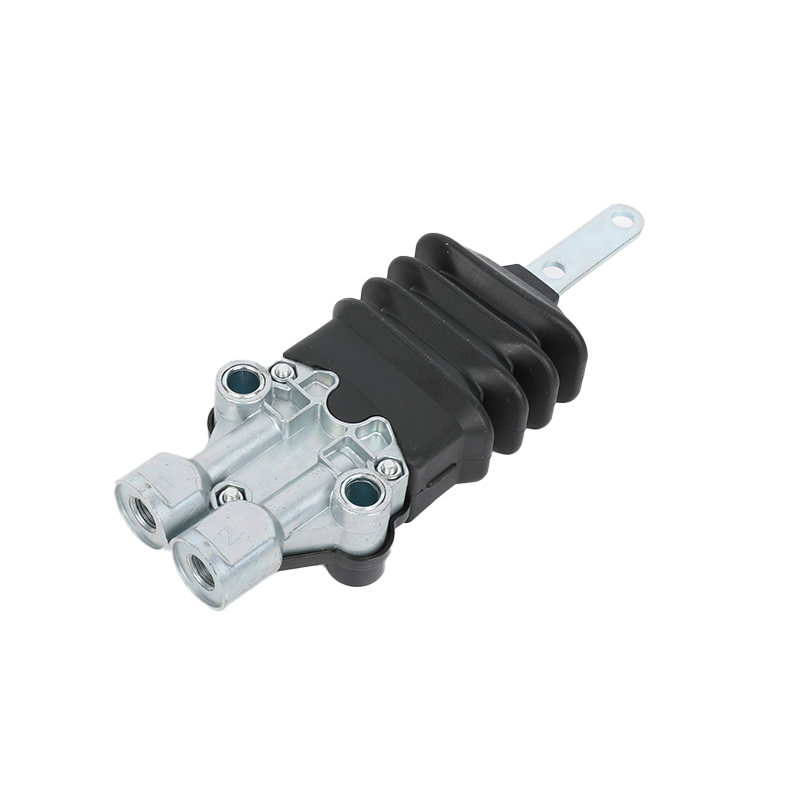

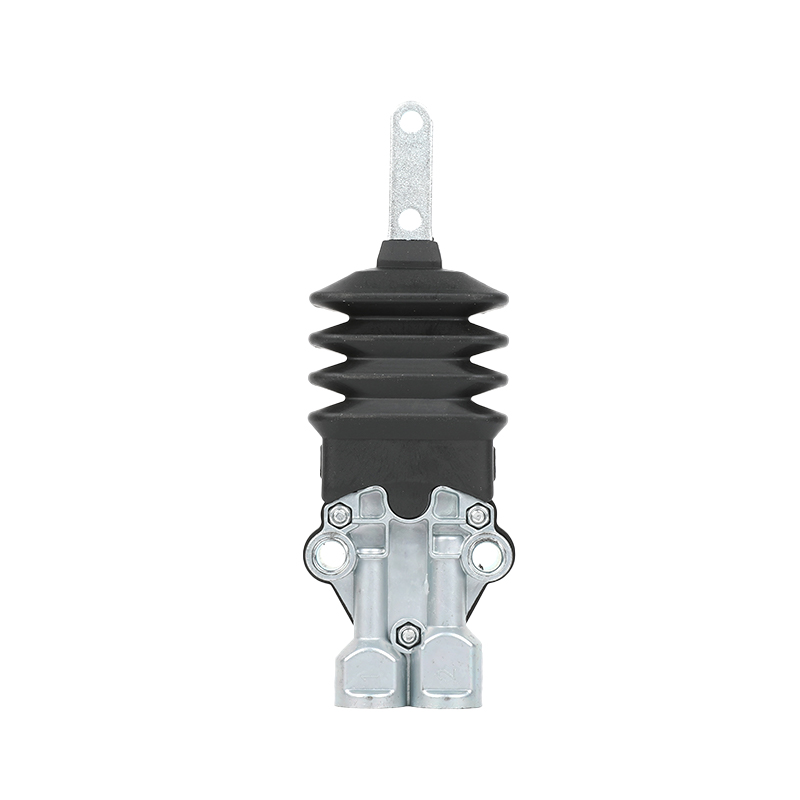

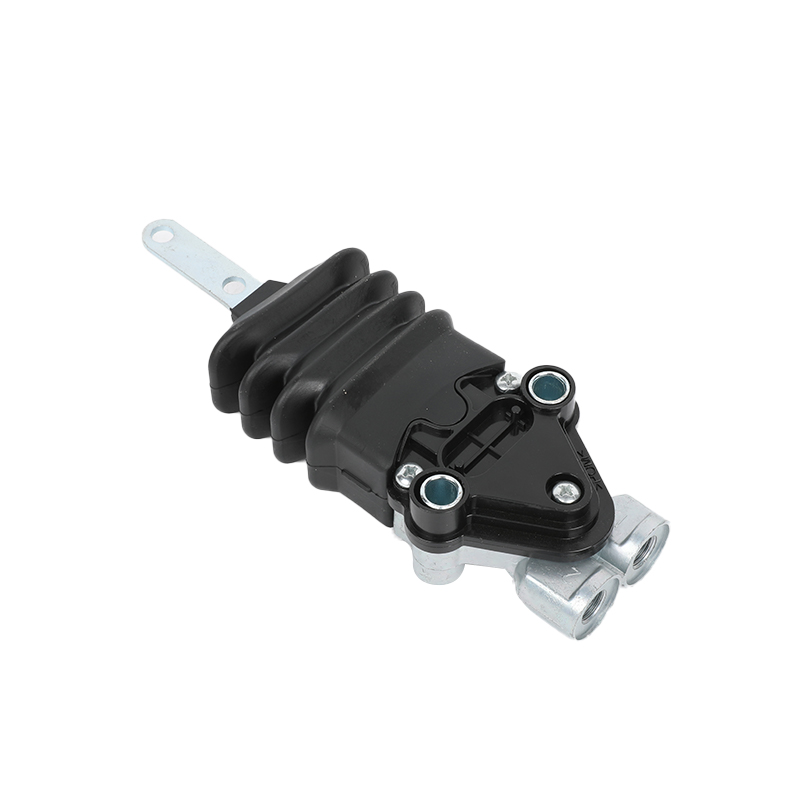

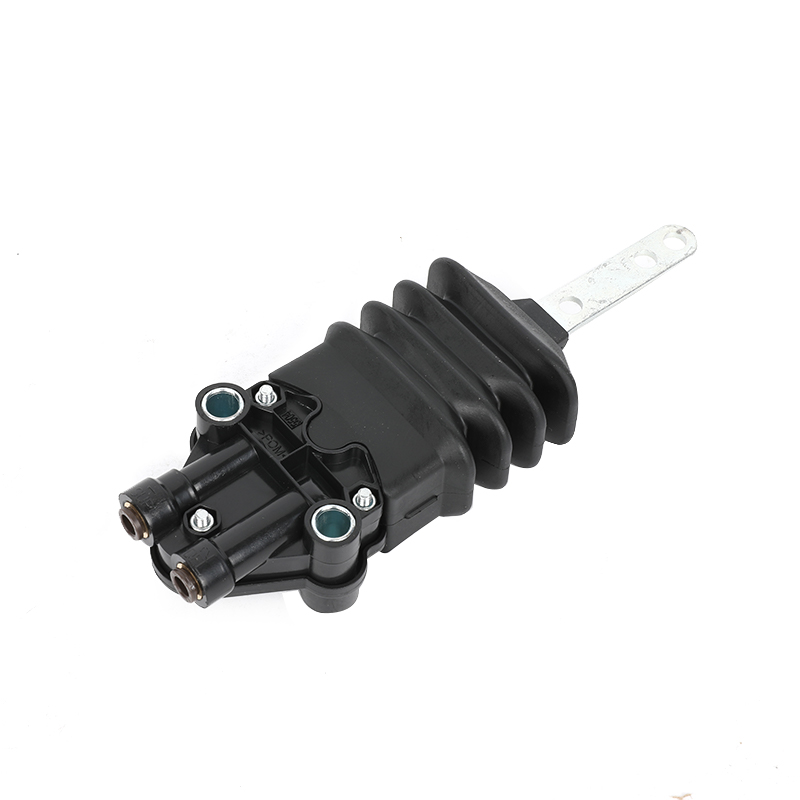

4640070100 Max. operating pressure:10.0 bar leveling valve Custom

4640070100 Max. operating pressure:10.0 bar leveling valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What does a leveling valve do on a truck?
    For vehicles fitted with air springs, a chassis levelling valve from Provia delivers suspension control by precisely modulating compressed air in the bellows, calculated with reference to vehicle load. The system ensures a constant ride height, charging and/or venting air suspension during loading/unloading.

    Distance between holes:

    46.4 mm

    Length

    R 160 mm

    Max. operating pressure

    10.0 bar

    Mounting

    2x Ø 8.5 mm

    Port thread 1

    M10 x 1

    Port thread 2:

    M10 x 1

    Technical specification:

    OE specification

    Temperature range:

    -40°C to +80°C

    Type:

    With Lever

    Type of operation:

    Hole-lever Ø 6.5 mm

    Version:

    With one-way valve

    Calculated Volume (dm³):

    0.44528

    Size (mm x mm x mm):

    189 x 62 x 38

    Weight (kg):

    0.341

    Weight (lb):

    0.75178

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4640070100 Max. operating pressure:10.0 bar leveling valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
