4750104000 Max. operating pressure:20.0 bar pressure limiting valve Custom

4750104000 Max. operating pressure:20.0 bar pressure limiting valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Why do I need a pressure limiting valve?
    A pressure limiting valve (or PLV) will limit the strength of the incoming water pressure to save your property from damage caused by high water pressure. PLVs have become part of Australian standards in order to protect your home

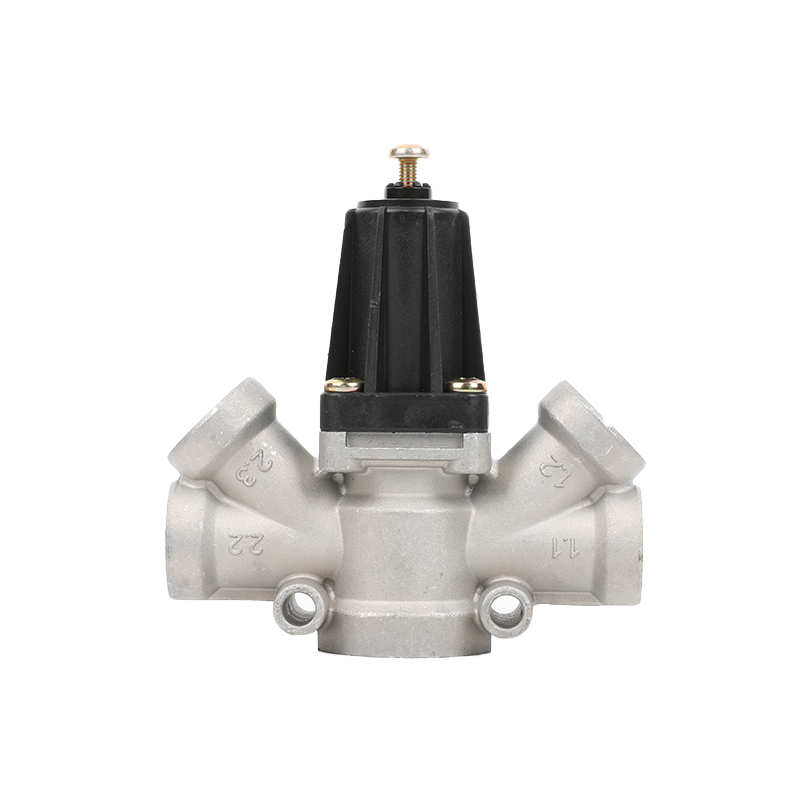

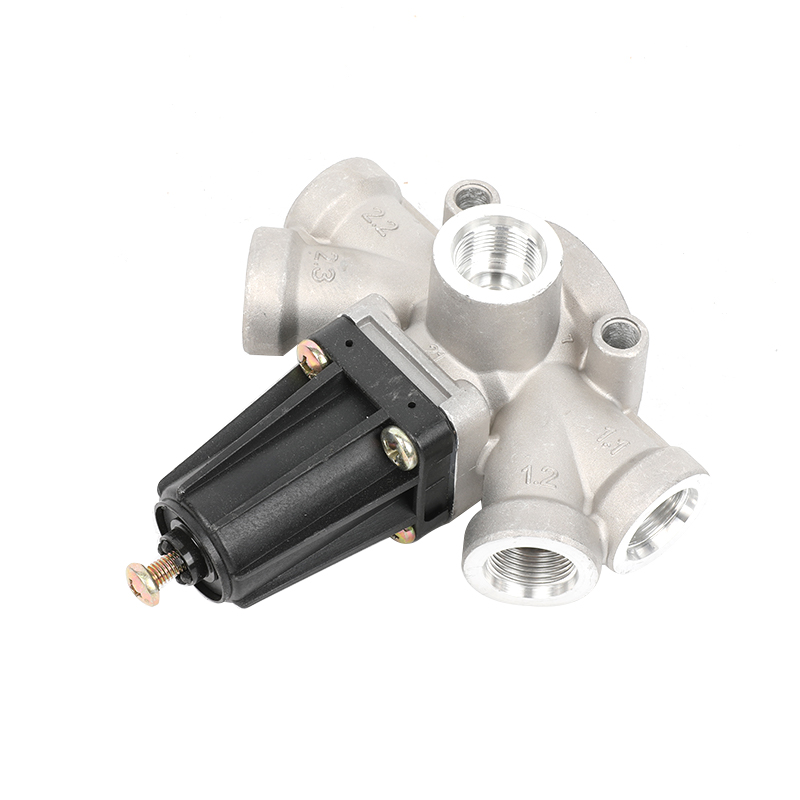

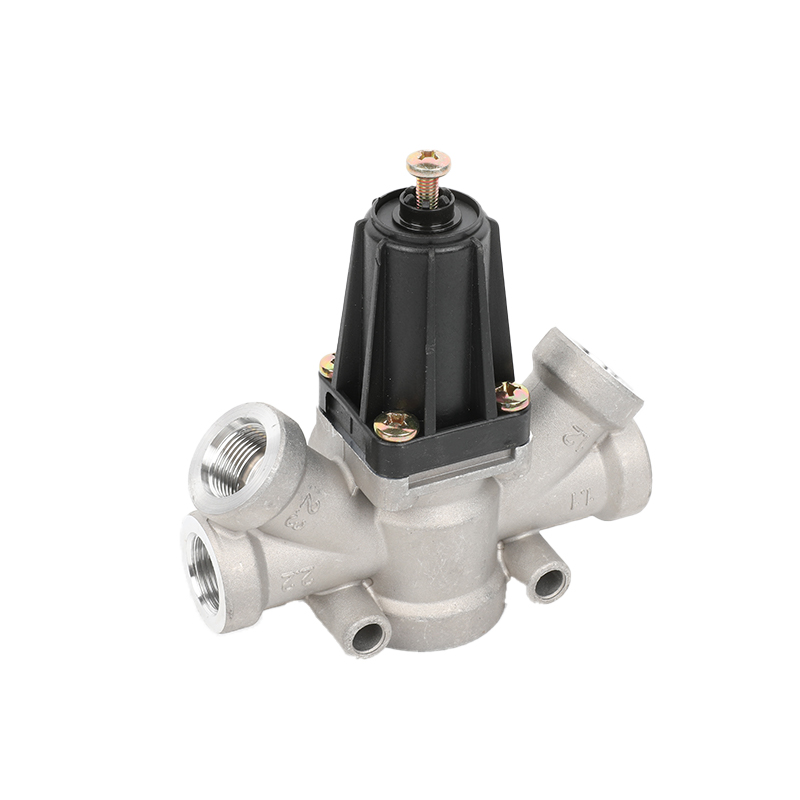

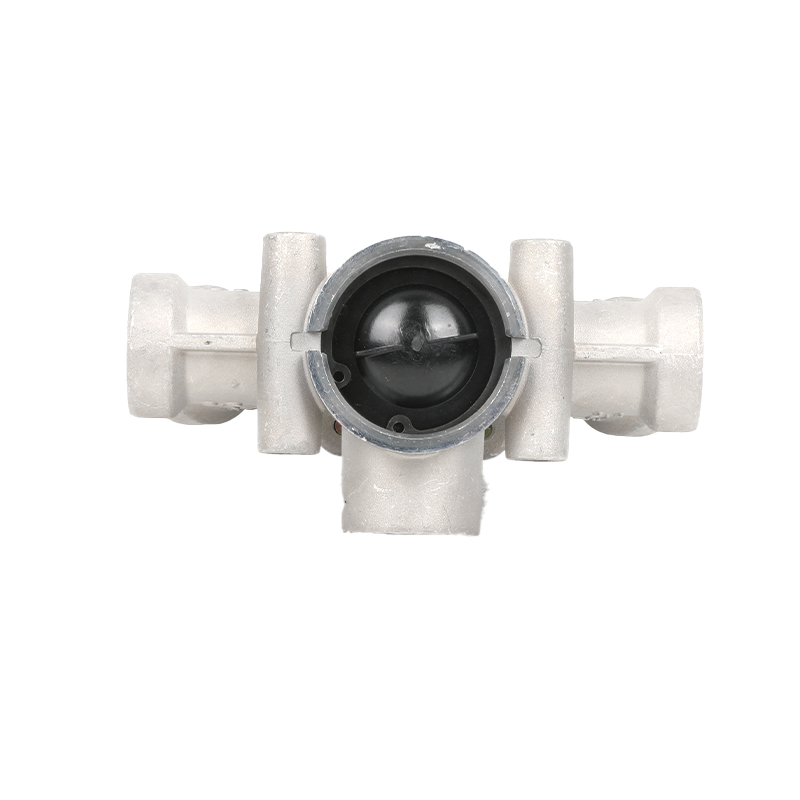

    4750104000 Max. operating pressure:

    20.0 bar Pressure Limiting Valve

    Technical Specification:

    OE specification

    Delivered pressure:

    8.0 at p1 = 9.8 bar

    Distance between bolts:

    56.0 mm

    Exhaust:

    Ø 4 mm

    Max. operating pressure:

    20.0 bar

    Mounting:2x Ø 8.6 mm

    20.0 bar

    Port thread 1:

    M22 x 1.5

    Port thread 2:

    M22 x 1.5

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    0.935

    Size (mm x mm x mm):

    170 x 50 x 110

    Weight (kg):

    0.544

    Weight (lb):

     1.1993

    Application:

    LEYLAND DAF, PACCAR,SCANIA ,MAN,DAF,

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4750104000 Max. operating pressure:20.0 bar pressure limiting valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
