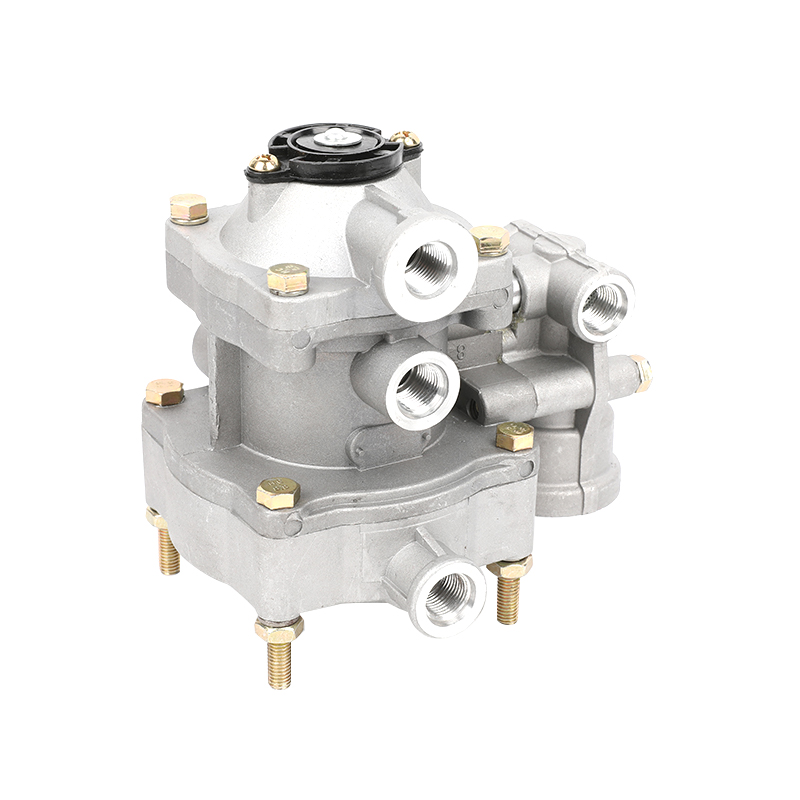

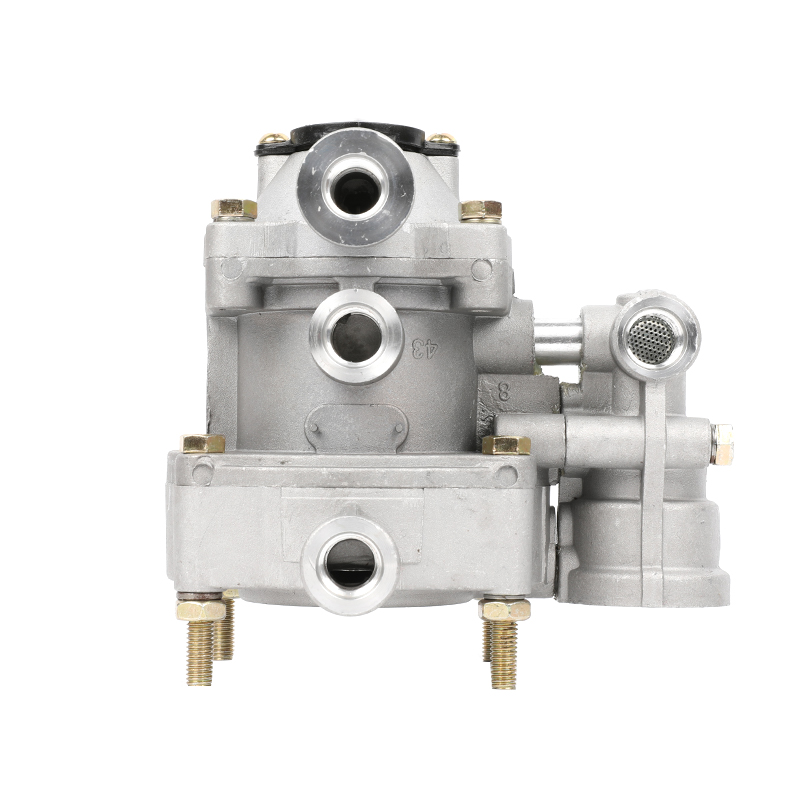

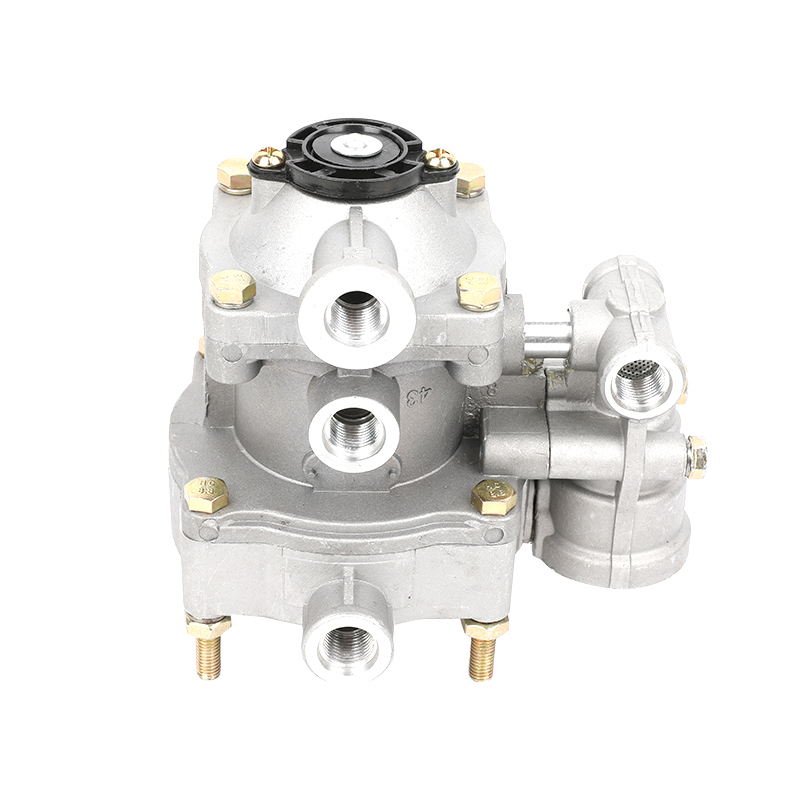

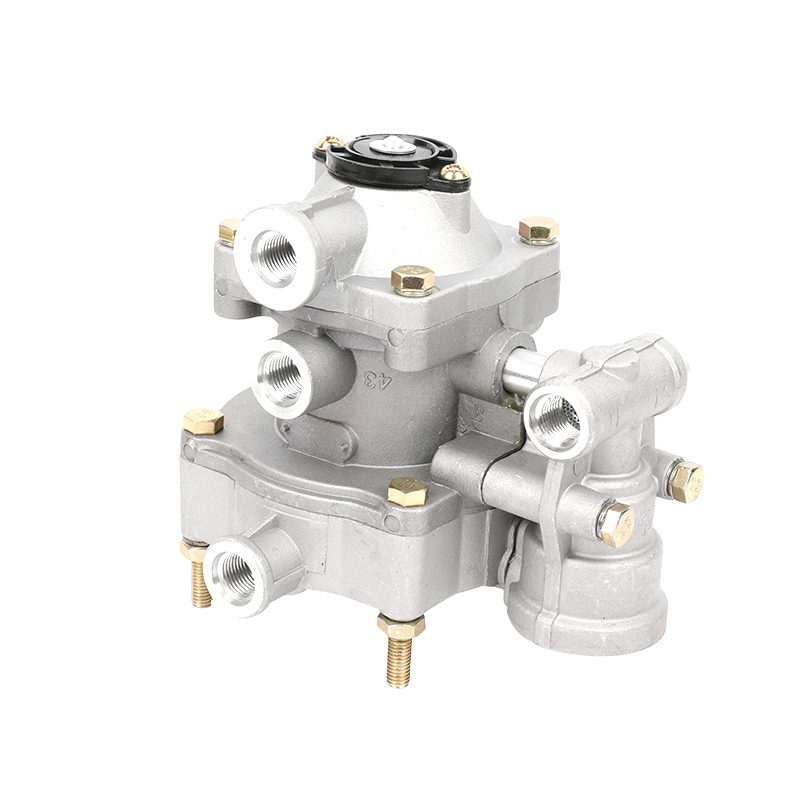

9730025200 Switch pressure 2.5 bar trailer control valve Custom

9730025200 Switch pressure 2.5 bar trailer control valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What does the trailer air supply control do?
    The trailer air supply control on newer vehicles is a red eight-sided knob, which you use to control the tractor protection valve. You push it in to supply the trailer with air, and pull it out to shut the air off and put on the trailer emergency brakes.

    Distance between bolts:

    85.0 x 85.0 mm

    Exhaust:

    Flap

    Max. operating pressure:

    8.0 bar

    Mounting:

    4x M8

    Multi Nominal diameter (From Port 1 to x):

    8.0 / 2.0 mm

    Port thread 11:

    M16 x 1.5  Port thread 12:M16 x 1.5  Port thread 22:M16 x 1.5

    Port thread 41:

    M16 x 1.5  Port thread 42:M16 x 1.5  Port thread 43:M16 x 1.5

    Switch pressure:

    2.5 bar

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    3.55

    Size (mm x mm x mm):

    158 x 164 x 137

    Weight (kg):

    1.94

    Weight (lb):

    4.277

    Application:

    BEDFORD,DAF,Dimetal,FAUN,FUSO (MITSUBISHI),HINO,IVECO KENWORTH,KOMATSU,MERCEDES-BENZ,MERITOR,PETERBILT,RENAULT,SAF,STEYR,TEREX

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9730025200 Switch pressure 2.5 bar trailer control valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
