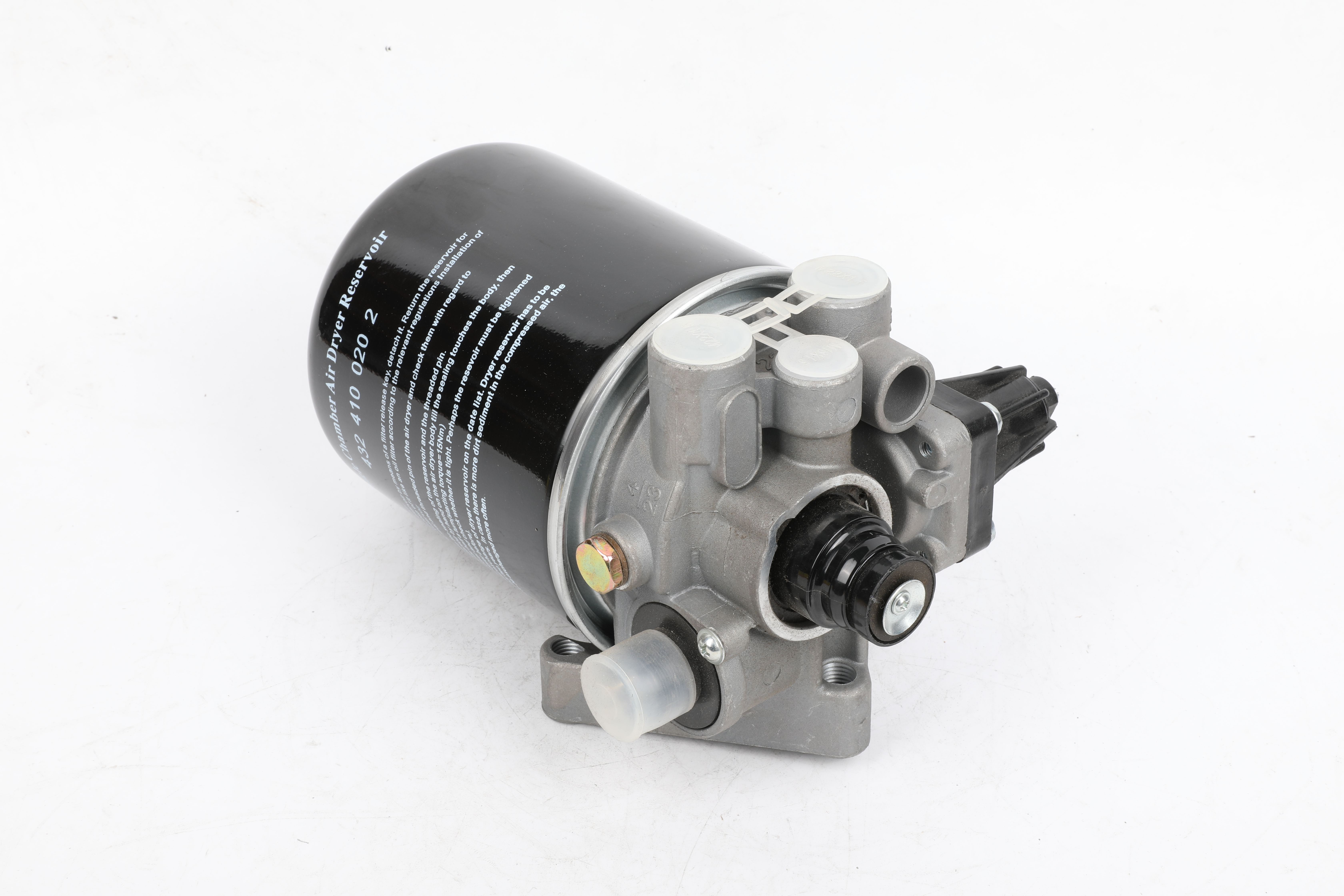

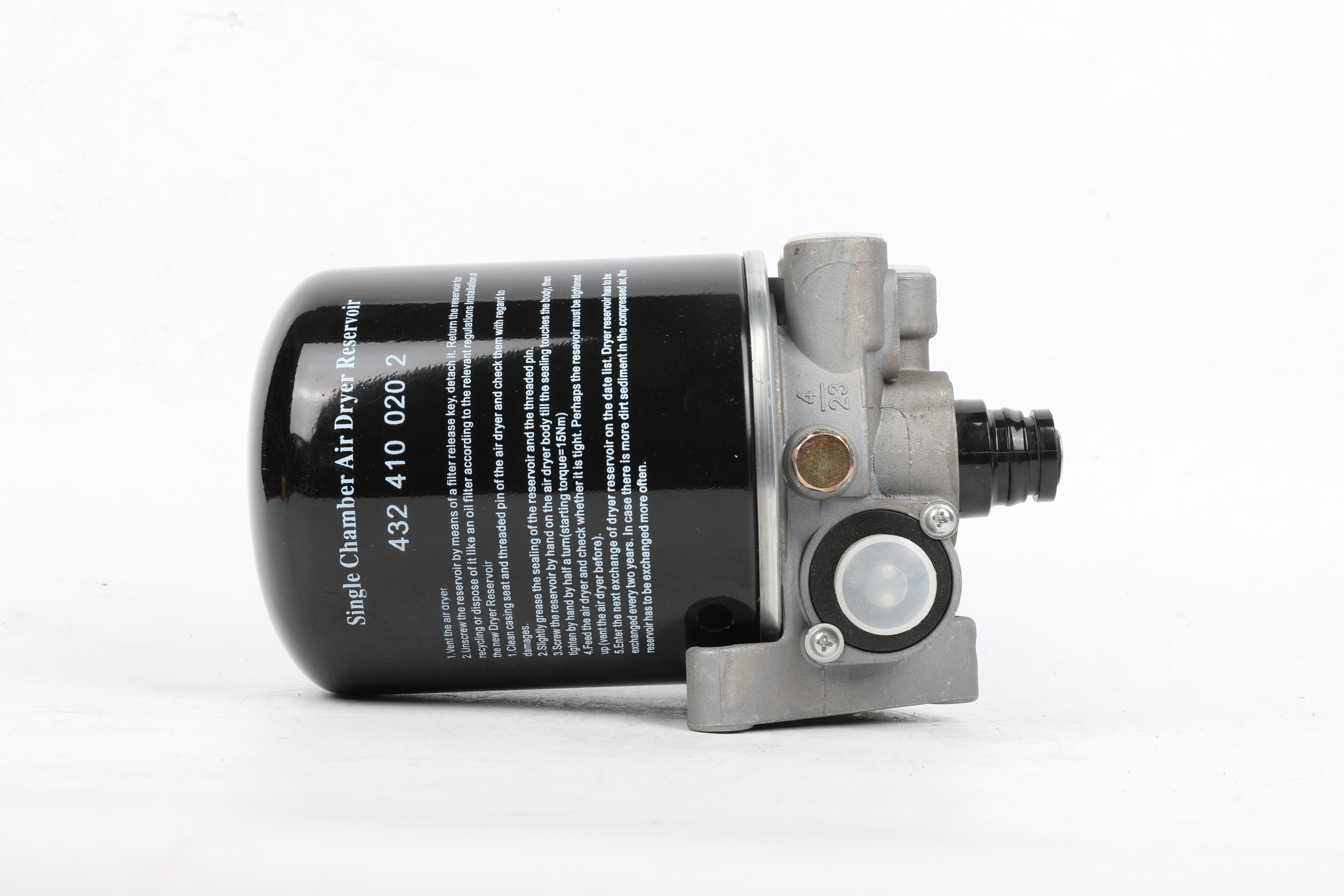

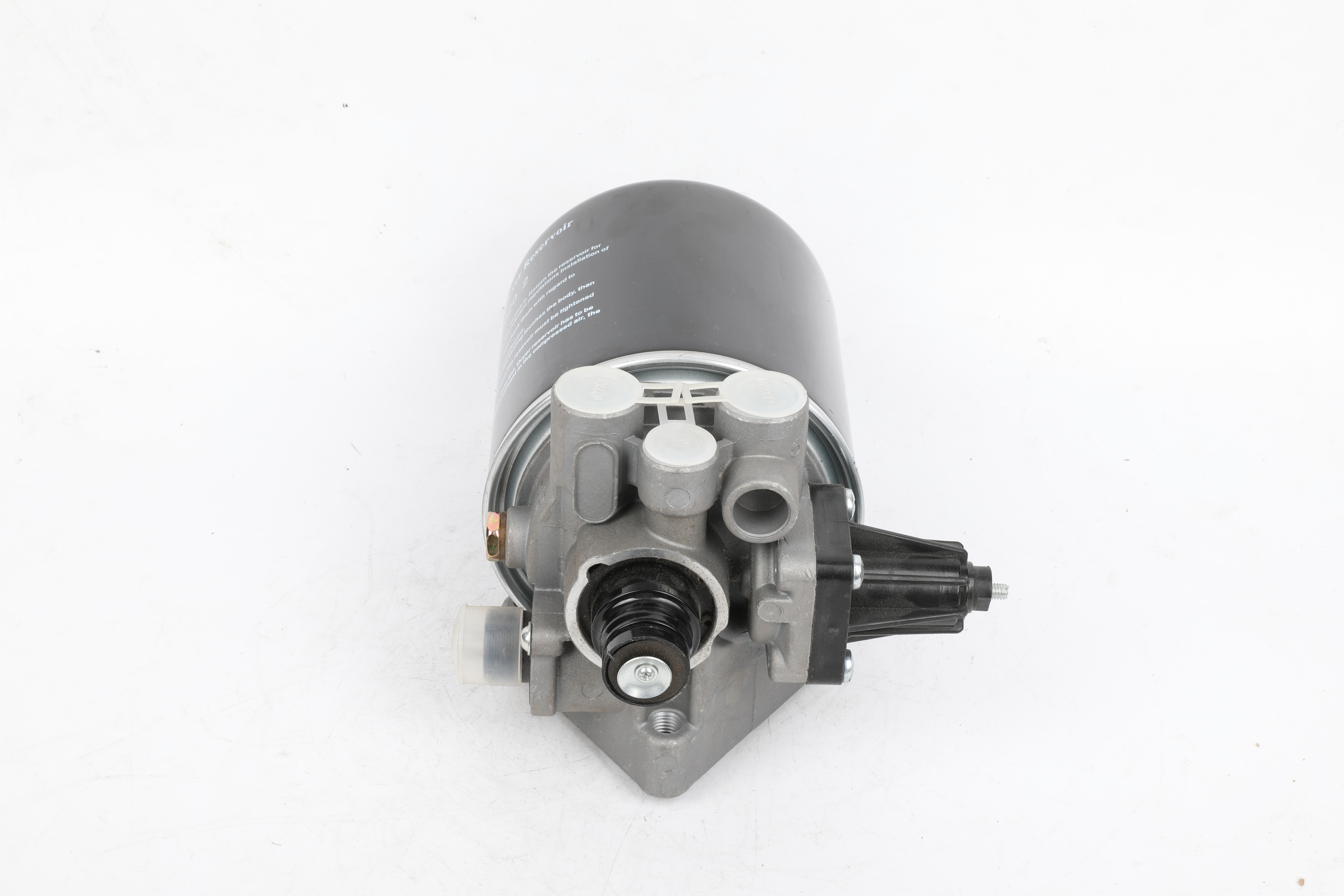

4324101040 Cut-out pressure:8.1 bar single cannister air dryer Custom

4324101040 Cut-out pressure:8.1 bar single cannister air dryer

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What does an air dryer do?
    The purpose of air dryers is to suppress the dew point of your compressed air by removing water from it. Compressed air can contain moisture, which, under the right conditions, can reach the dew point temperature and condense into a harmful liquid.

    Technical Specification:

    OE specification

    Cartridge type:

    Desiccant Cartrige

    Cut-out pressure:

    8.1 bar

    Heater:

    894 260 040 2

    Heating connection:

    Kostal M27 x 1

    Max. operating pressure:

    13.0 bar

    Operational range:

    0.6+0.4 bar

    Port thread 1:

    M22 x 1.5

    Port thread 21:

    M22 x 1.5

    Port thread 22:

    M12 x 1.5

    Port thread 4/23:

    M12 x 1.5

    Silencer:

    432 407 012 0

    Temperature range:

    -40°C to +65°C

    Unloader:

    Yes

    Voltage:

    24 V

    Calculated Volume (dm³):

    8.6566

    Size (mm x mm x mm):

    188 x 154 x 299

    Weight (kg):

    3.712

    Weight (lb):

    8.1835

    Application:

    For Evobus,Irisbus,Steyr

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4324101040 Cut-out pressure:8.1 bar single cannister air dryer Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
