4324251050 Opening pressure 13.00 bar for volvo,daf,paccar air dryer Wholesale

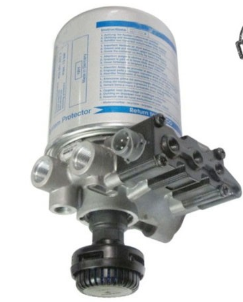

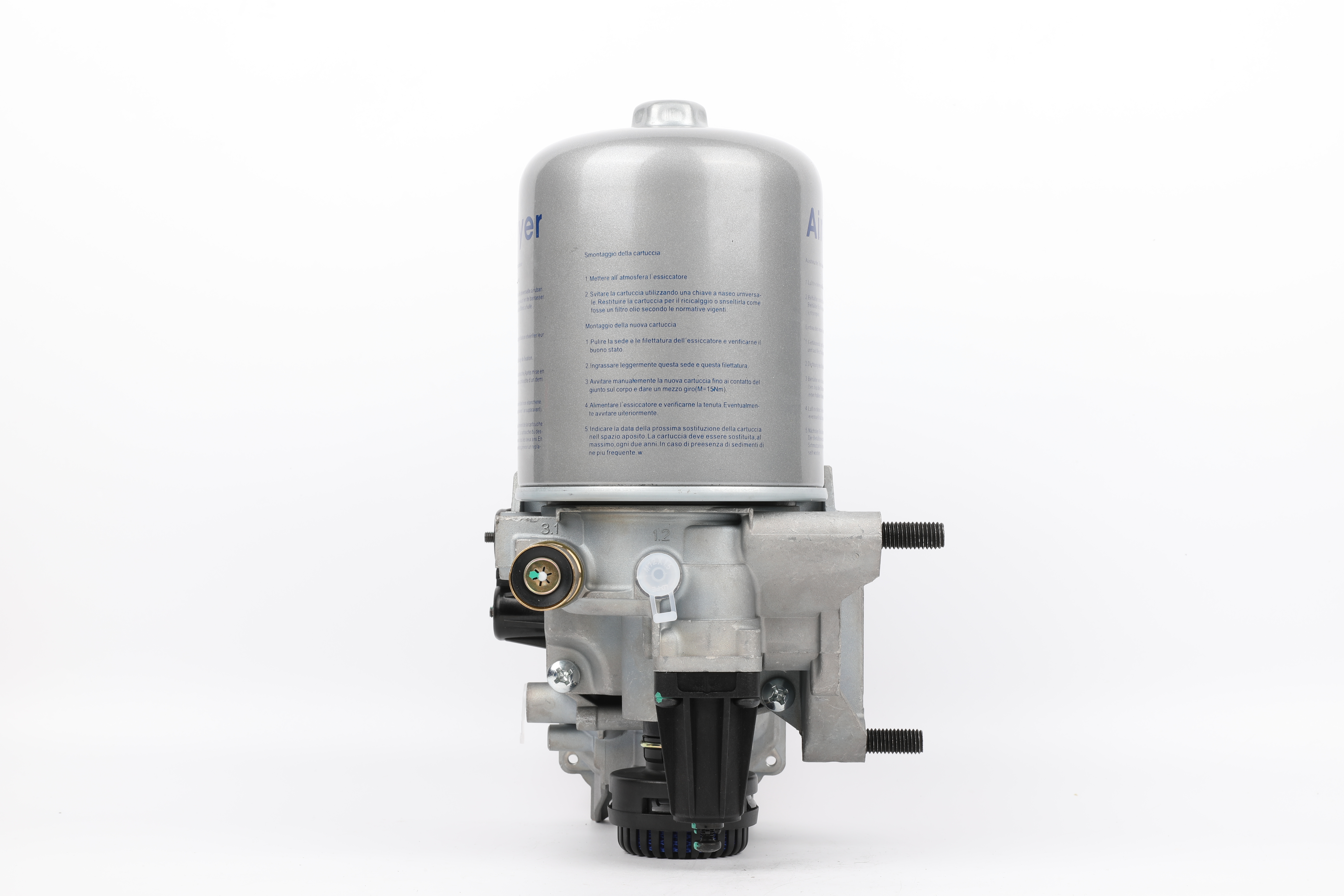

4324251050 Opening pressure 13.00 bar for volvo,daf,paccar air dryer

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • How does an air dryer work on a big truck?
    Air is heated as it's compressed, and it cools as it travels through the discharge line to the air tank. This cooling results in condensation creating pools of water in the bottom of the truck's air tanks.

    Technical specification:

    OE specification

    Cartridge type:

    Air System Protector Plus M39

    Comments:

    Volvo FH, FM

    Exhaust:

    Thread female M 22x1.5

    Heating connection:

    DIN 72585 A1-2.1-Sn/K1

    Max. operating pressure:

    13.0 bar

    Opening pressure:

    13.00 bar

    Port thread 1:

    M22 x 1.5

    Port thread 12:

    M16 x 1.5

    Port thread 21:

    M22 x 1.5

    Port thread 4/23:

    1/4" - 18 NPTF

    Silencer:

    SILENCER 432 407 060 0

    Solenoid connection:

    Bayonet DIN 72585 A2-4.1-Sn/K1

    Temperature range:

    -40°C to +65°C

    Unloader:

    No

    Voltage:

    24 V

    Calculated volume (dm³):

    7.6036

    Size (mm x mm x mm):

    296 x 169 x 152

    Weight (kg):

    3.876

    Weight (lb):

    8.5451

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 4324251050 Opening pressure 13.00 bar for volvo,daf,paccar air dryer Supplier and Custom 4324251050 Opening pressure 13.00 bar for volvo,daf,paccar air dryer Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
