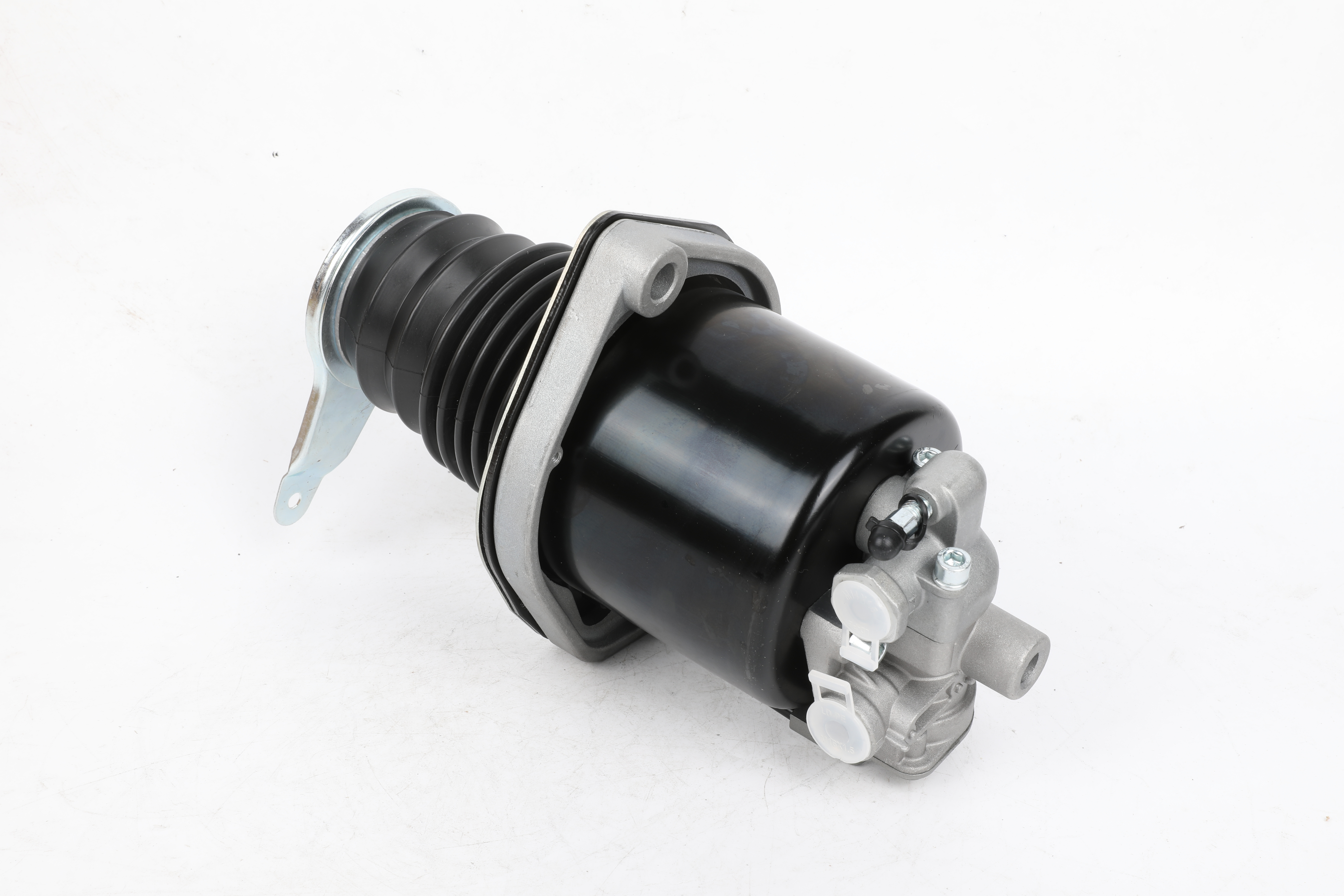

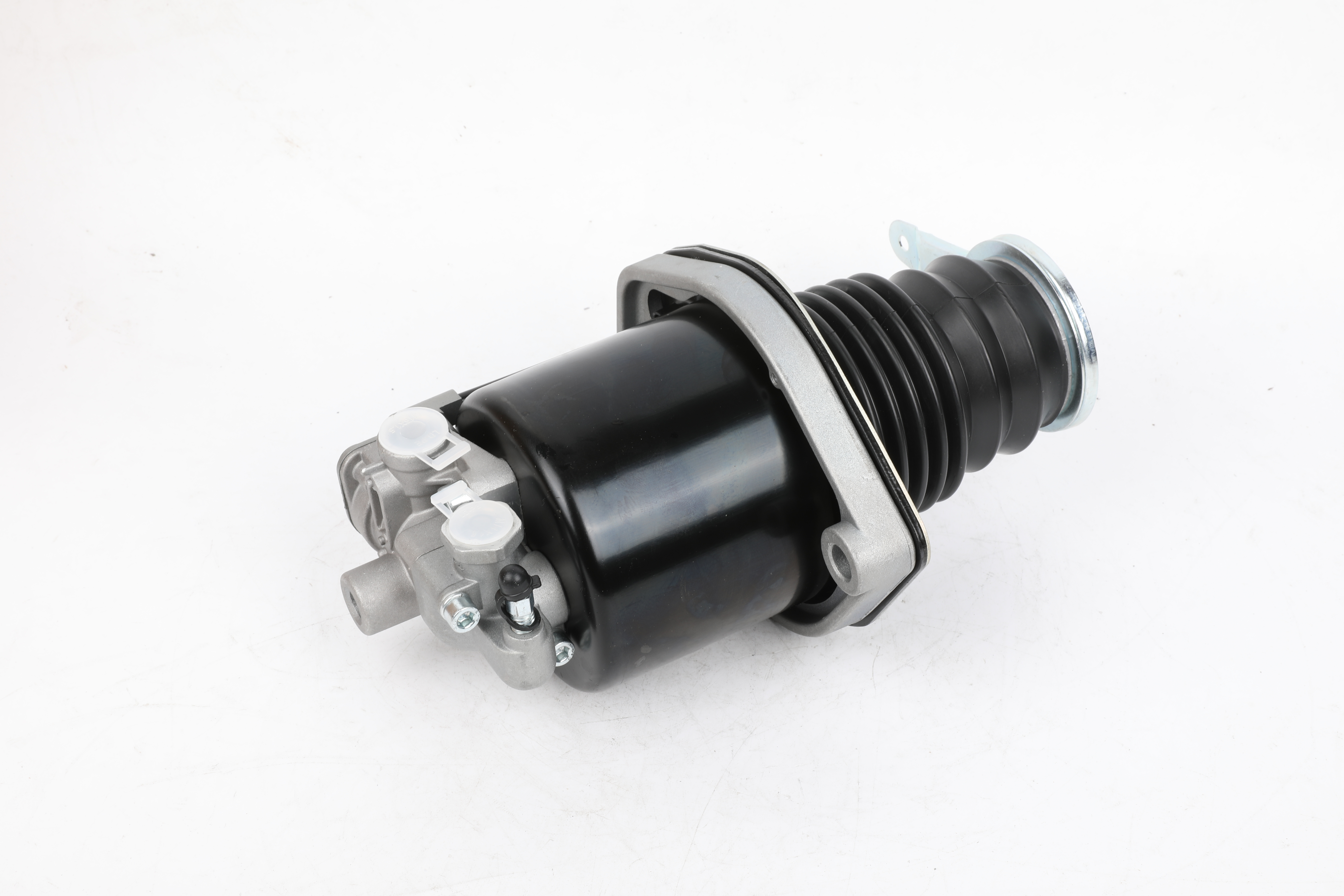

9700511580 Application for daf,evobus,mercedes-benz servo clutch Custom

9700511580 Application for daf,evobus,mercedes-benz servo clutch

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

    Distance between holes:

    146.0 mm

    Length:

    188 mm

    Max. operating pressure:

    8.0 bar

    Mounting:

    2x Ø 11.0 mm

    Oil inlet:

    Brake fluid SAE J 1703

    Port Thread 1-4:

    M14 x 1.5 ( K )

    Port Thread 32:

    Ø 8.0 mm

    Port thread 11:

    M16 x 1.5

    Port thread 31:

    Flap Exhaust

    Push-rod thread:

    Hole Ø 12.0 mm

    Stroke:

    75.0 mm

    Temperature range:

    -20°C to +140°C

    Calculated volume (dm³):

    6.4919

    Size (mm x mm x mm):

    263 x 187 x 132

    Weight (kg):

    2.849

    Weight (lb):

    6.28

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9700511580 Application for daf,evobus,mercedes-benz servo clutch Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
