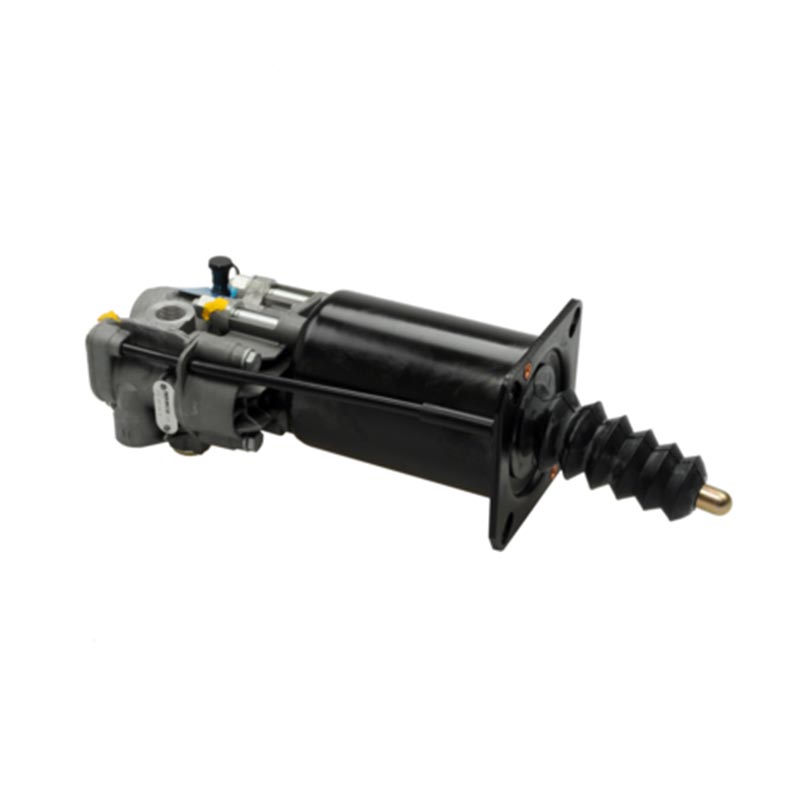

626392AM Max. operating pressure 10.0 bar for volvo,daf,paccar clutch servo Custom

626392AM Max. operating pressure 10.0 bar for volvo,daf,paccar clutch servo

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is a clutch servo?
    A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

    Length:

    312 mm

    Max. operating pressure:

    10.0 bar

    Oil inlet:

    Brake fluid SAE J 1703

    Port Thread 1-4:

    7/16" - 20 UNC

    Port Thread 32:

    Ø 8.0 mm

    Port thread 11:

    M12 x 1.5

    Port thread 31:

    Flap Exhaust

    Push-rod thread:

    M12 x 1.25

    Stroke:

    58.5 mm

    Temperature range:

    -40°C to +80°C

    Yoke:

    Ø 12.0 mm

    Calculated volume (dm³):

    5.472

    Size (mm x mm x mm):

    332 x 123 x 134

    Weight (kg):

    3.17

    Application:

    DAF,PACCAR,VOLVO

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 626392AM Max. operating pressure 10.0 bar for volvo,daf,paccar clutch servo Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
