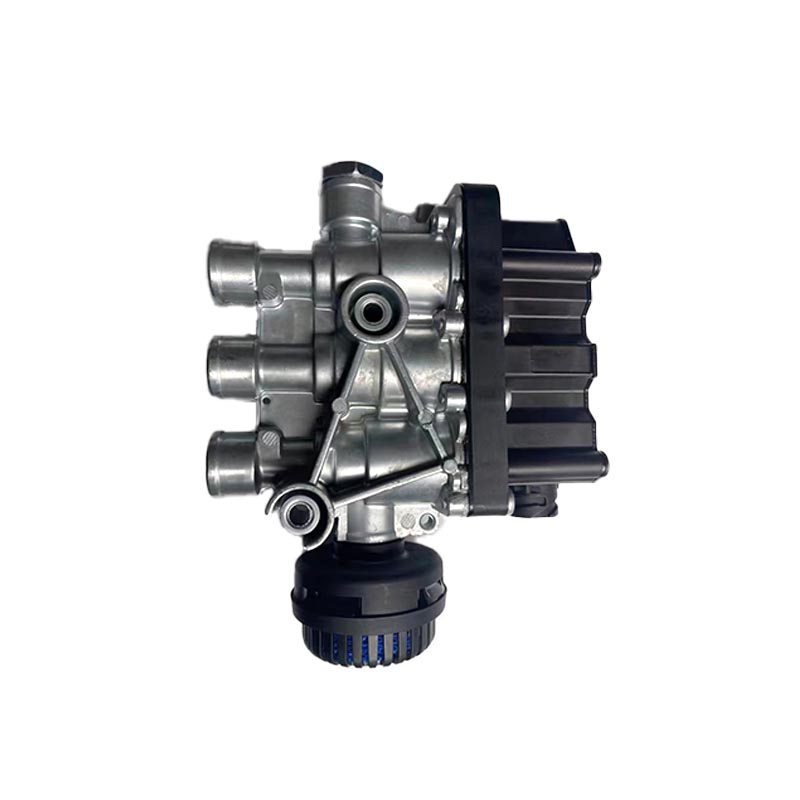

4728800000 For ,hyundai ecas solenoid valve

Details
Type of vehicle
Leave a message

Electrical Connection:	Bayonet DIN 72585-A1-4.1-Sn/K2
Max. operating pressure:	20.0 bar
Mounting:	2 x Ø 9 mm
Multi Nominal diameter (From Port 1 to x):	9.8 / 7.0 mm
Port thread 11:	M22 x 1.5 JED - 388
Port thread 21:	M22 x 1.5 JED - 388
Port thread 22:	M22 x 1.5 JED - 388
Port thread 23:	M22 x 1.5 JED - 388
Port thread 3:	Silencer 4324070600
Protection Class:	IP 6K9K
Rated Current:	320 mA
Temperature range:	-40°C to +80°C
Voltage:	24 V
Calculated Volume (dm³):	2.4504
Size (mm x mm x mm):	201 x 167 x 73
Weight (kg):	2.287
Weight (lb):	5.042
Application:	EVOBUS,HYUNDAI,KENWORTH,KIA,MERCEDES-BENZ,MERITOR,PETERBILT
