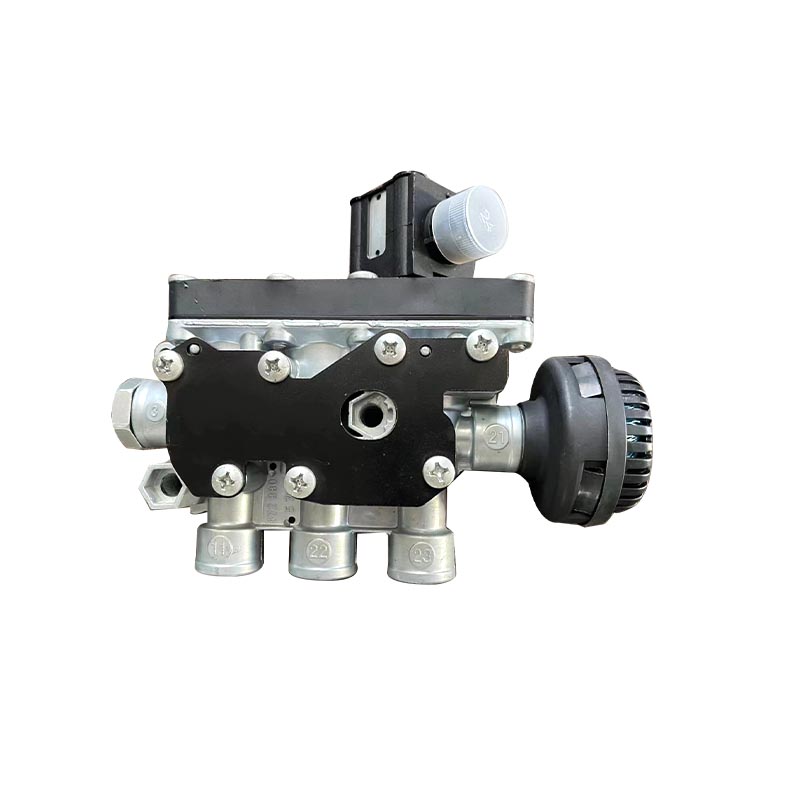

4728800210 Mounting:2 x Ø 9 mm for benz ecas solenoid valve Custom

4728800210 Mounting:2 x Ø 9 mm for benz ecas solenoid valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Electrical Connection:

    Bayonet DIN 72585-A1-2.1-Sn/K2

    Max. operating pressure:

    20.0 bar

    Mounting:

    2 x Ø 9 mm

    Multi Nominal diameter (From Port 1 to x):

    9.8 / 7.0 / 1.0 / 0.6 / 2.0 mm

    Port thread 11:

    M22 x 1.5 JED - 388

    Port thread 21:

    M22 x 1.5 JED - 388

    Port thread 22:

    M22 x 1.5 JED - 388

    Port thread 23:

    M22 x 1.5 JED - 388

    Port thread 3:

    Closed - M22 x 1.5

    Protection Class:

    IP 6K9K

    Push-rod thread:

    M22 x 1.5

    Rated Current:

    340 mA

    Temperature range:

    -40°C to +80°C

    Voltage:

    24 V

    Calculated Volume (dm³):

    1.613

    Size (mm x mm x mm):

    161 x 167 x 60

    Weight (kg):

    1.816

    Weight (lb):

    4.0036

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4728800210 Mounting:2 x Ø 9 mm for benz ecas solenoid valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
