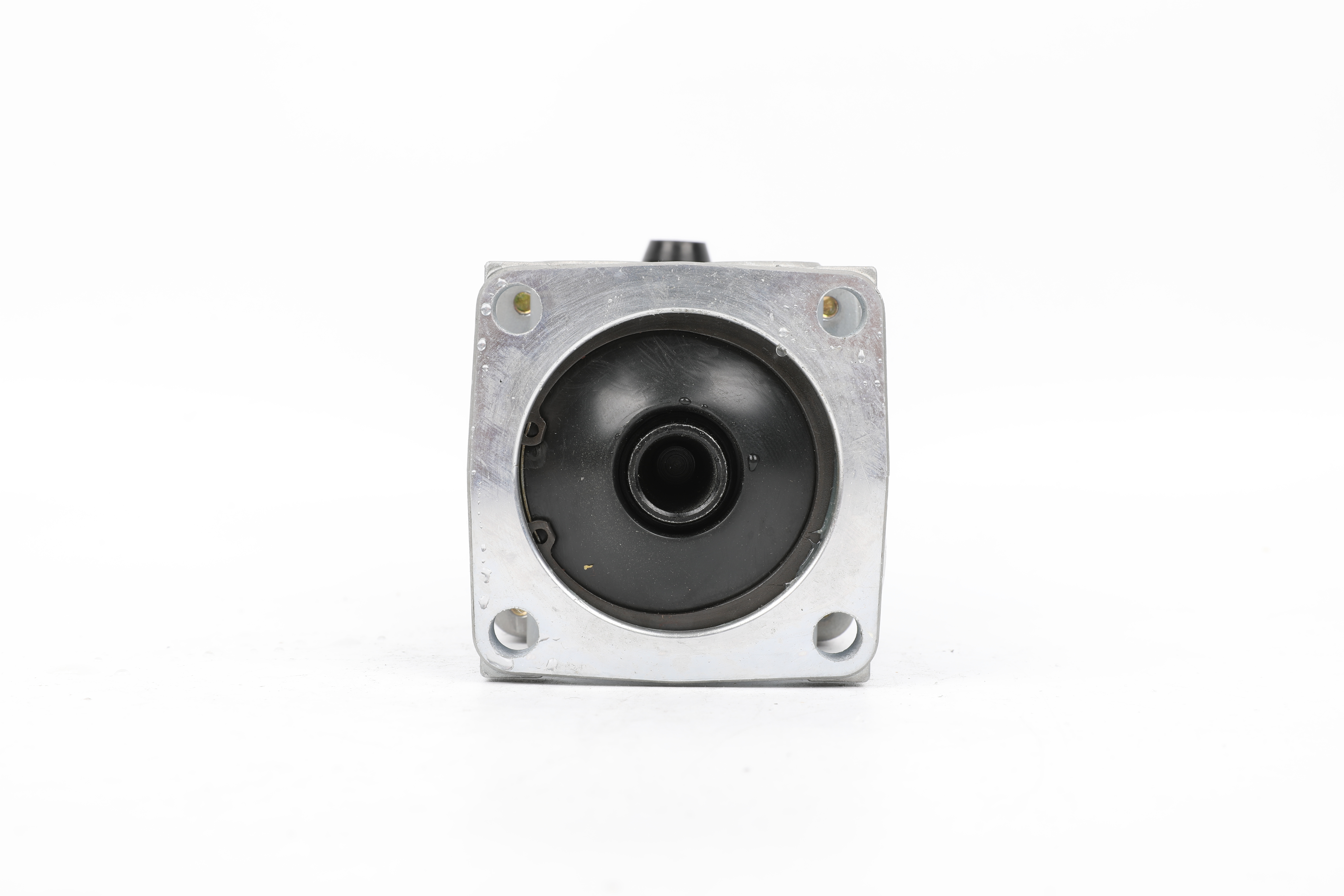

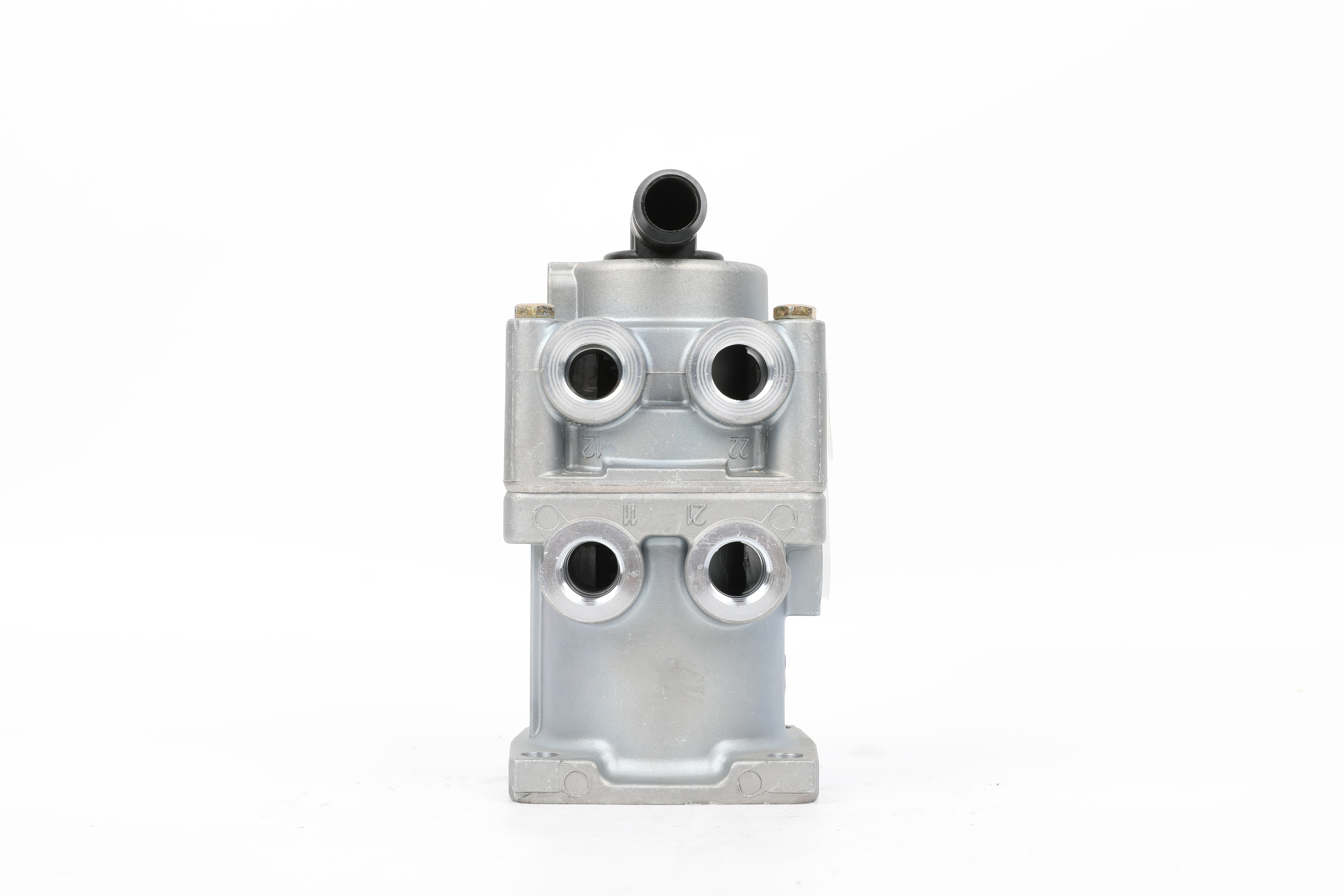

4613150080 Mounting:4x ø 9.0 mm foot brake valve

Details
Type of vehicle
Leave a message

What is foot brake valve?
The foot brake valve is used to actuate and control the brakes on all wheels when the vehicle is in motion. The common reference is to the service brake control valve.

Technical Specification:	OE specification
Product Category:	Device
Distance between holes:	61.0 x 61.0 mm
Exhaust:	Union
Max. operating pressure:	10.0 bar
Mounting:	4x Ø 9.0 mm
Port thread 11:	M16 x 1.5
Port thread 12:	M16 x 1.5
Port thread 21:	M16 x 1.5
Port thread 22:	M16 x 1.5
Port thread 3:	Union
Port thread 4:	M12x1.5
Predominance:	0.30 bar
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	1.2143
Size (mm x mm x mm):	95 x 154 x 83
Weight (kg):	1.115
Weight (lb):	2.4582
Application:	For Mercedes-Benz,Daf, Evobus, Steyr

APPLICATIONS

Vehicle type	Brand	Series	Type	Model	Engine type
TRUCK	DAF	---------	---------	1518060	---------
TRUCK	MACK	---------	---------	8235-S4613150080	---------
TRUCK	MERCEDES BENZ	---------	---------	0014318305	---------
TRUCK	MAN	---------	---------	85500014354	---------
TRUCK	SCANIA	---------	---------	1314047	---------
TRUCK	VOLVO	---------	---------	4783981	---------
BUS	IRISBUS	---------	---------	4783981	---------
BUS	EVOBUS	---------	---------	A0014318305	---------
AGRICULTURAL MACHINERY	STEYR	---------	---------	99100360073	---------
CONSTRUCTION MACHINERY	LIEBHERR	---------	---------	502992977	---------
