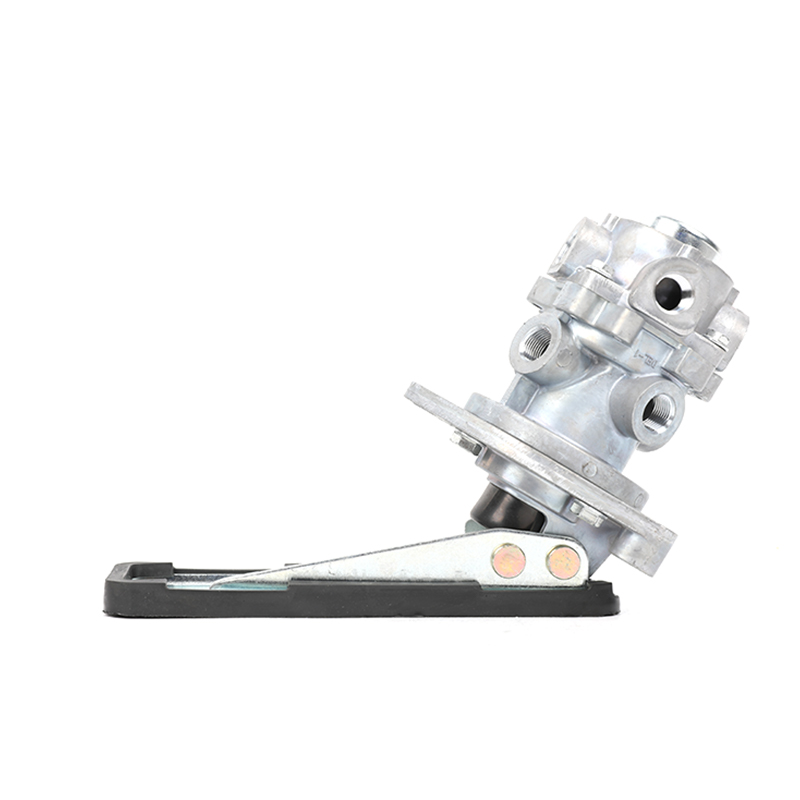

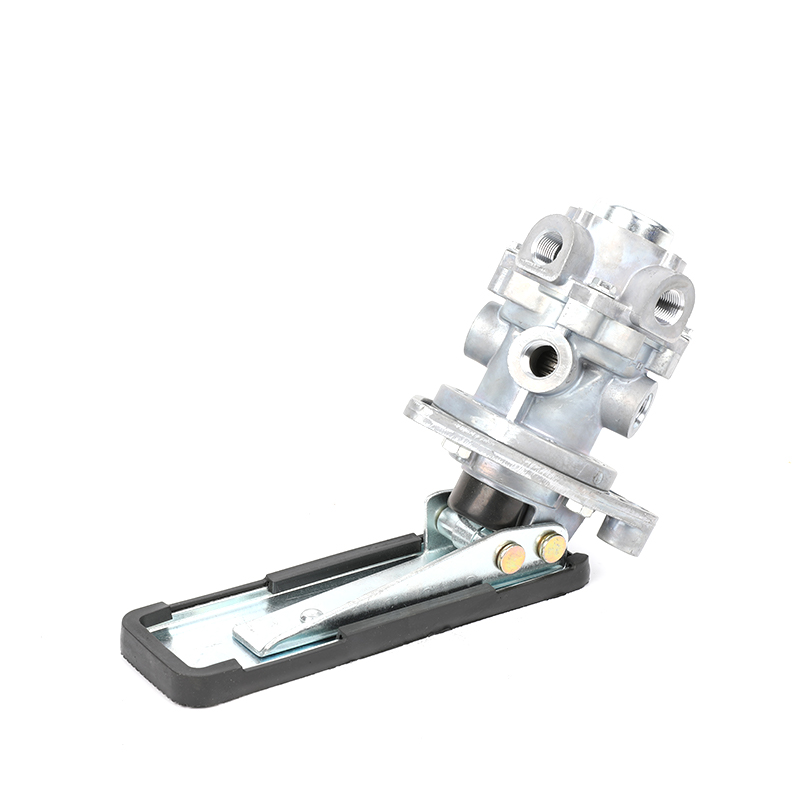

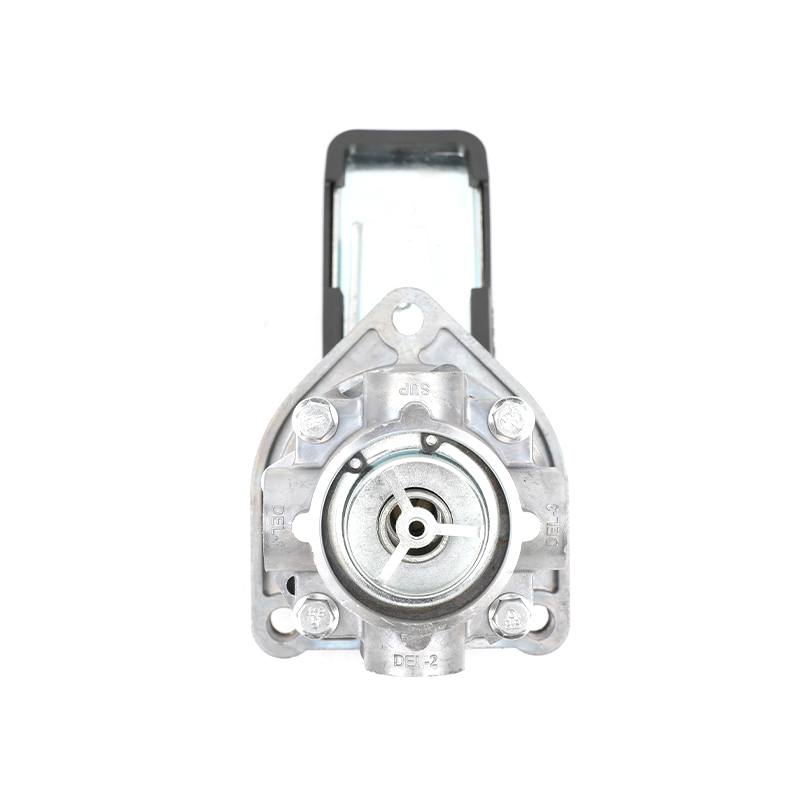

4613186040 Max. operating pressure:10.0 bar foot brake valve Custom

4613186040 Max. operating pressure:10.0 bar foot brake valve

4613186040 Max. operating pressure:10.0 bar foot brake valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message

  • What is a foot valve on a truck?
    Foot valves are attached to the brake pedal. This is the valve that actually starts the process of a brake application when you step on the brake pedal. Your foot valve may be mounted to the inside or outside of the firewall, or it may be mounted under the floor of the cab.

    Technical Specification:

    OE specification

    Product Category:

    Device

    Actuation:

    4619017831

    Basic Valve:

    4613150731

    Distance between holes:

    80.0 x 180.0 mm

    Electrical Connection:

    Bayonet plug 4-pin

    Exhaust:

    Snap-on contour

    Max. operating pressure:

    10.0 bar

    Mounting:

    3x Ø 9.5 mm

    Pedal angle:

    43°

    Port thread 11:

    M16 x 1.5

    Port thread 12:

    M16 x 1.5

    Port thread 21:

    M16 x 1.5

    Port thread 22:

    M16 x 1.5

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    11.6579

    Size (mm x mm x mm):

    282 x 390 x 106

    Weight (kg):

    3.341

    Weight (lb):

    7.3656

    Appliction:

    ALEXANDER DENNIS, KING LONG, Jianghuai, FOTON DAF,FAW,FOTON,

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4613186040 Max. operating pressure:10.0 bar foot brake valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
