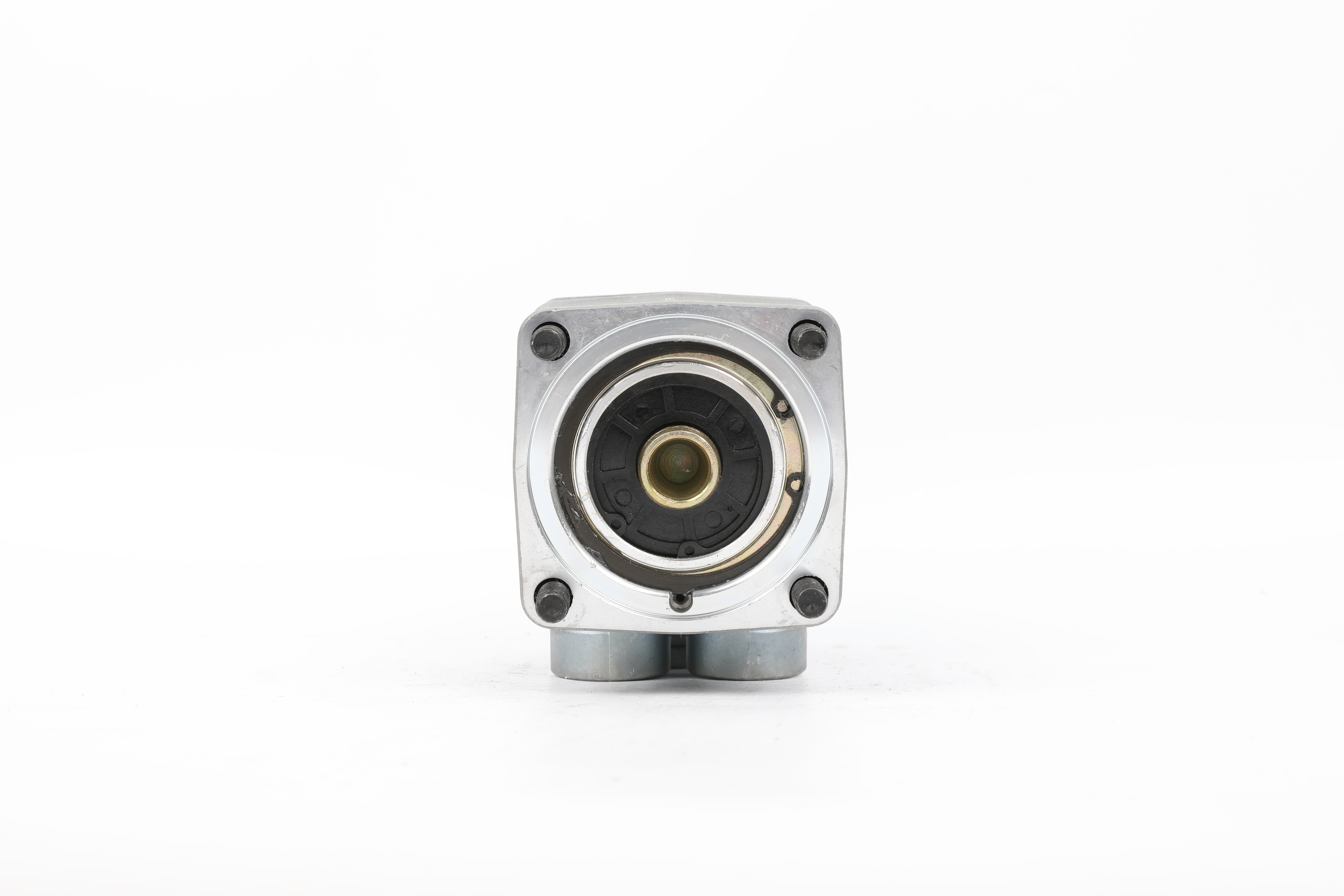

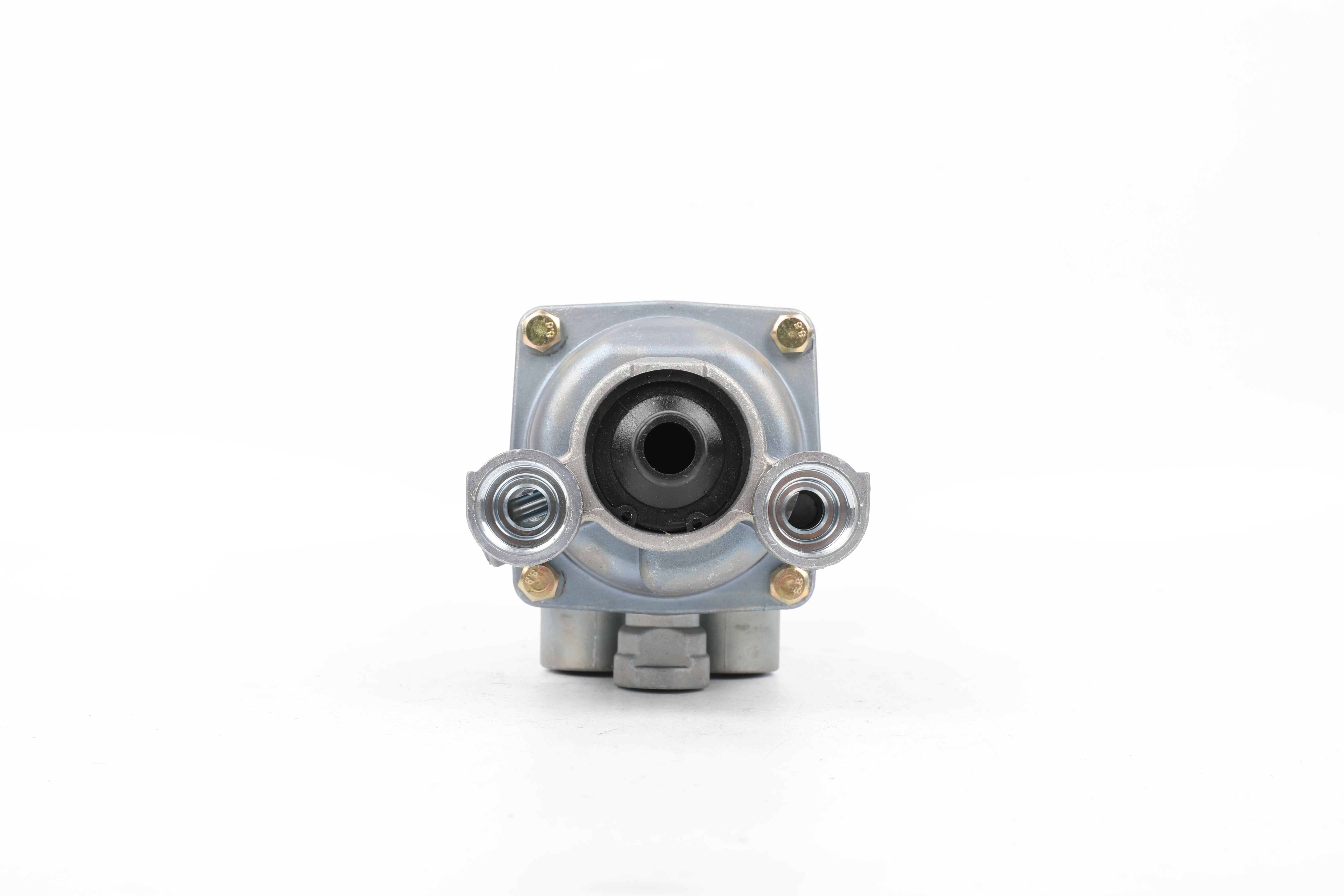

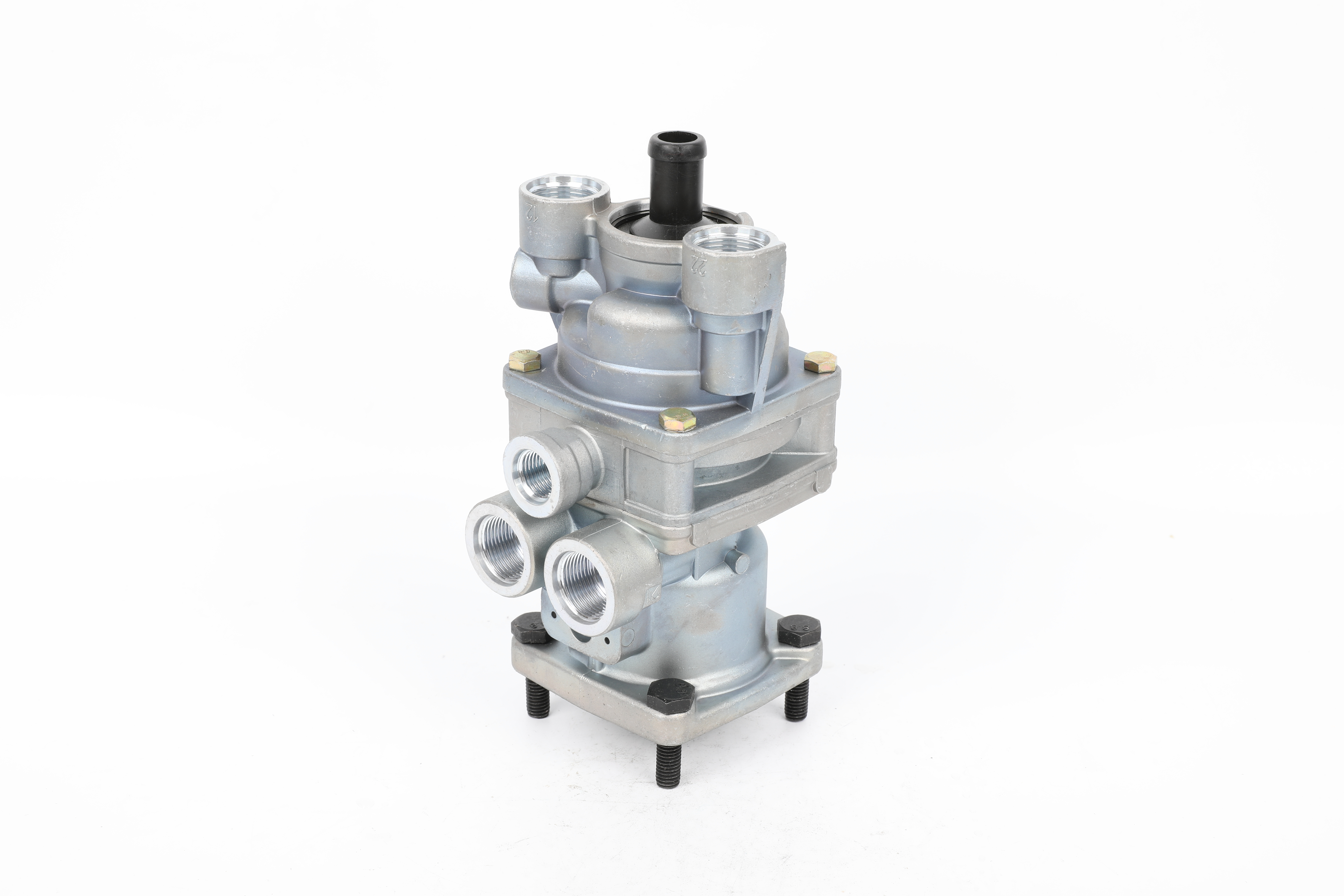

4613192700 Max. operating pressure:10.0 bar for daf,evobus,,mercedes-benz Custom

4613192700 Max. operating pressure:10.0 bar for daf,evobus,,mercedes-benz

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • How does an air brake foot valve work?
    When the brake pedal is depressed, air flows from the primary reservoir and through the primary portion of the dual-control foot valve to actuate the rear axle brakes. Meanwhile, air flows from the secondary reservoir, through the secondary portion of the dual-control foot valve, to actuate the front axle brakes.

    Comments:

    4 Studs M8x20

    For Voss push-in fittings:

    Distance between holes:

    61.0 x 61.0 mm

    Exhaust:

    Union

    Max. operating pressure:

    10.0 bar

    Mounting:

    4x M8

    Port thread 11:

    M22 x 1.5

    Port thread 12:

    M22 x 1.5

    Port thread 21:

    M22 x 1.5

    Port thread 22:

    M22 x 1.5

    Port thread 3:

    Union

    Port thread 4:

    M16x1.5 JED - 388

    Predominance:

    0.30 bar

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    1.9796

    Size (mm x mm x mm):

    98 x 200 x 101

    Weight (kg):

    1.3

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4613192700 Max. operating pressure:10.0 bar for daf,evobus,,mercedes-benz Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
