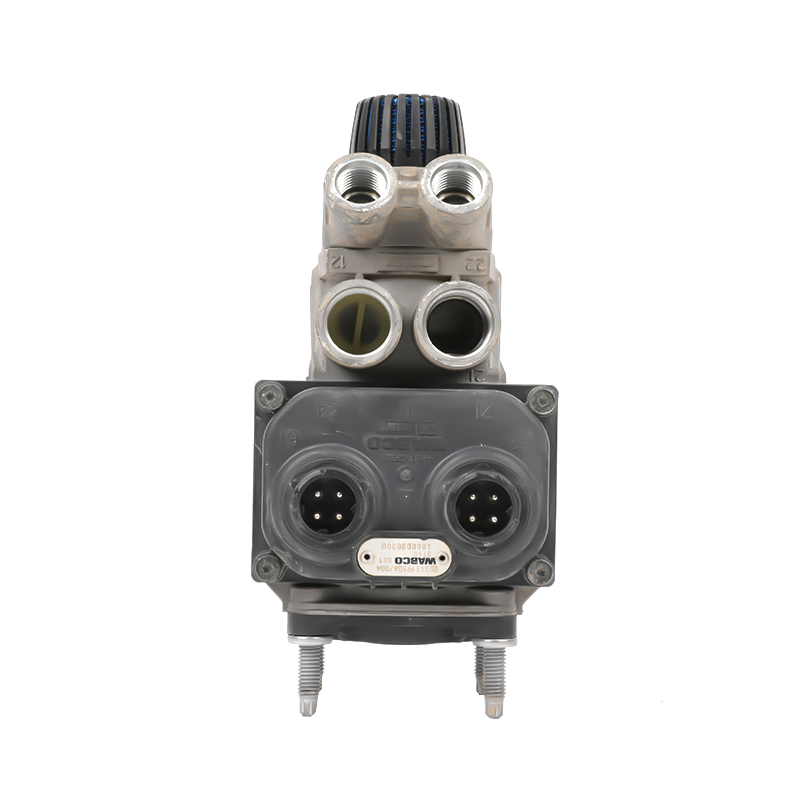

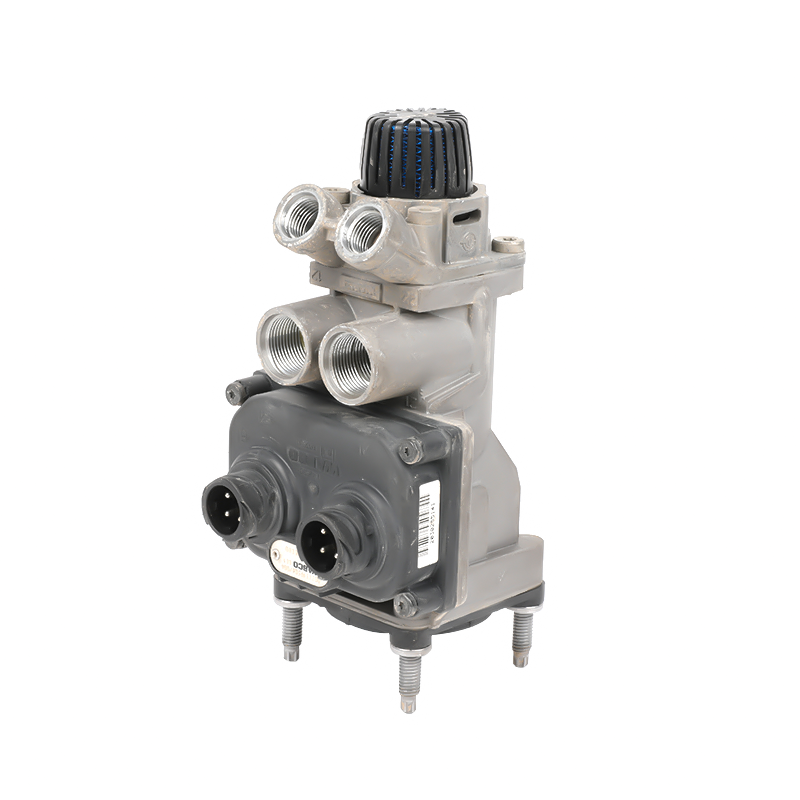

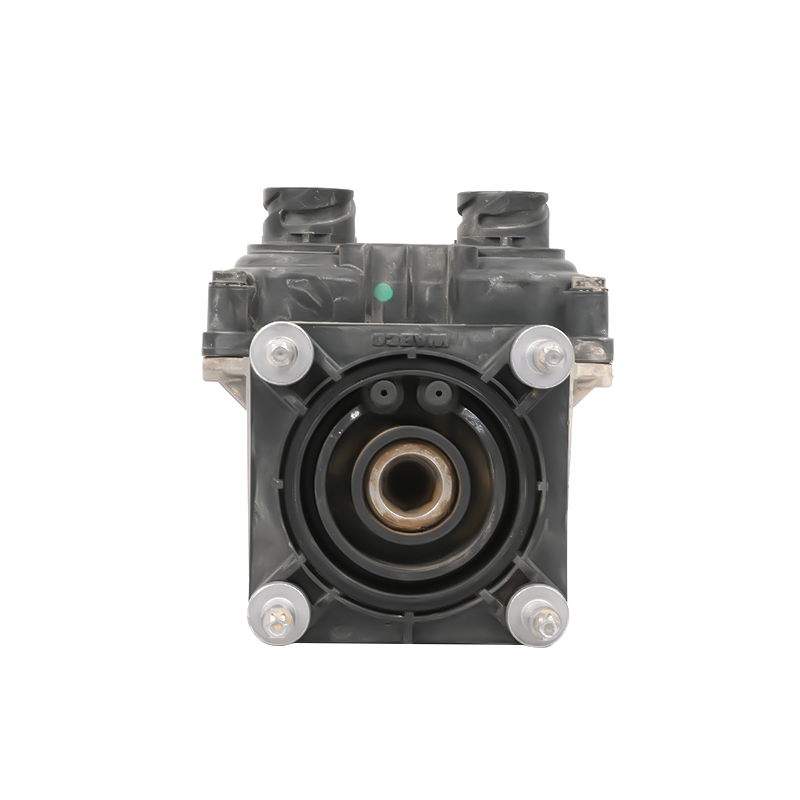

4800030000 For daewoo,evobus,mercedes-benz,paccar foot brake valve Custom

4800030000 For daewoo,evobus,mercedes-benz,paccar foot brake valve

4800030000 For daewoo,evobus,mercedes-benz,paccar foot brake valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message

  • What is a foot valve on a truck?
    Foot valves are attached to the brake pedal. This is the valve that actually starts the process of a brake application when you step on the brake pedal. Your foot valve may be mounted to the inside or outside of the firewall, or it may be mounted under the floor of the cab.

    Application：

    Daimler

    Distance between bolts：

    61.0 x 61.0 mm

    Electrical Connection：

    2x Bayonet DIN 72585 A1-4.1-Sn/K1

    Max. operating pressure：

    13.0 bar

    Mounting：

    4x M8

    Multi Nominal diameter (From Port 1 tox)：

    6.0 / 5.0 mm

    Output force：

    22000 N

    Port thread 11：

    M22 x 1.5 JED - 388-4

    Port thread 12：

    M16 x 1.5 JED - 388-4

    Port thread 21：

    M22x1.5 JED - 388-4

    Port thread 22：

    M16 x 1.5 JED - 388-4

    Port thread 3：

    Silencer

    Protection Class：

    IP 66, IP 69K

    Stroke：

    12.4 mm

    Temperature range：

    -40°C to +80°C

    Voltage：

    9 to 32 V

    Calculated Volume (dm³)：

    2.3229

    Size (mm x mm x mm)：

    211 x 101 x 109

    Weight (kg)：

    1.349

    Weight (lb)：

    2.974

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4800030000 For daewoo,evobus,mercedes-benz,paccar foot brake valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
