4640070110 levelling valve Custom

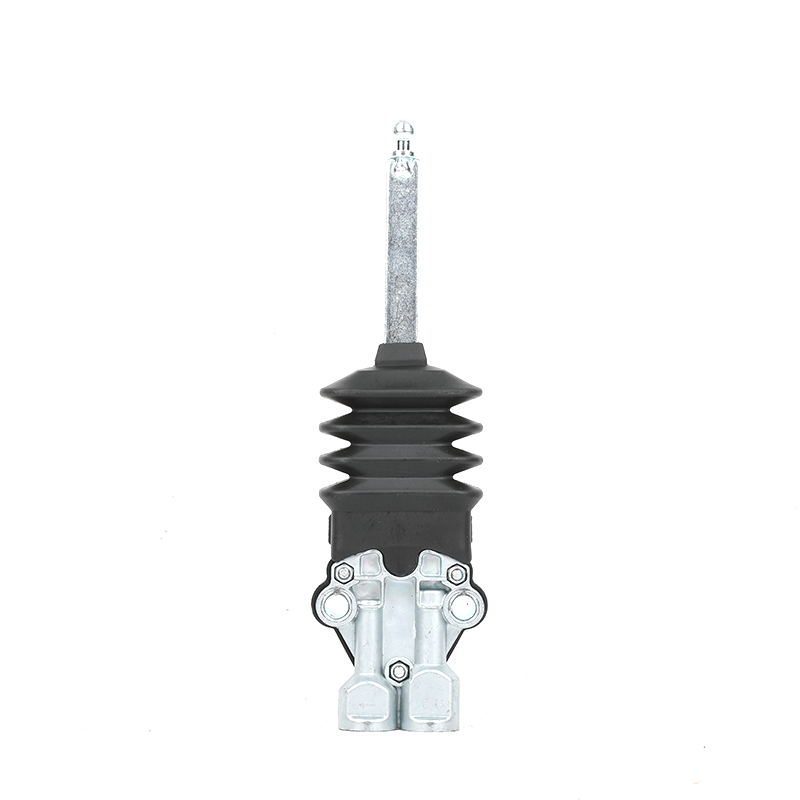

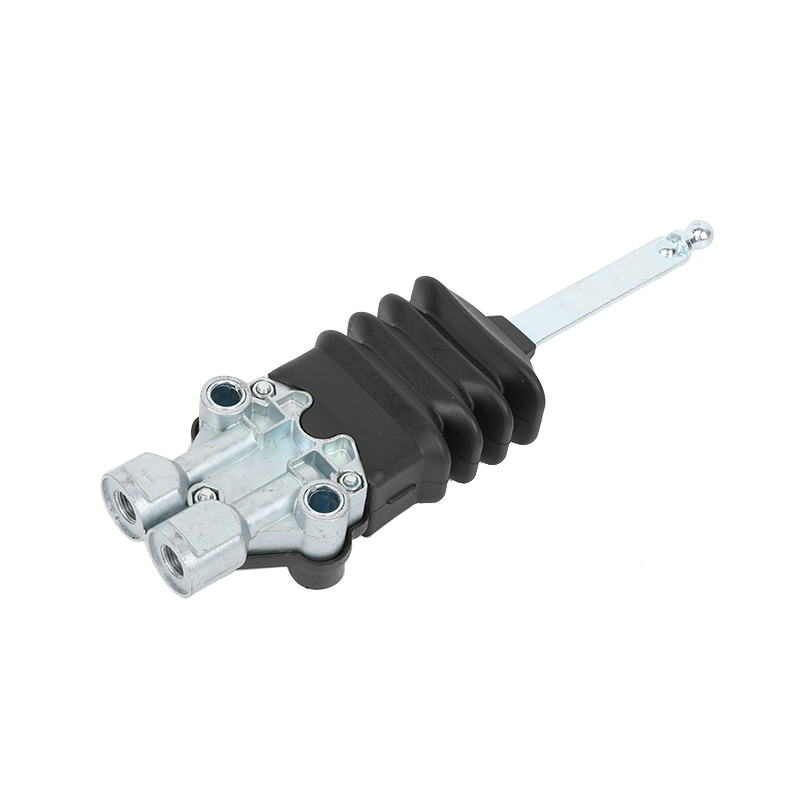

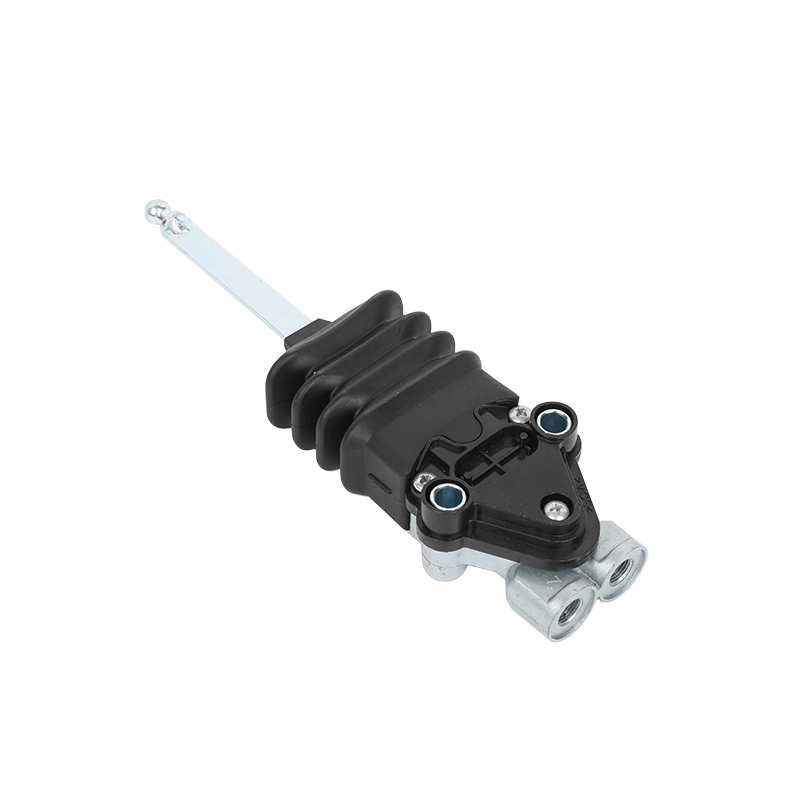

4640070110 levelling valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is a levelling valve?
    The function of the levelling valve is to maintain the car body on a set level, in order to safeguard a safe embarking or disembarking of passengers at the station and to increase the driving comfort by an optimum setting of the air suspension.

    Distance between holes:

    46.4 mm

    Length:

    R 195 mm

    Max. operating pressure:

    12.5 bar

    Mounting:

    2x Ø 8.5 mm

    Port thread 1:

    M10 x 1

    Port thread 2:

    M10 x 1

    Product category:

    Device

    Stroke of lever:

    ±30°

    Technical specification:

    OE specification

    Temperature range:

    -40°C to +80°C

    Type:

    With Lever

    Type of operation:

    Hole-lever Ø 6.5 mm

    Version:

    With one-way valve

    Calculated Volume (dm³):

    0.5434

    Size (mm x mm x mm):

    65 x 220 x 38

    Weight (kg):

    0.353

    Weight (lb):

    0.778

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4640070110 levelling valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
