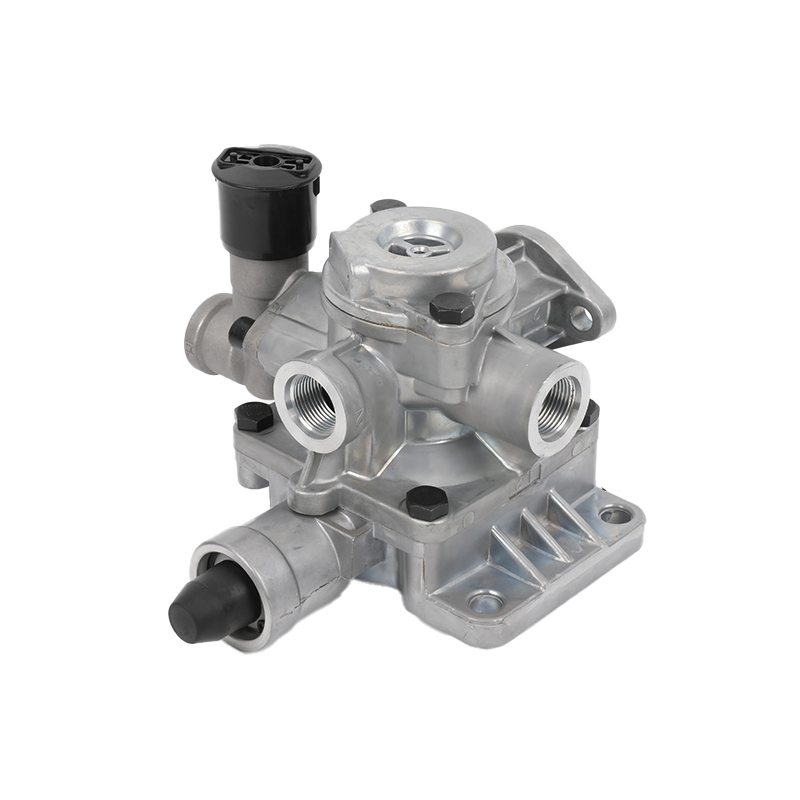

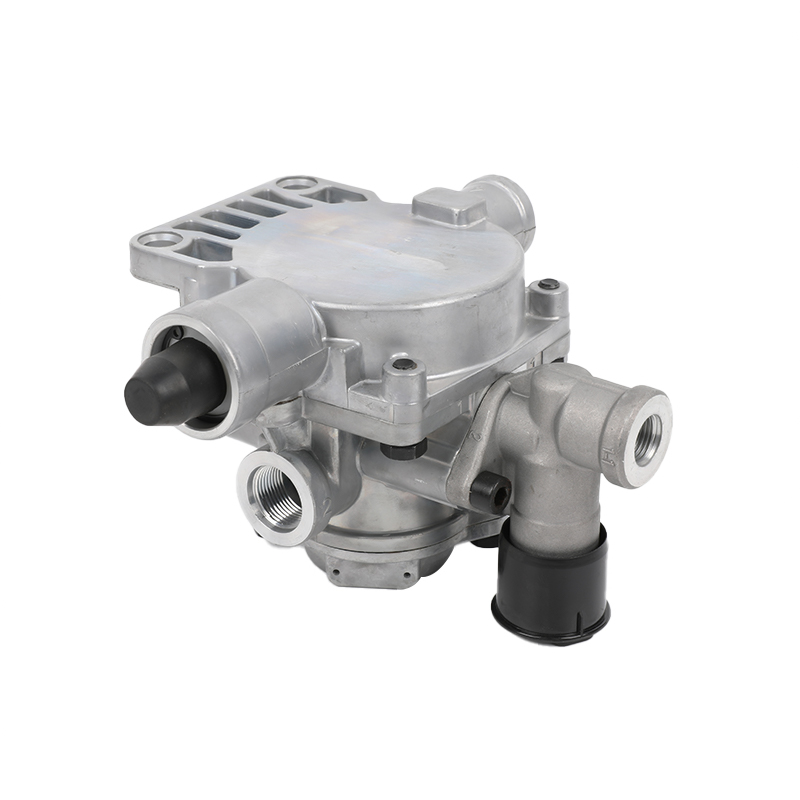

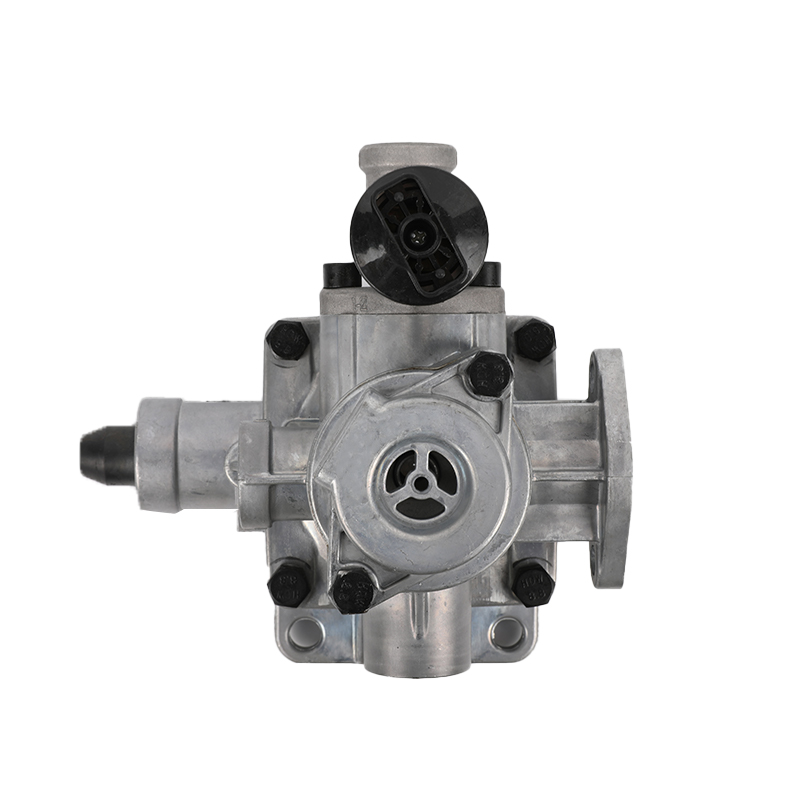

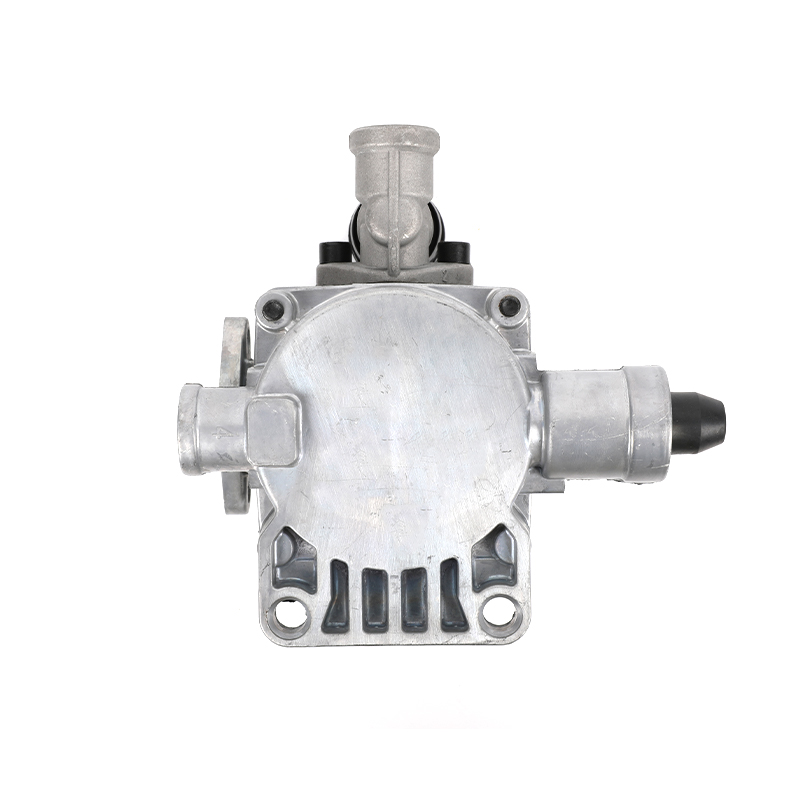

9710025310 Adjustable 0 to 1 bar for daf relay emergency valve Custom

9710025310 Adjustable 0 to 1 bar for daf relay emergency valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • The relay emergency valve has a one-way check valve that stops air in the reservoir from going back to the source of the supply. The driver has opened the trailer-supply valve to allow main-reservoir air pressure to be directed through the tractor protection valve to the trailer.

    Technical Specification:

    OE specification

    Adjustable Predominance

    Adjustable 0 to 1 bar

    Comments:

    Combination of 971 002 150 0 and release valve 963 001 012 0. Alternative

    Alternative:

    971 002 701 0 is the same except without flange for manual LSV

    Distance between holes:

    71.0 mm

    Max. operating pressure:

    10.0 bar

    Mounting:

    2x Ø 11.0 mm

    Port thread 1:

    M16 x 1.5

    Port thread 12:

    M22 x 1.5

    Port thread 2:

    2x M22 x 1.5

    Port thread 3:

    Flap Exhaust

    Port thread 4:

    M22 x 1.5

    Range of adjustment:

    1 bar

    Temperature rang:

    e-40°C to +80°C

    Type:

    With brake valve and Release valve

    Calculated Volume (dm³):

    4.6103

    Size (mm x mm x mm):

    184 x 174 x 144

    Weight (kg):

    1.61

    Weight (lb):

    3.5494

    Application:

     CASEIH,DAF,EVOBUS,FAYMONVILLE,FELDBINDER,FRUEHAUF,GOLDHOFER,KEMPF,KENWORTH,KRONE LANGENDORF,LIEBHERR,MERITOR,Meiller,NEOPLAN,ORTHAUS
    ,PETERBILT,SCANIA,SCHMITZ CARGOBULL,TEREX,VAN HOOL

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9710025310 Adjustable 0 to 1 bar for daf relay emergency valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
