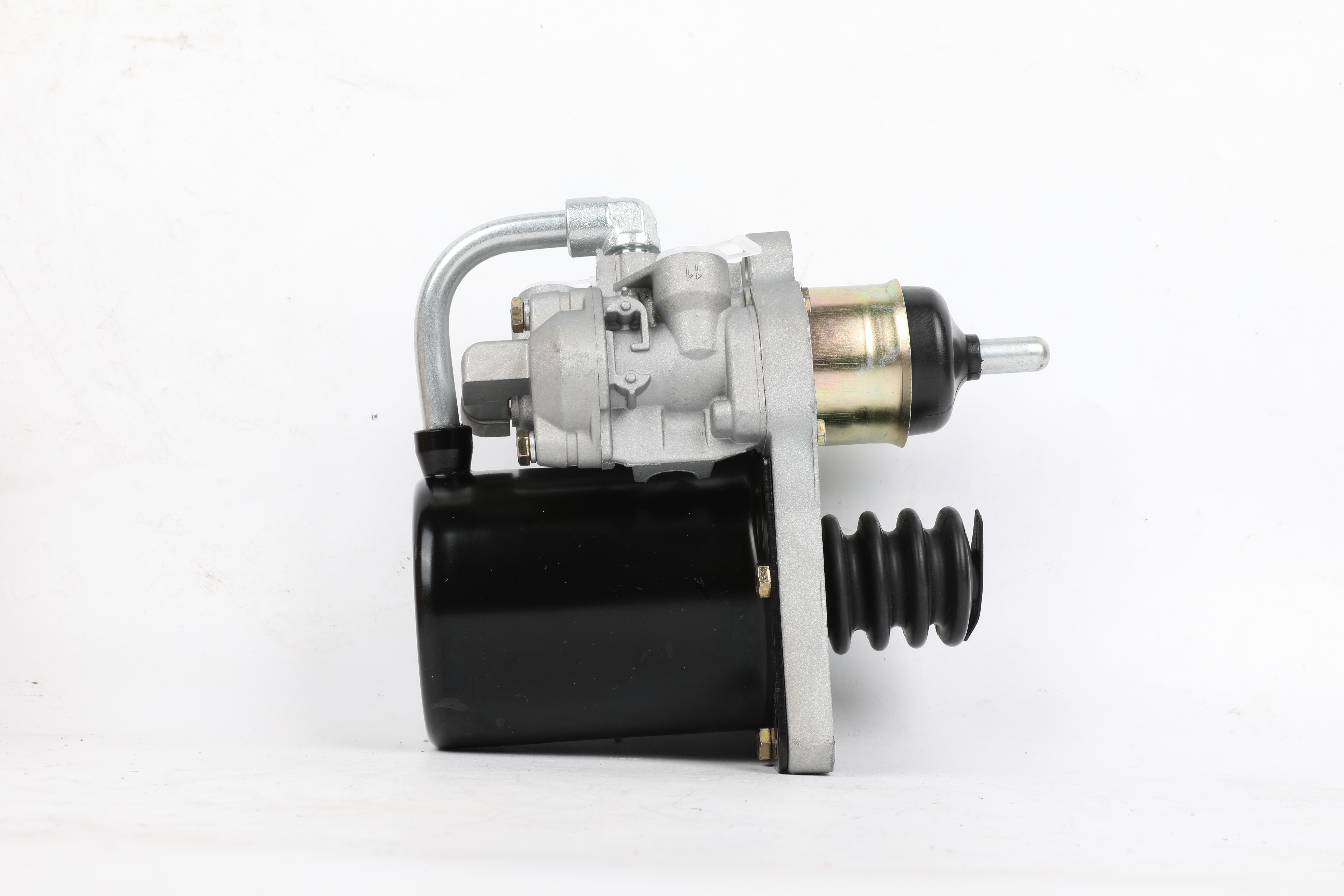

A0012956707 9700511310 Stroke:72.0 mm，max. operating pressure:10.0 bar clutch servo

Details
Type of vehicle
Leave a message

What is a clutch servo?
A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Product category:	Device
Comments:	MB ecosplit
Distance between holes:	115.0 mm
Length:	232 mm
Max. operating pressure:	10.0 bar
Mounting:	3x Ø 11.0 mm
Oil inlet:	Brake fluid SAE J 1703
Port Thread 1-4:	M14 x 1.5 ( E )
Port Thread 32:	Ø 8.0 mm
Port thread 11:	M16 x 1.5
Port thread 31:	Flap exhaust
Push-rod thread:	Ball Ø 12.0 mm
Stroke:	72.0 mm
Temperature range:	-40°C to +80°C
Calculated Volume (dm³):	4.938
Size (mm x mm x mm):	181 x 220 x 124
Weight (kg):	2.834
Weight (lb):	6.2479
Application:	For Daf, Evobus, Mercedes-Benz, Van Hool, Dimetal
