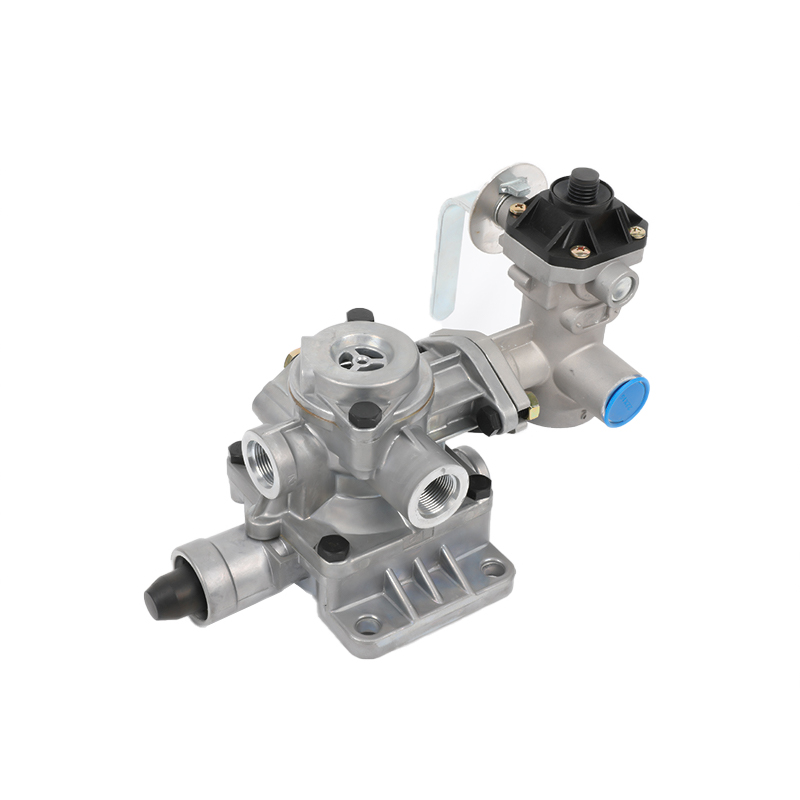

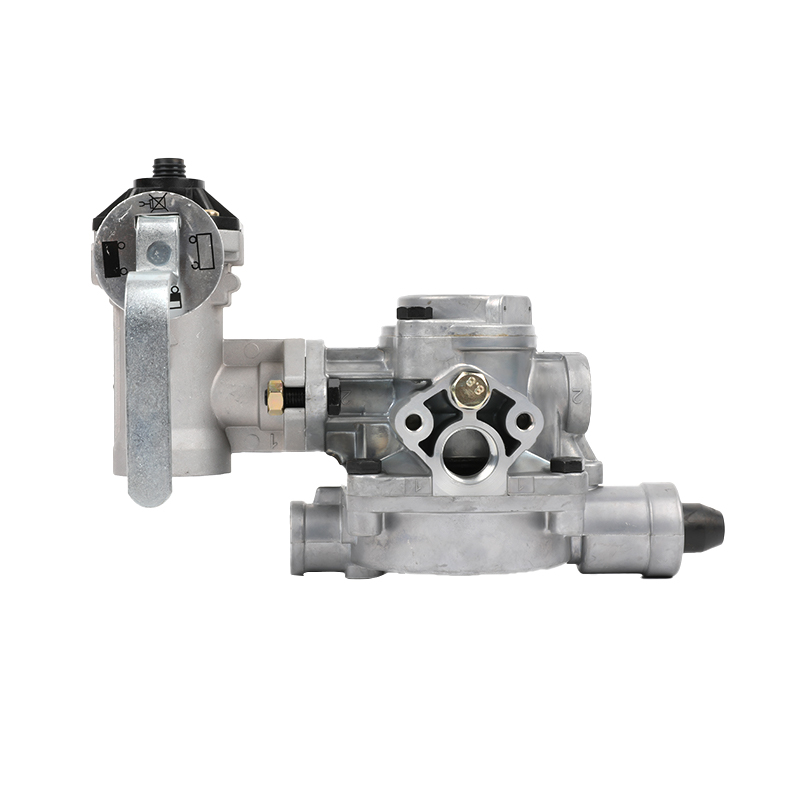

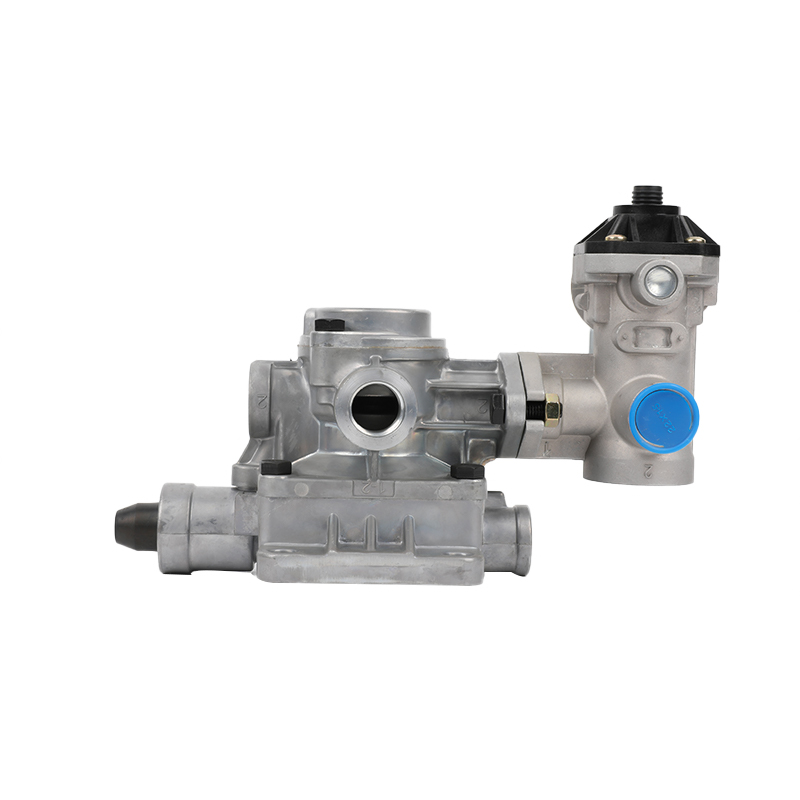

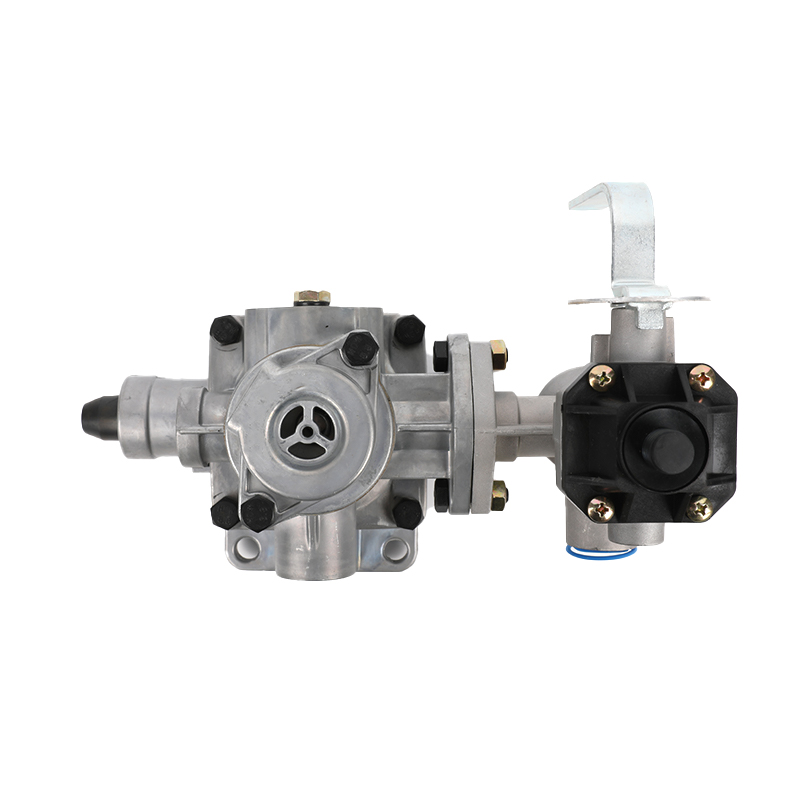

9710025700 Max. operating pressure 10.0 bar for scania, daf relay emergency valve Custom

9710025700 Max. operating pressure 10.0 bar for scania, daf relay emergency valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • The relay emergency valve controls the air brake system of a trailer and provides the "emergency brake function". It's not needed in case the installation contains already a park and shunt valve like TEM, TrCM or TrCM+ with this function.

    Adjustable Predominance:

     Adjustable 0 to 1 bar

    Comments:

     Combination of 971 002 150 0 and manual LSV 475 604 011 0

    Distance between holes:

    71.0 mm

    Max. operating pressure:

     10.0 bar

    Mounting

    2x Ø 11.0 mm

    Port thread 1

    M22 x 1.5

    Port thread 12

    M22 x 1.5

    Port thread 2

    M22 x 1.5

    Port thread 3

    Flap Exhaust

    Port thread 4

    M22 x 1.5

    Range of adjustment

    1 bar

    Temperature range

    -40°C to +80°C

    Type

    With brake valve and Apportioning valve

    Calculated Volume (dm³)

    5.7648

    Size (mm x mm x mm)

    266 x 126 x 172

    Weight (kg)

    2.15

    Weight (lb)

    4.7399

    Application:

    DAF,GOLDHOFER,JOHN DEERE,KEMPF,KENWORTH,KRONE,LANGENDORF,MERITOR,NEOPLAN,PETERBILT,Ppt,Ritec,SCANIA,SCHMITZ CARGOBULL

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9710025700 Max. operating pressure 10.0 bar for scania, daf relay emergency valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
