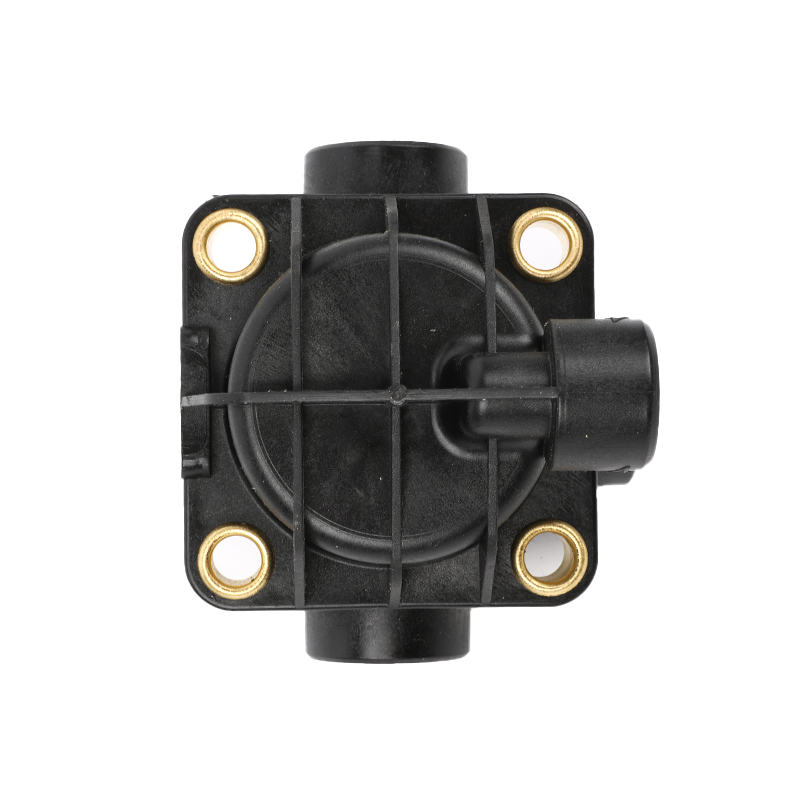

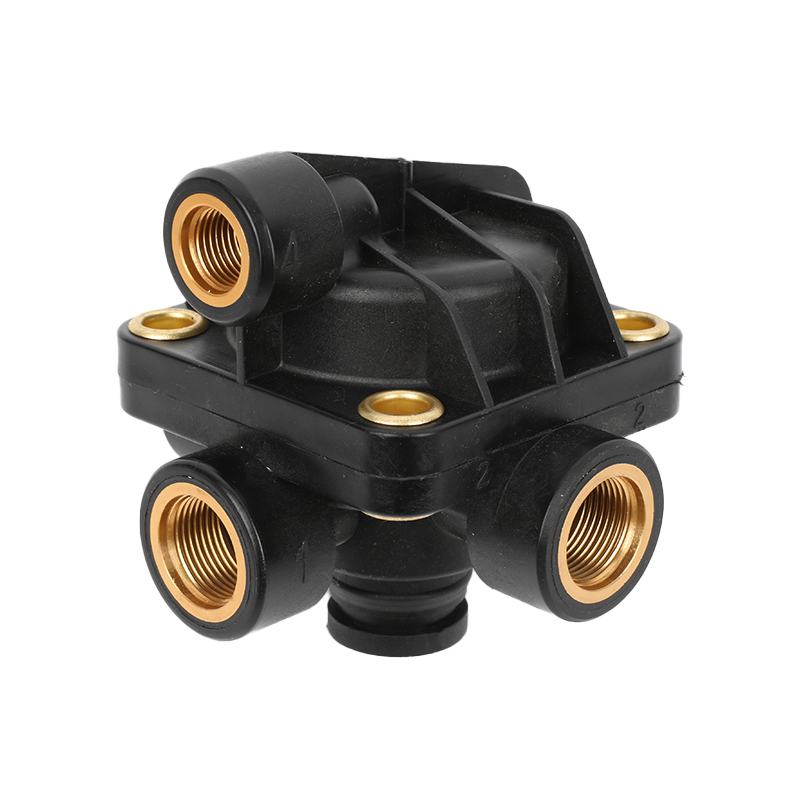

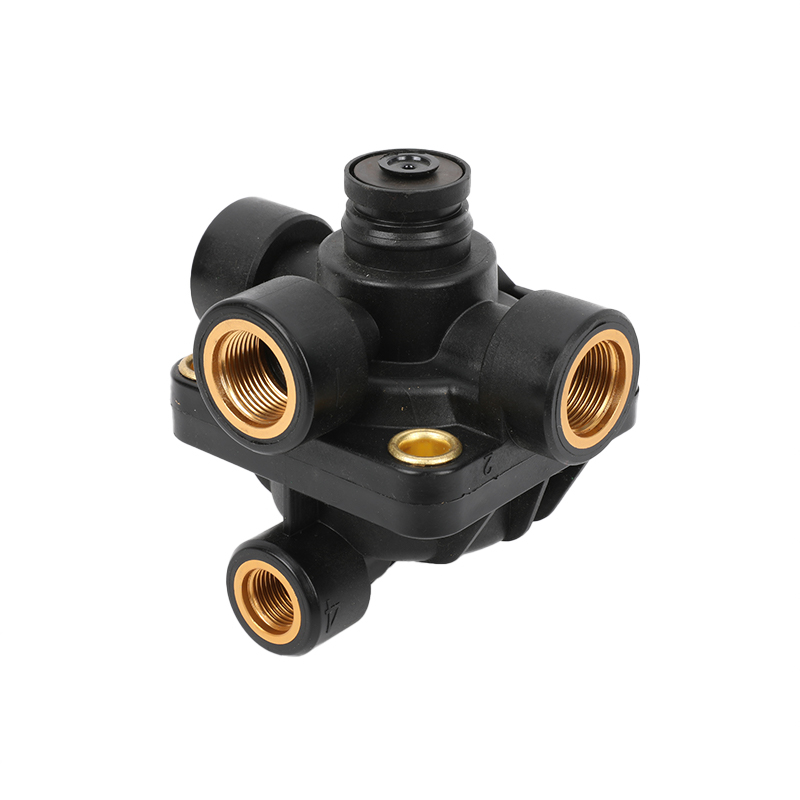

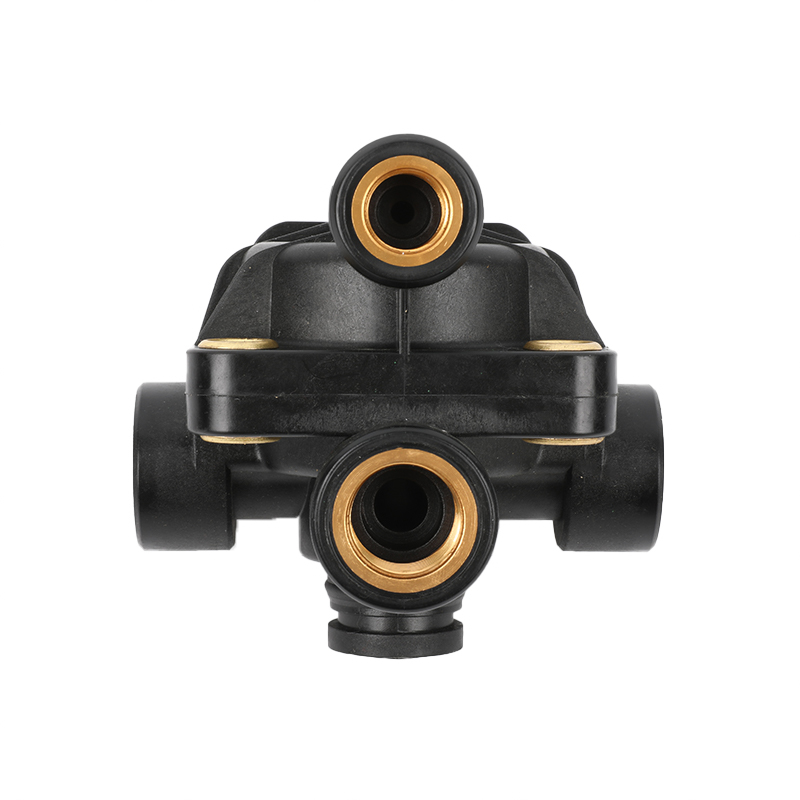

9730060000 Opening pressure 0.9 bar for daf,man relay valve

Details
Type of vehicle
Leave a message

A relay valve is an air-operated valve typically used in air brake systems to remotely control the brakes at the rear of a heavy truck or semi-trailer in a tractor-trailer combination.

Exhaust：	Snap on contour JED - 463
Max. operating pressure：	10.0 bar
Opening pressure：	0.9 bar
Port thread 1：	M22 x 1.5
Port thread 2：	M16 x 1.5
Port thread 4：	M16 x 1.5
Predominance：	0.20 bar
Regulating ratio：	11
Temperature range：	-40°C to +80°C
Version：	Pressure reduction
Calculated Volume (dm³)：	0.78174
Size (mm x mm x mm)：	86 x 90 x 101
Weight (kg)：	0.377
Application:	DAF,FELDBINDER,IRISBUS,IVECO,KEMPF,LANGENDORF,MAN,NEOPLAN,PACCAR,RENAULT,SCANIA
