AC598C Knorr trailer control valve for renault trucks Custom

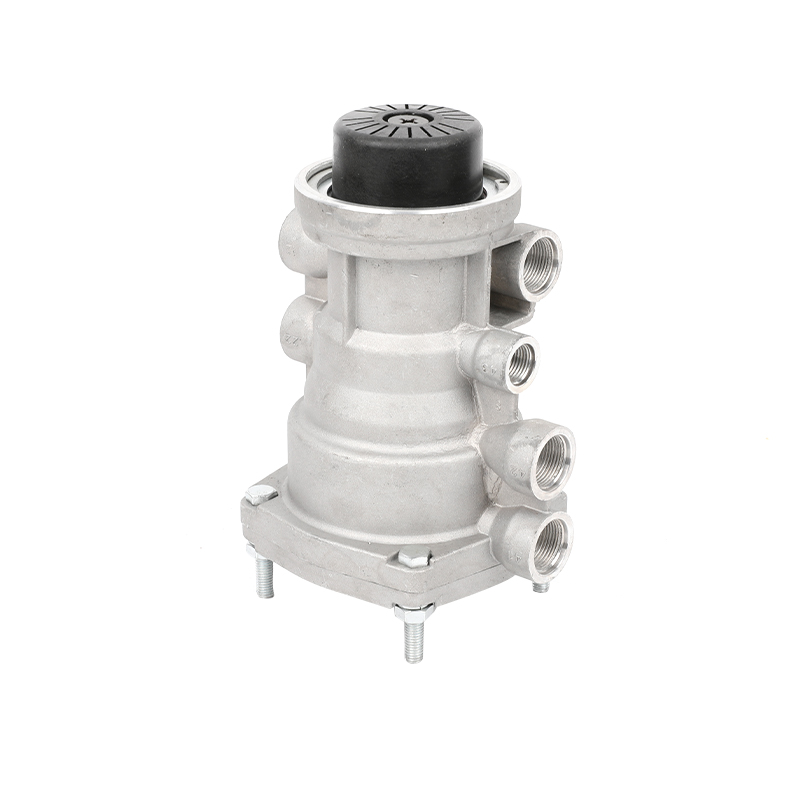

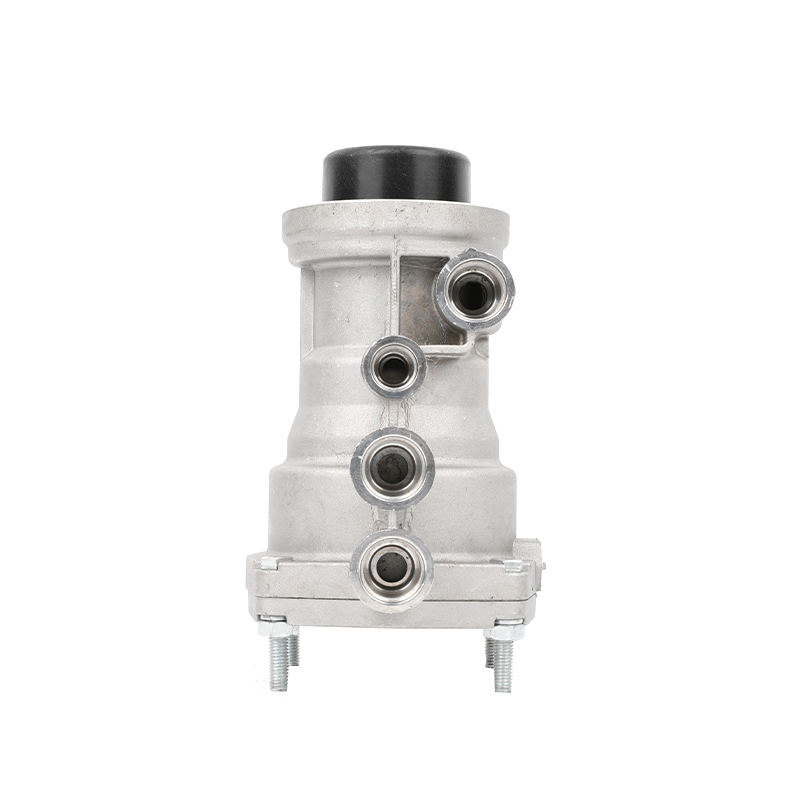

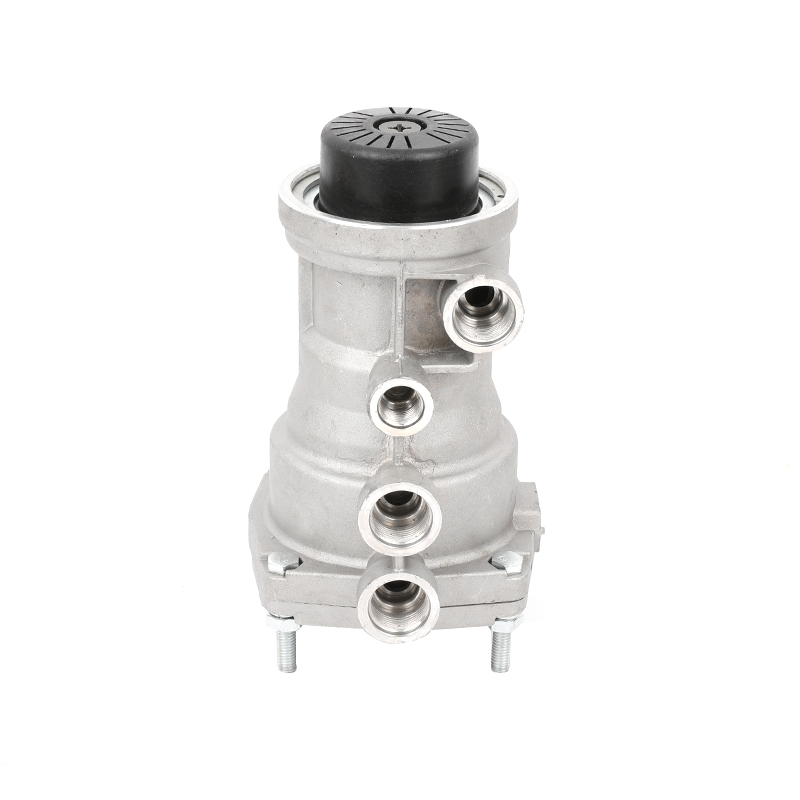

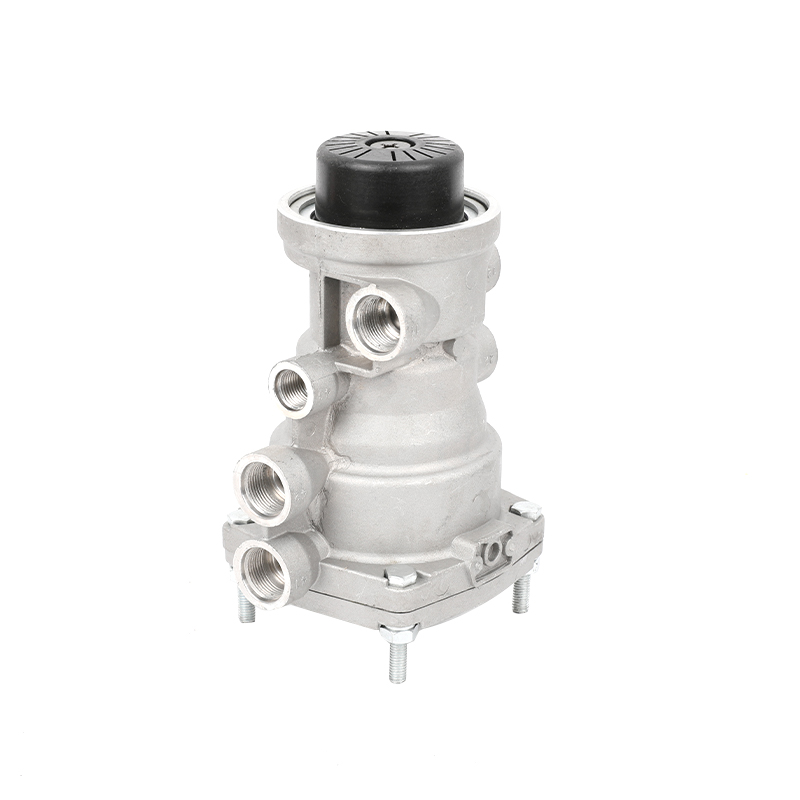

AC598C Knorr trailer control valve for renault trucks

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Circuit limitation pressure 4:

    8,5 bar

    Circuit opening pressure 1

    7,5 bar (by-pass)

    Circuit opening pressure 2

    7,5 bar (by-pass)

    Circuit opening pressure 3

    8,0 bar

    Circuit opening pressure 4

    8,0 bar

    Connection 1

    M16x1,5

    Connection 21

    M16x1,5

    Connection 22

    M16x1,5

    Connection 23

    M16x1,5

    Connection 24

    M16x1,5

    Connection 26

    M22x1,5

    Safety device

    Si

    Weight

    1956.00 g

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom AC598C Knorr trailer control valve for renault trucks Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
