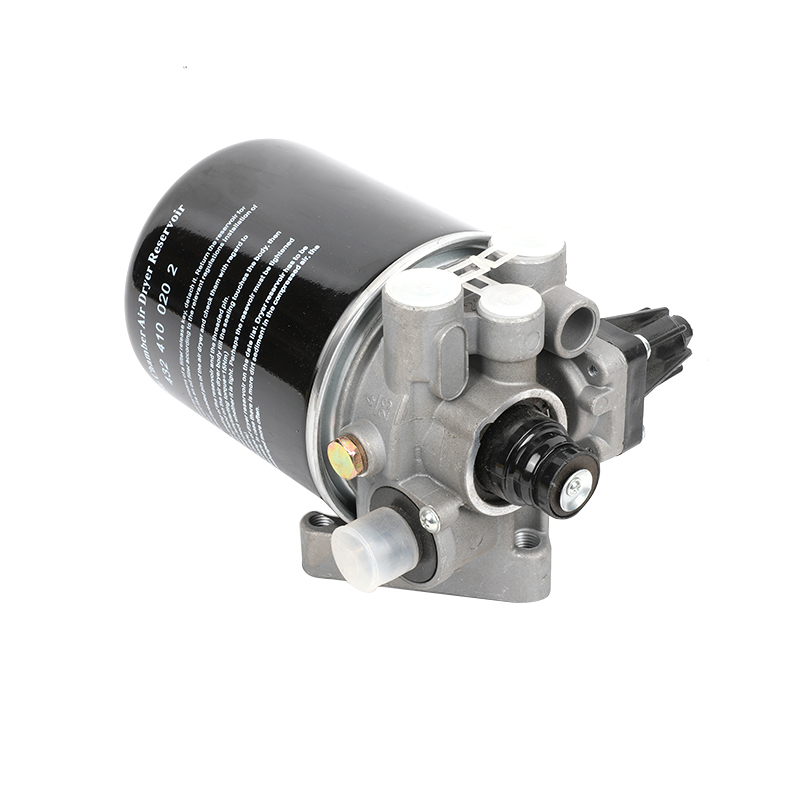

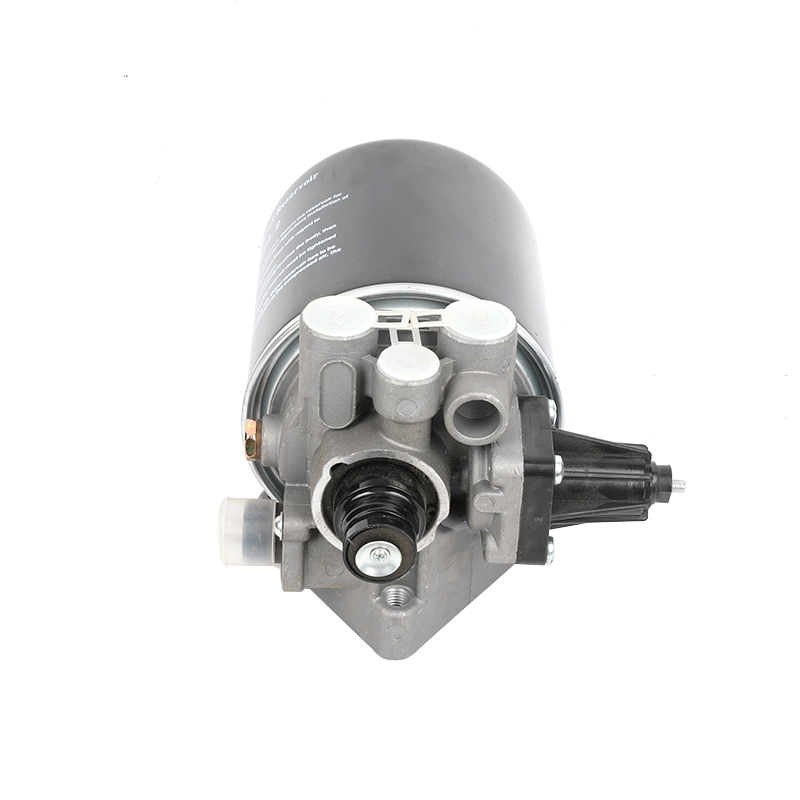

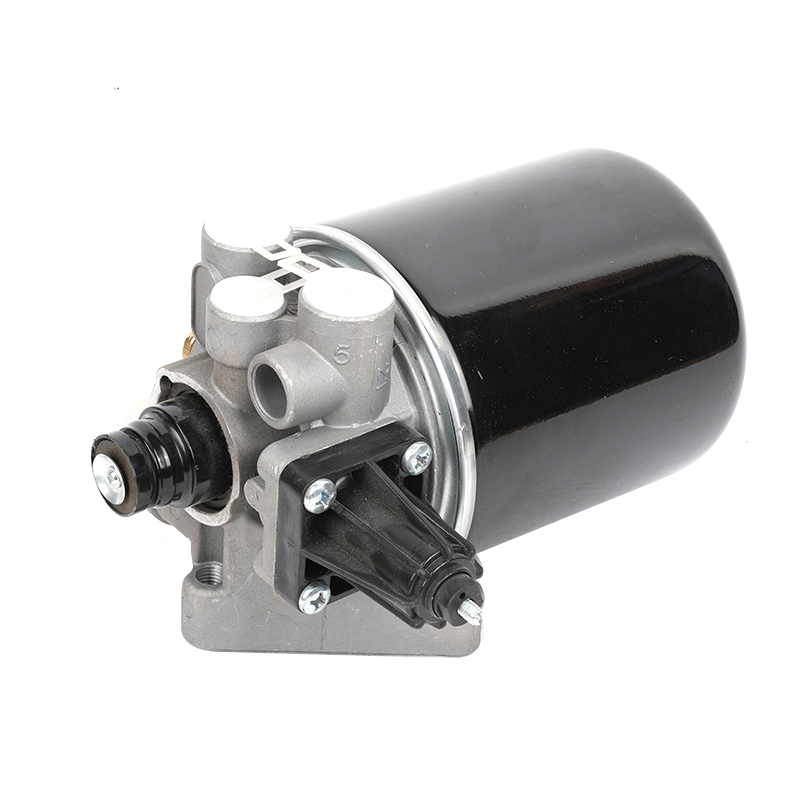

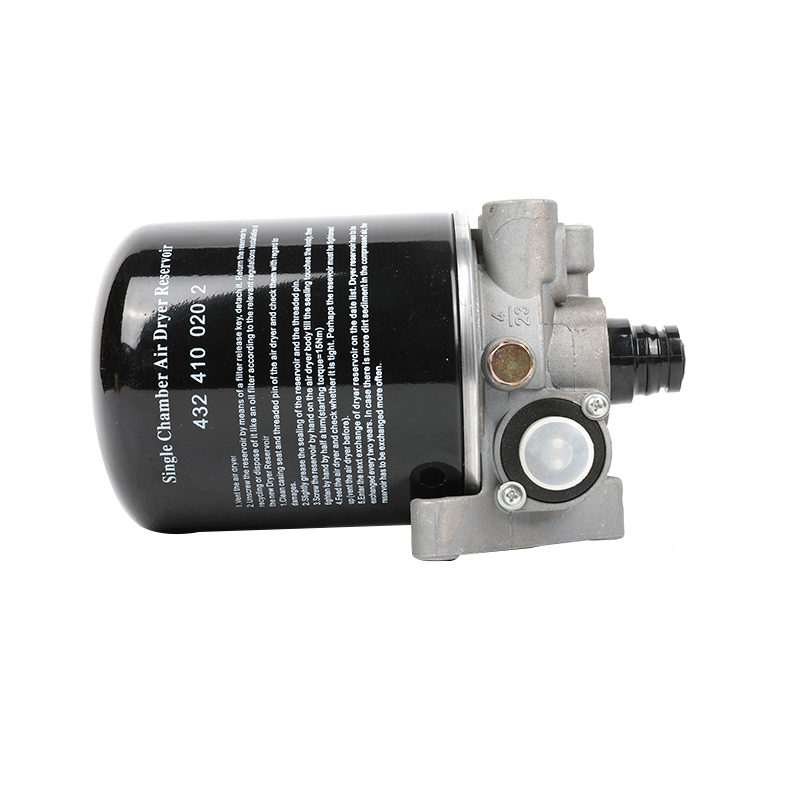

4324101020 max. operating pressure13.0 bar single chamber air dryer Custom

4324101020 max. operating pressure13.0 bar single chamber air dryer

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • How does an air dryer work on a big truck?
    Air is heated as it's compressed, and it cools as it travels through the discharge line to the air tank. This cooling results in condensation creating pools of water in the bottom of the truck's air tanks.

    Cartridge type:

    Standard Desiccant Cartridge

    Cut-out pressure:

    117.48 psi

    Heater:

    894 260 040 2

    Heating connection:

    Kostal M27 x 1

    Max. operating pressure:

    188.5 psi

    Operational range:

    8.70+5.80 psi

    Port thread 1:

    M22 x 1.5

    Port thread 21:

    M22 x 1.5

    Port thread 22:

    M12 x 1.5

    Silencer:

    No (432 407 012 0 retrofittable)

    Temperature range:

    -40°F to +149°F

    Unloader:

    Yes

    Voltage:

    24 V

    Calculated Volume (dm³):

    7.1169

    Size (mm x mm x mm):

    253 x 145 x 194

    Weight (kg):

    4.23

    Weight (lb):

    9.3255

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4324101020 max. operating pressure13.0 bar single chamber air dryer Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
