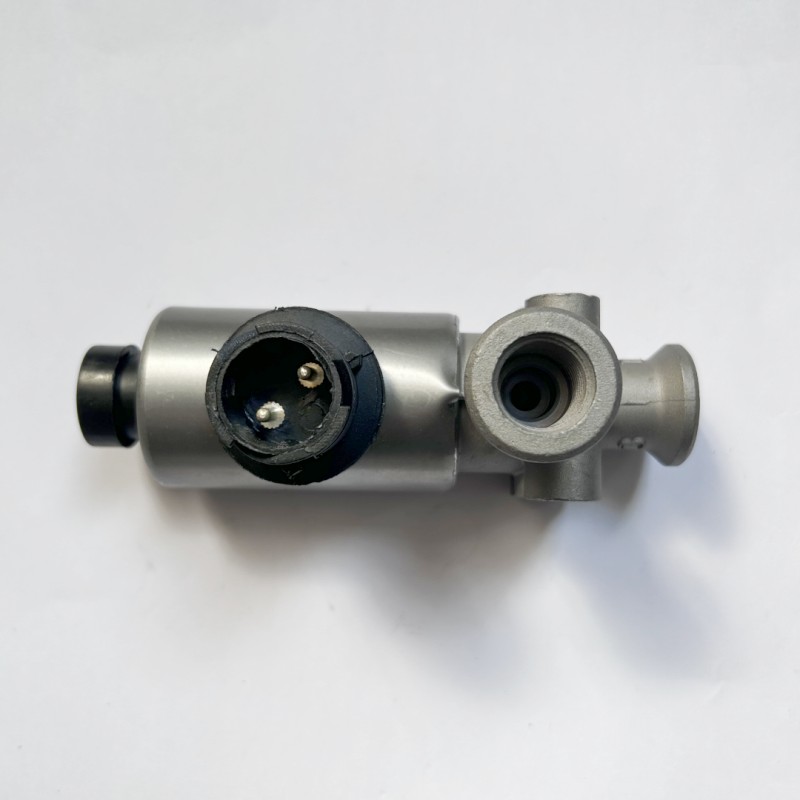

SOLENOID VALVE 3/2 4720706390 Max. operating pressure13.0 bar Custom

SOLENOID VALVE 3/2 4720706390 Max. operating pressure13.0 bar

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • SOLENOID VALVE 3/2 4720706390 Max. operating pressure13.0 bar

    Part type :Premium original quality

    Cooling :Air

    Electrical connection :Bayonet DIN 72 585 A1-2.1-Sn/K2

    Exhaust :4.0 mm

    Max. operating pressure :13.0 bar

    Multi nominal diameter (from port 1 to x) :4 mm

    Nominal diameter :4.0 mm

    Port thread 1 :M16 x 1.5 JED 388

    Port thread 2 :M16 x 1.5 JED - 388

    Product category :Device

    Protection class :IP 6K6 / IP 6K9K

    Push-rod thread :M16 x 1.5

    Rated current :690 mA

    Technical specification :OE specification

    Temperature range :-40°C to +80°C

    Type Normally :closed

    Voltage :24 V

    Calculated Volume (dm³) :0.305

    Size (mm x mm x mm) :63 x 121 x 40

    UPC 193133442967

    Weight (kg) :0.543

    Weight (lb) :1.1971

    DAF 1506134

    EVOBUSA 0059971236

    KENWORTHS 472-070-639-0

    MACK 6300-4720706390

    MERCEDES-BENZ 0059971236

    MERCEDES-BENZ A0059971236

    MERITORS 4720706390

    PACCAR 1506134

    PETERBILTS 472-070-639-0

    VOLVOWAB 4720706390

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom SOLENOID VALVE 3/2 4720706390 Max. operating pressure13.0 bar Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
