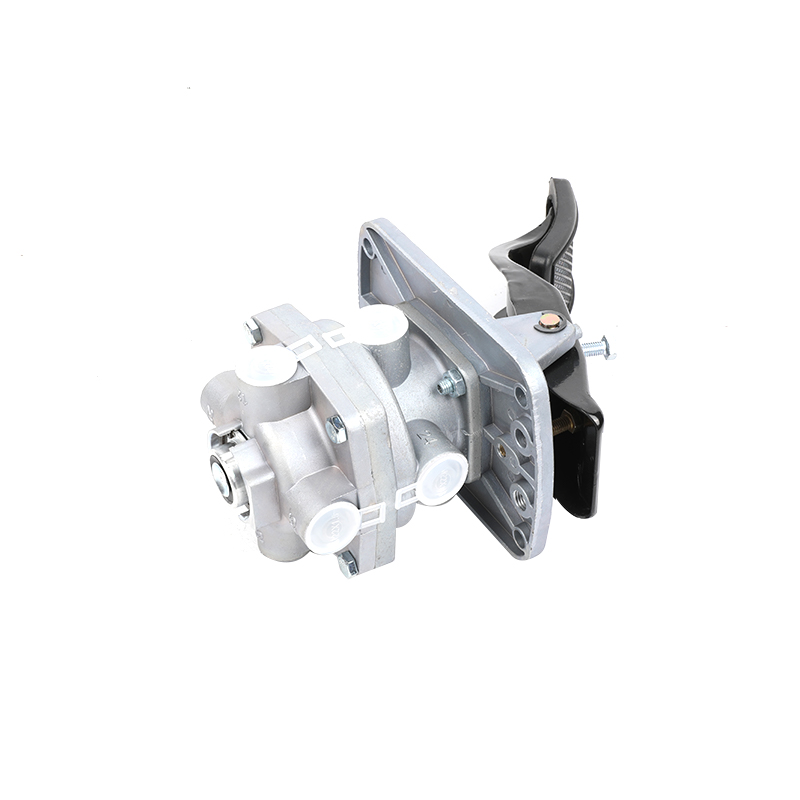

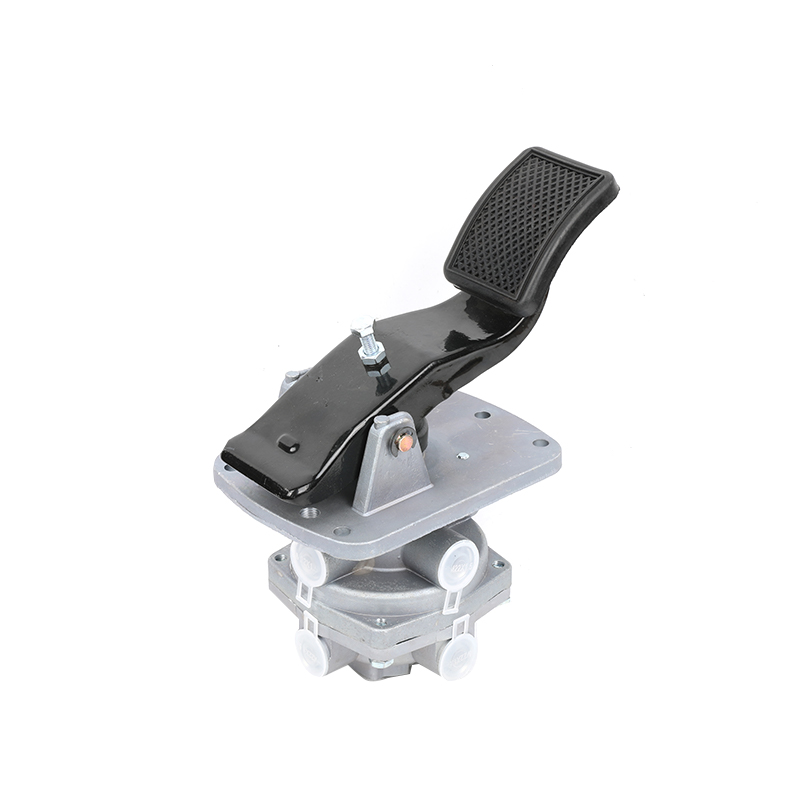

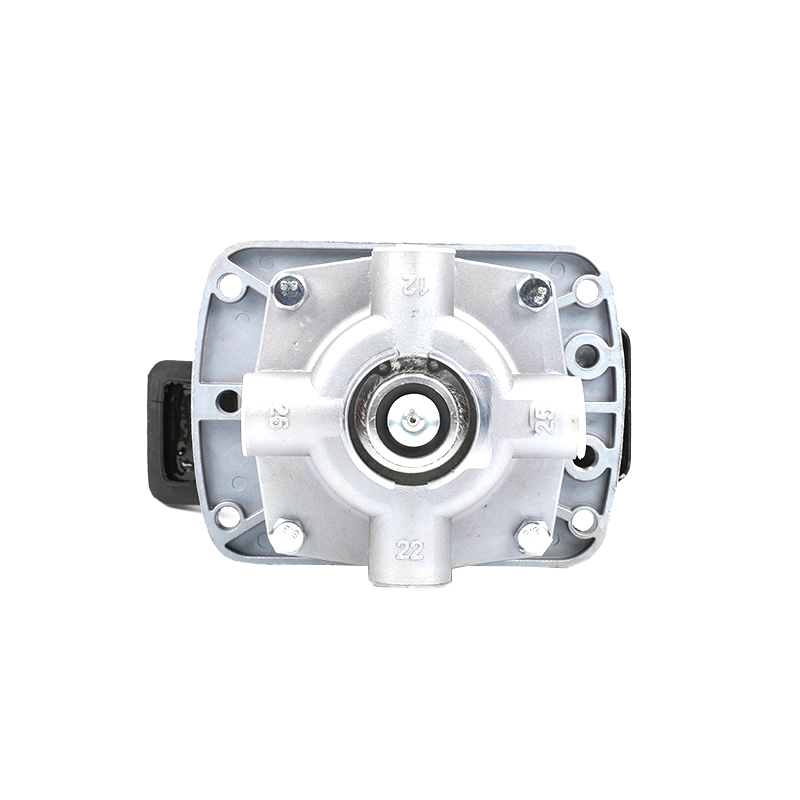

4613072000 Exhaust:flap fordaf,dimetal,dimetal,evobus foot brake valve Custom

4613072000 Exhaust:flap fordaf,dimetal,dimetal,evobus foot brake valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Product Category:

    Device

    Actuation:

    4613147902

    Basic Valve:

    4613074790

    Distance between holes:

    95.0 x 148.0 mm

    Exhaust:

    Flap

    Max. operating pressure:

    8.0 bar

    Mounting:

    3x Ø 9.5 mm

    Nominal diameter:

    12.0 mm

    Pedal angle:

    35°

    Port thread 11:

    M22 x 1.5

    Port thread 12:

    M22 x 1.5

    Port thread 21:

    M22 x 1.5

    Port thread 22:

    M22 x 1.5

    Predominance:

    0.25 bar

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    8.8524

    Size (mm x mm x mm):

    328 x 197 x 137

    Weight (kg):

    2.643

    Weight (lb):

    5.8268

    Application:

    DAF,Dimetal,Dimetal,EVOBUS,MAN,MERCEDES-BENZ,NEOPLAN,NISSAN,UD TRUCKS,VOLVO

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4613072000 Exhaust:flap fordaf,dimetal,dimetal,evobus foot brake valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
