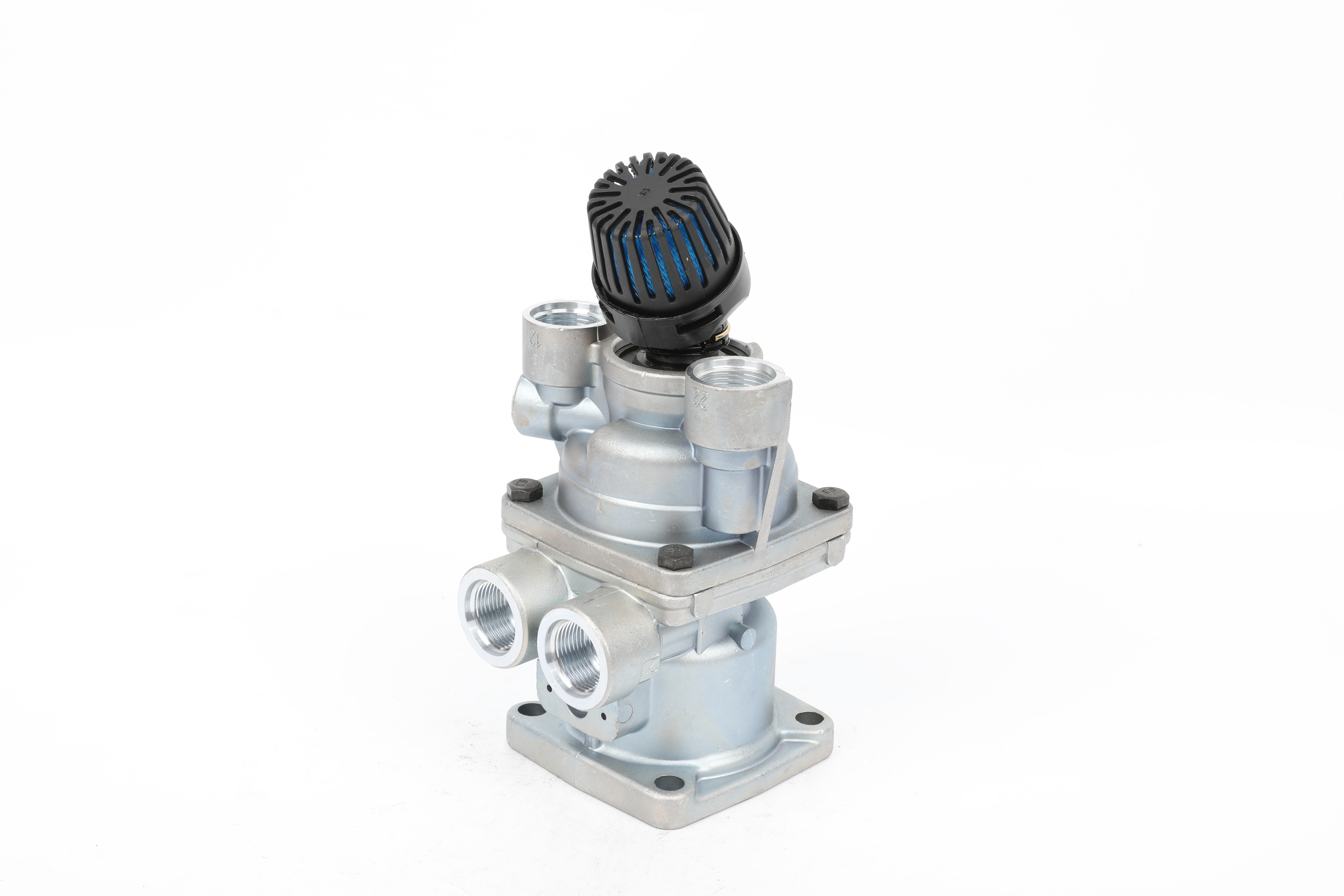

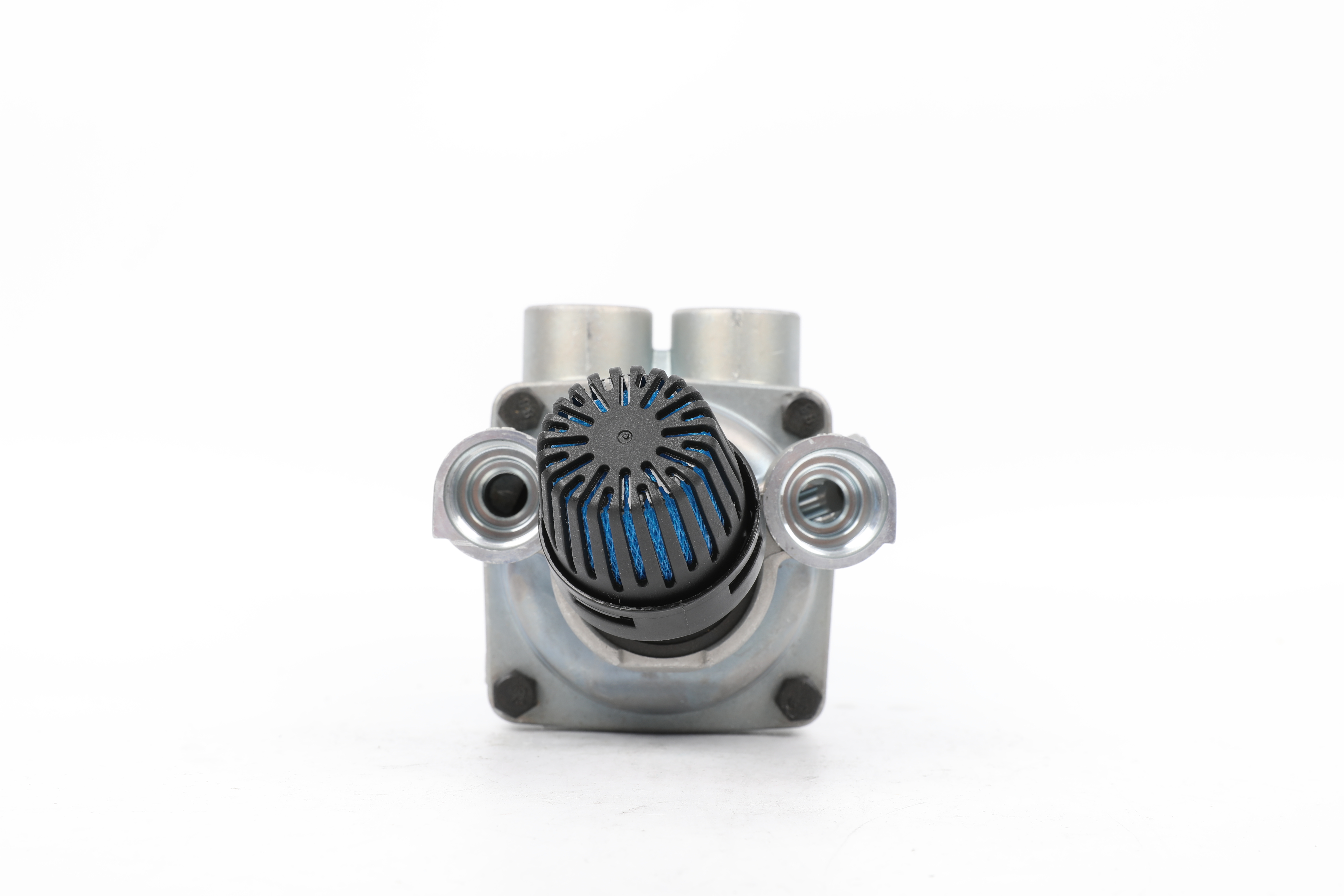

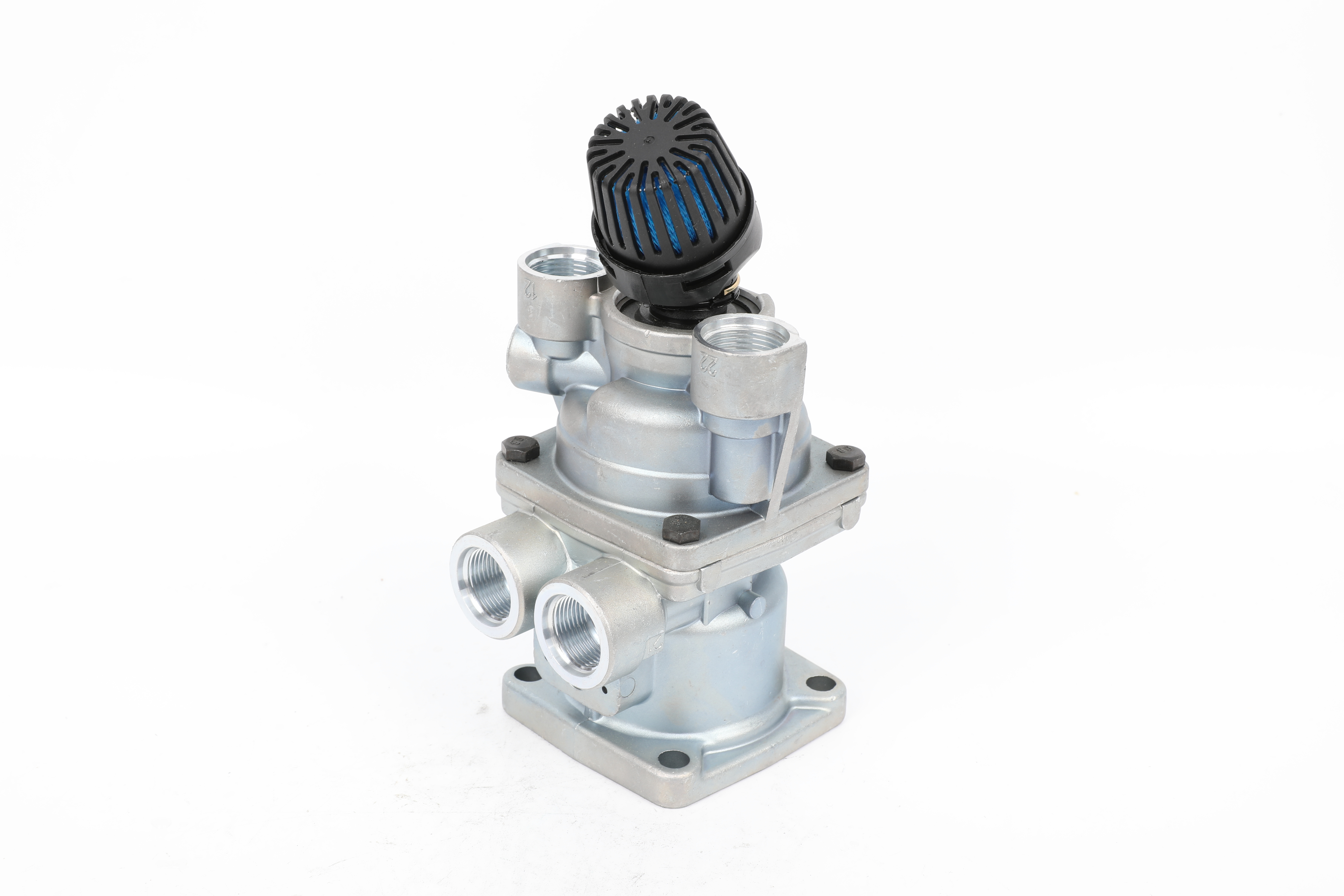

4613152640 Max. operating pressure12.0 bar foot brake valve Custom

4613152640 Max. operating pressure12.0 bar foot brake valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • The foot brake valve is used to actuate and control the brakes on all wheels when the vehicle is in motion. The common reference is to the service brake control valve.

    Technical Specification:

    OE specification

    Distance between holes:

    61.0 x 61.0 mm

    Exhaust:

    Silencer

    Max. operating pressure:

    12.0 bar

    Mounting:

    4x M8

    Port thread 11:

    M22 x 1.5

    Port thread 12:

    M22 x 1.5

    Port thread 21:

    M22 x 1.5

    Port thread 22:

    M22 x 1.5

    Port thread 3:

    Silencer

    Port thread 4:

    M16x1.5 JED - 388

    Predominance:

    0.50 bar

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    2.2058

    Size (mm x mm x mm):

    104 x 210 x 101

    Weight (kg):

    1.182

    Weight (lb):

    2.6059

    APPLICATION:

    DAF,EVOBUS,MERCEDES-BENZ,PACCAR,SCHWARZMÜLLER
