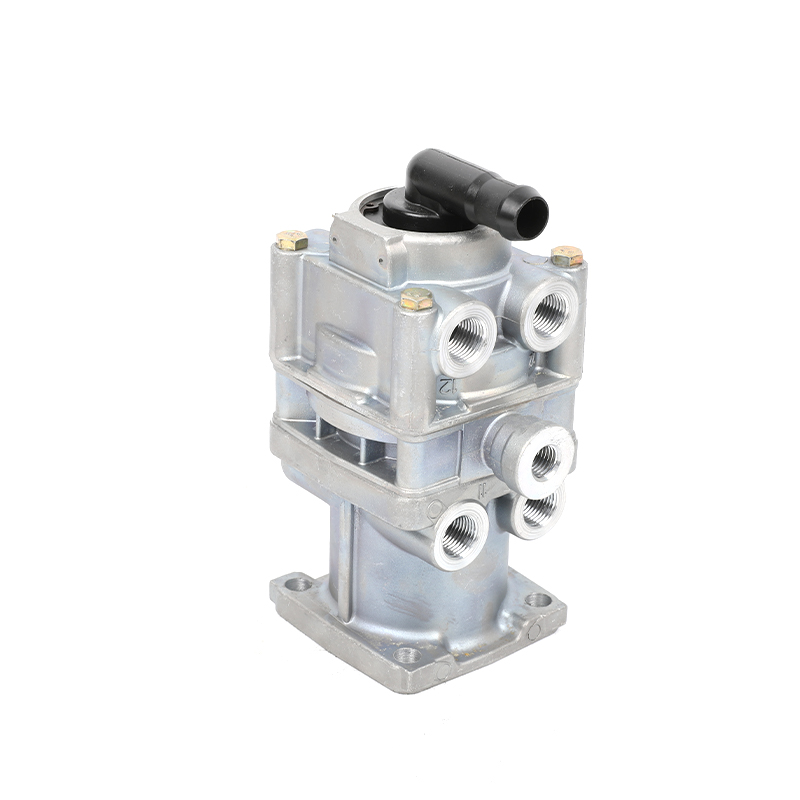

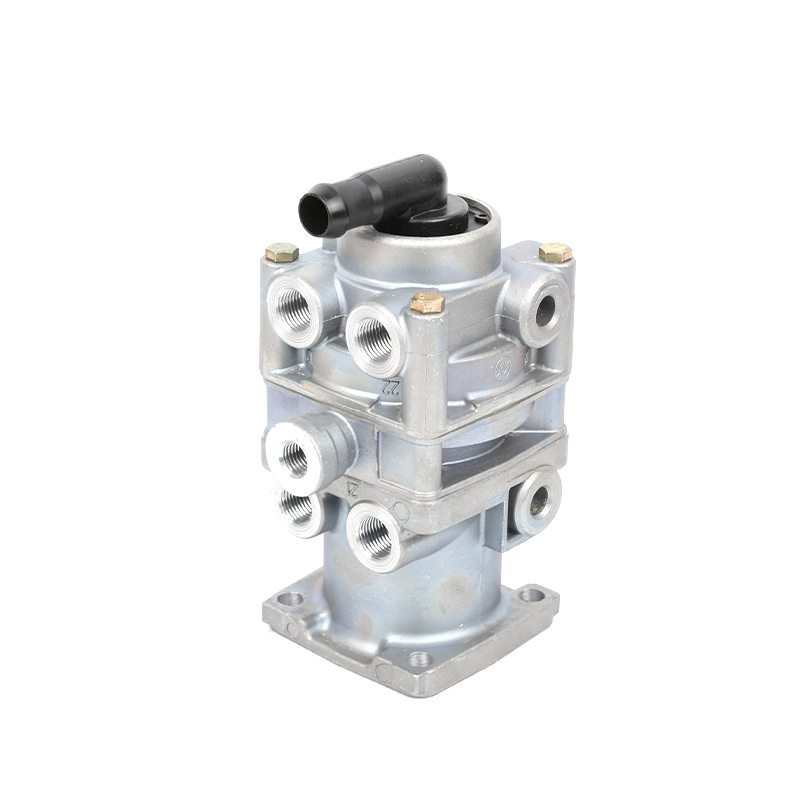

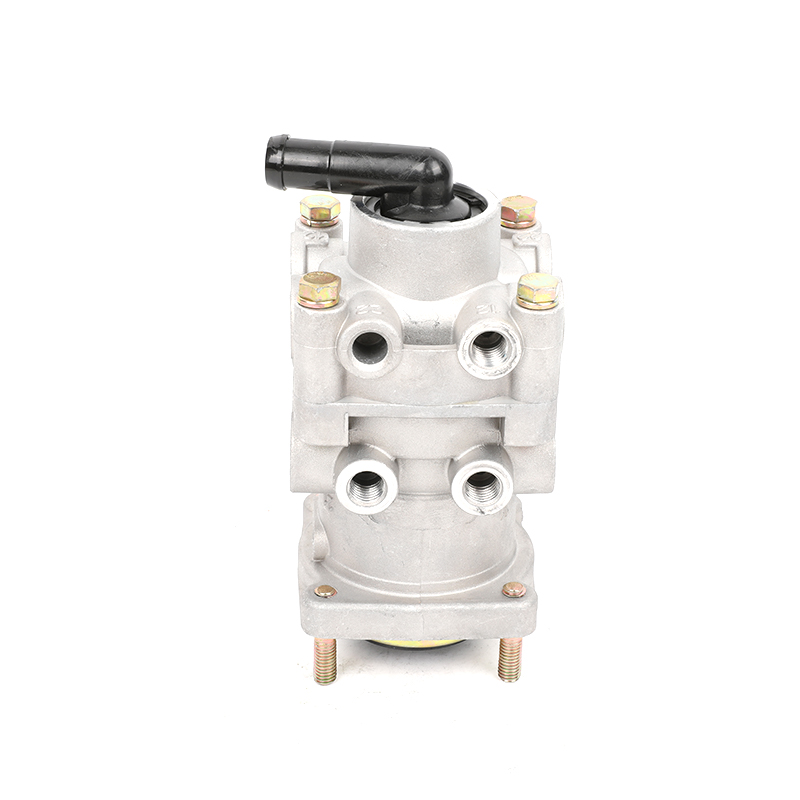

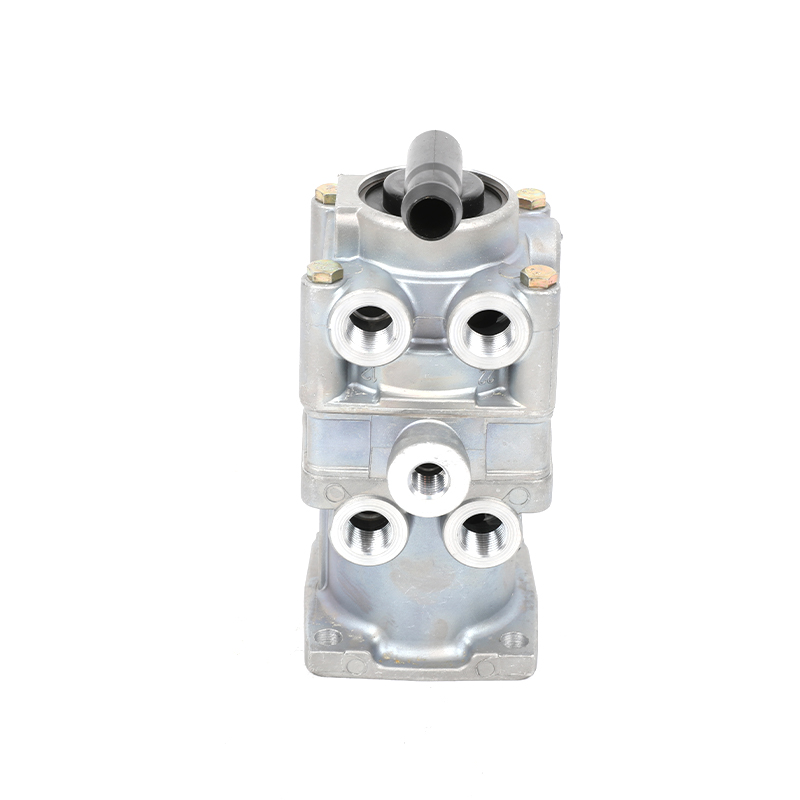

4613190080 Mounting:4x ø 9.0 mm foot brake valve Custom

4613190080 Mounting:4x ø 9.0 mm foot brake valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is foot brake valve?
    The foot brake valve is used to actuate and control the brakes on all wheels when the vehicle is in motion. The common reference is to the service brake control valve.

    Product Category:

    Device

    Distance between holes:

    61.0 x 61.0 mm

    Exhaust:

    Union

    Max. operating pressure:

    10.0 bar

    Mounting:

    4x Ø 9.0 mm

    Port thread 11:

    M16 x 1.5

    Port thread 12:

    M16 x 1.5

    Port thread 21:

    M16 x 1.5

    Port thread 22:

    M16 x 1.5

    Port thread 3:

    Union

    Port thread 4:

    M12x1.5

    Predominance:

    0.30 bar

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    1.5132

    Size (mm x mm x mm):

    177 x 103 x 83

    Weight (kg):

    1.406

    Weight (lb):

    3.0997

    Application:

    FOR MERCEDES-BENZ,DAF, EVOBUS, STEYR

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 4613190080 Mounting:4x ø 9.0 mm foot brake valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
