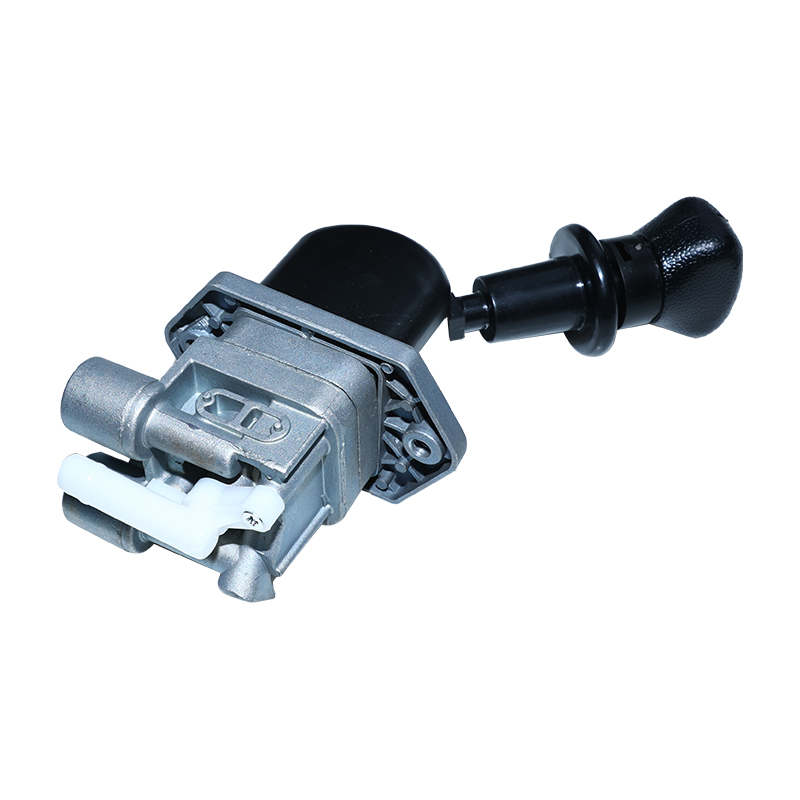

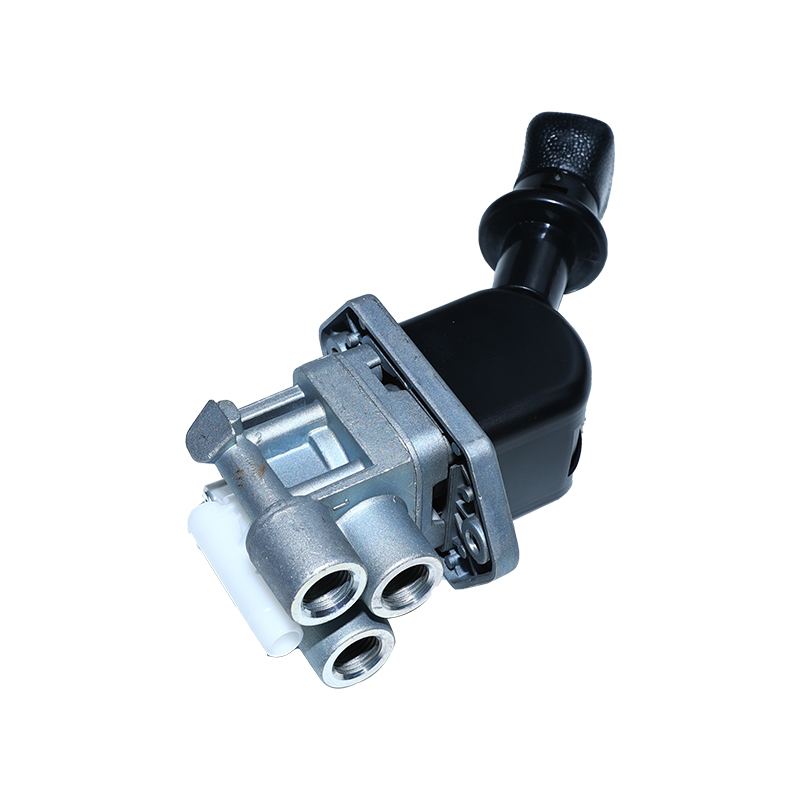

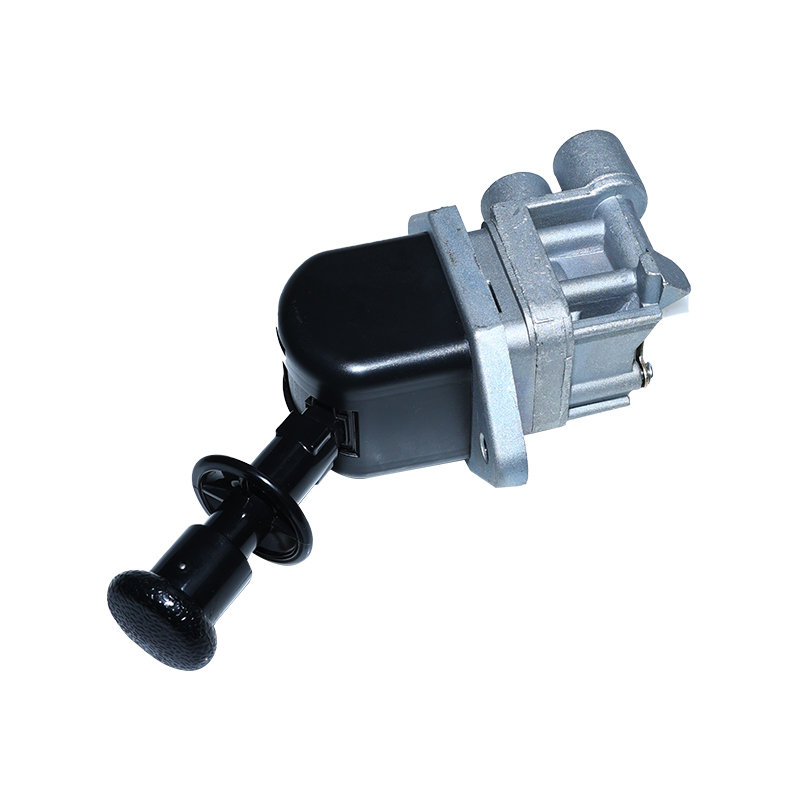

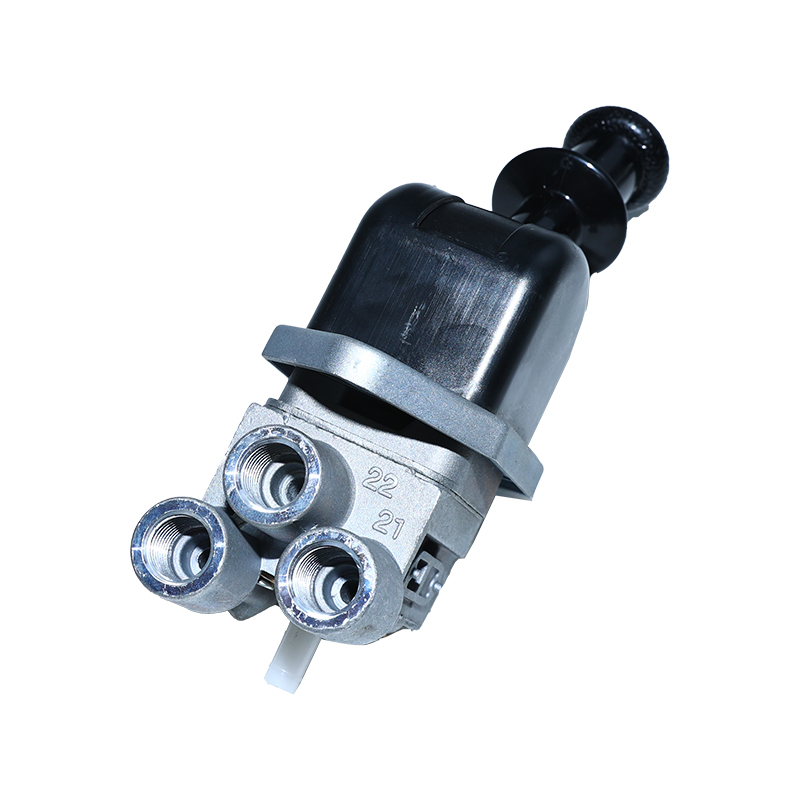

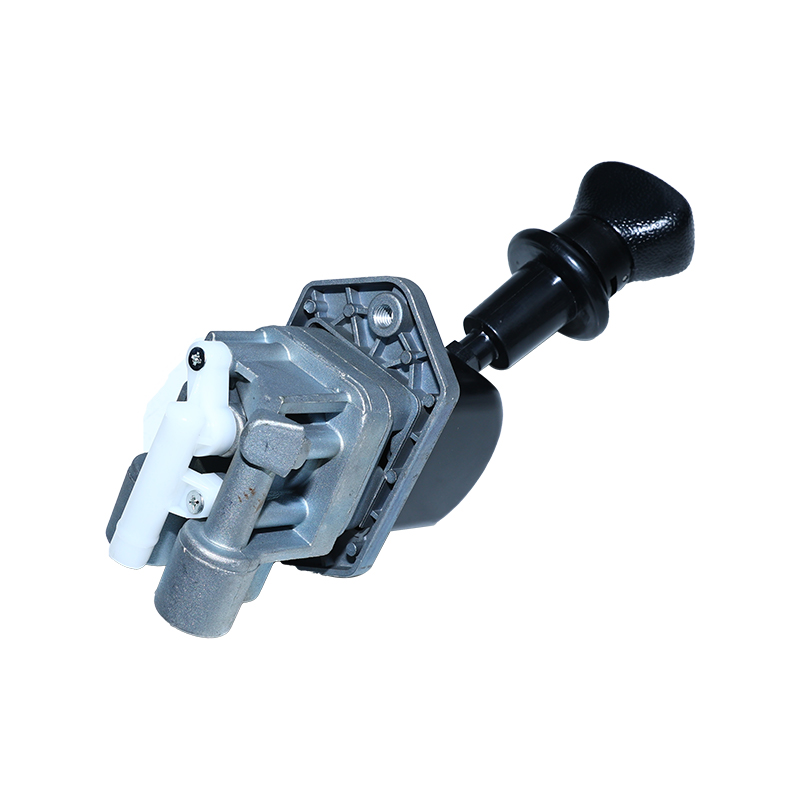

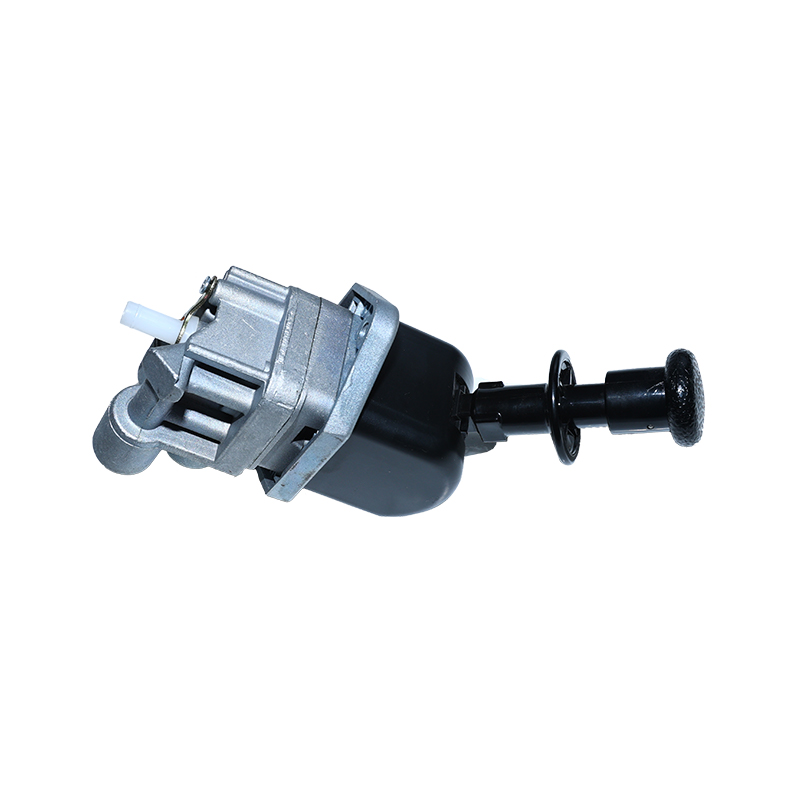

9617231120 Parking position:73°for steyr daf,man hand brake valve Custom

9617231120 Parking position:73°for steyr daf,man hand brake valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is a trailer brake hand valve used for?
    1 – Trailer Hand Valve. The trailer hand valve (also called the trolley valve or Johnson bar) works the trailer brakes. The trailer hand valve should be used only to test the trailer brakes. Do not use it in driving because of the danger of making the trailer skid.

    Actuation angle:

    73°

    Color:

    Black

    Distance between holes:

    90.0 mm

    Exhaust:

    Flap

    Max. operating pressure:

    10.0 bar

    Mounting:

    M8

    Parking position:

    73°

    Port thread 1:

    M16 x 1.5 JED - 388

    Port thread 21:

    M16 x 1.5 JED - 388

    Port thread 22:

    M16 x 1.5 JED - 388

    Port threads:

    M16 x 1.5 VOSS

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    1.753

    Size (mm x mm x mm):

    196 x 126 x 71

    Weight (kg):

    0.777

    Application:

    DAF,MAN,NEOPLAN,STEYR,TATRA

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9617231120 Parking position:73°for steyr daf,man hand brake valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
