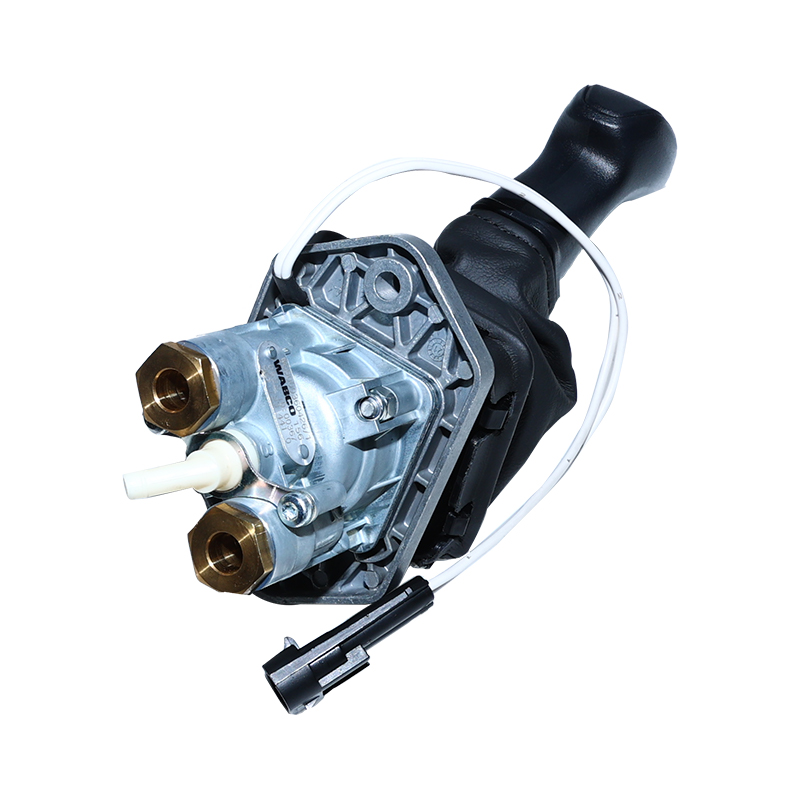

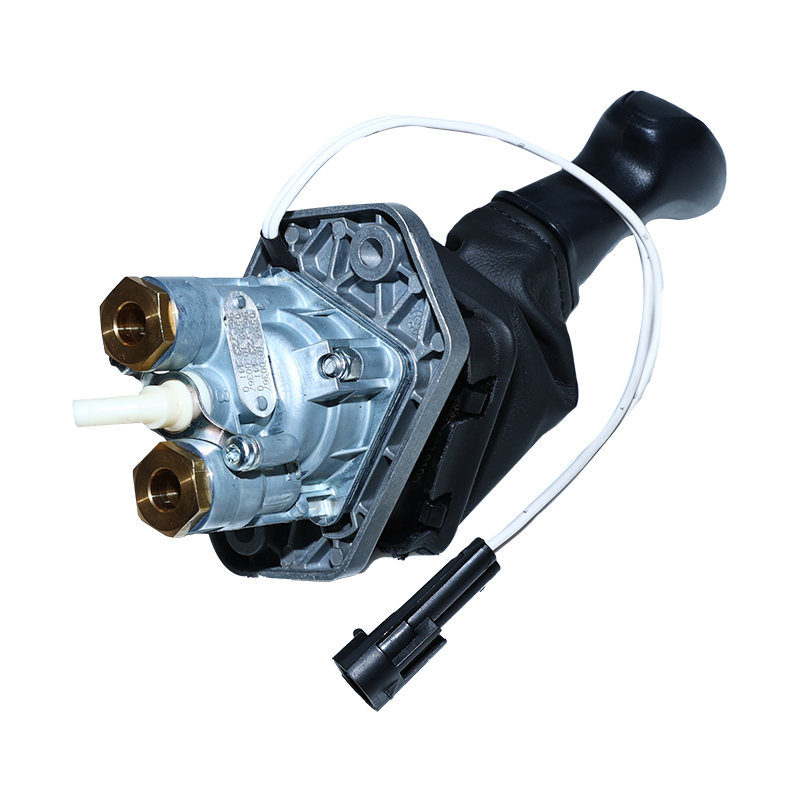

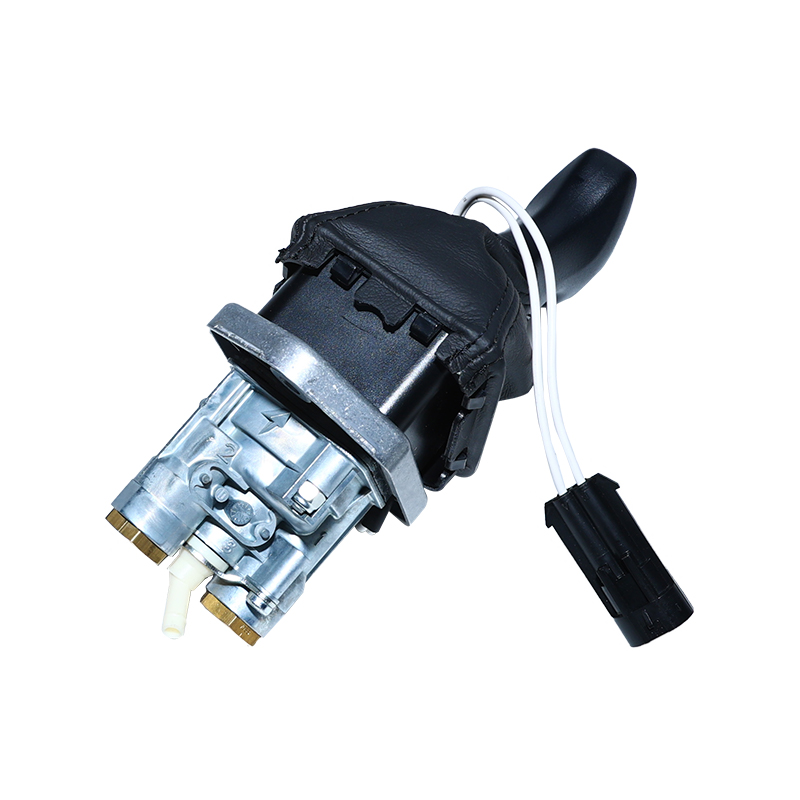

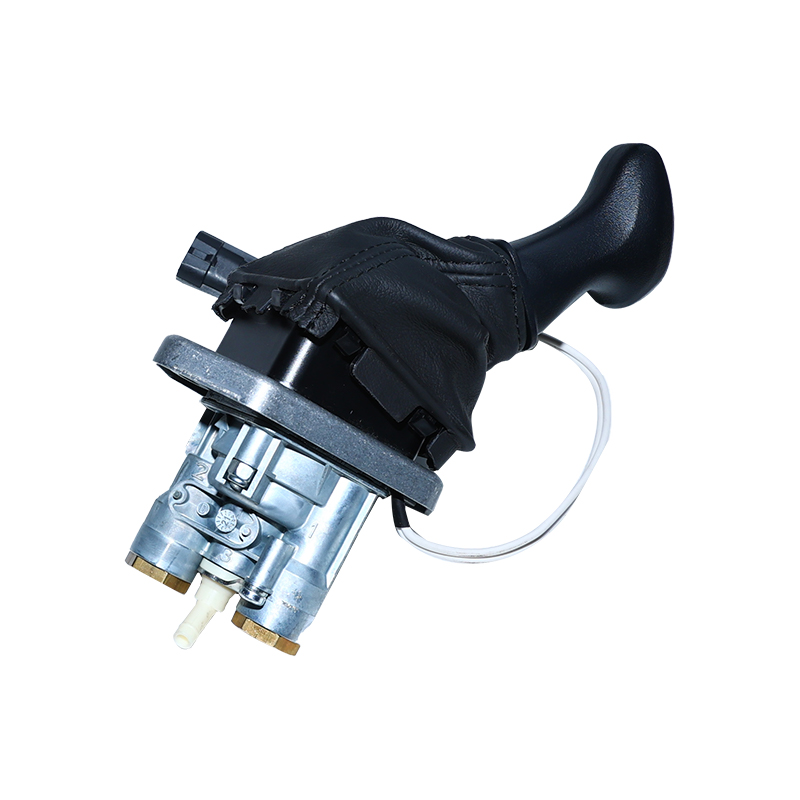

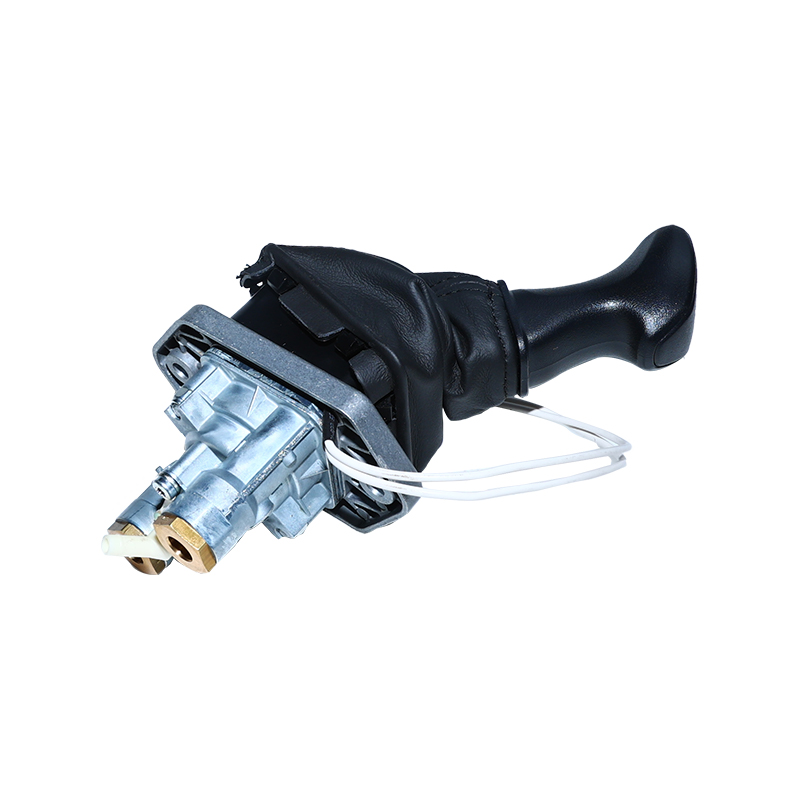

9617234410 Rated current:500 ma hand brake valve Custom

9617234410 Rated current:500 ma hand brake valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is a hand brake valve?

    The hand brake valve is designed as a direct operated 3-way pressure reducing valve and is designed for use in spring loaded braking systems; other applications, however are also possible. In position 1 (see Unit dimensions) of the hand lever the through flow from S to B is open.

    Actuation angle:

    73°

    Color:

    Black/Black

    Distance between holes:

    80.0 mm

    Exhaust:

    Hose Nozzle Ø 6 mm

    Max. operating pressure:

    10.0 bar

    Mounting:

    2x Ø 7 mm

    Port thread 1:

    VOSS 230 NG8

    Port thread 21:

    Voss 230 NG8

    Rated Current:

    500 mA

    Temperature range:

    -40°C to +80°C

    Voltage:

    24 V

    Weight (kg):

    0.65

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9617234410 Rated current:500 ma hand brake valve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
