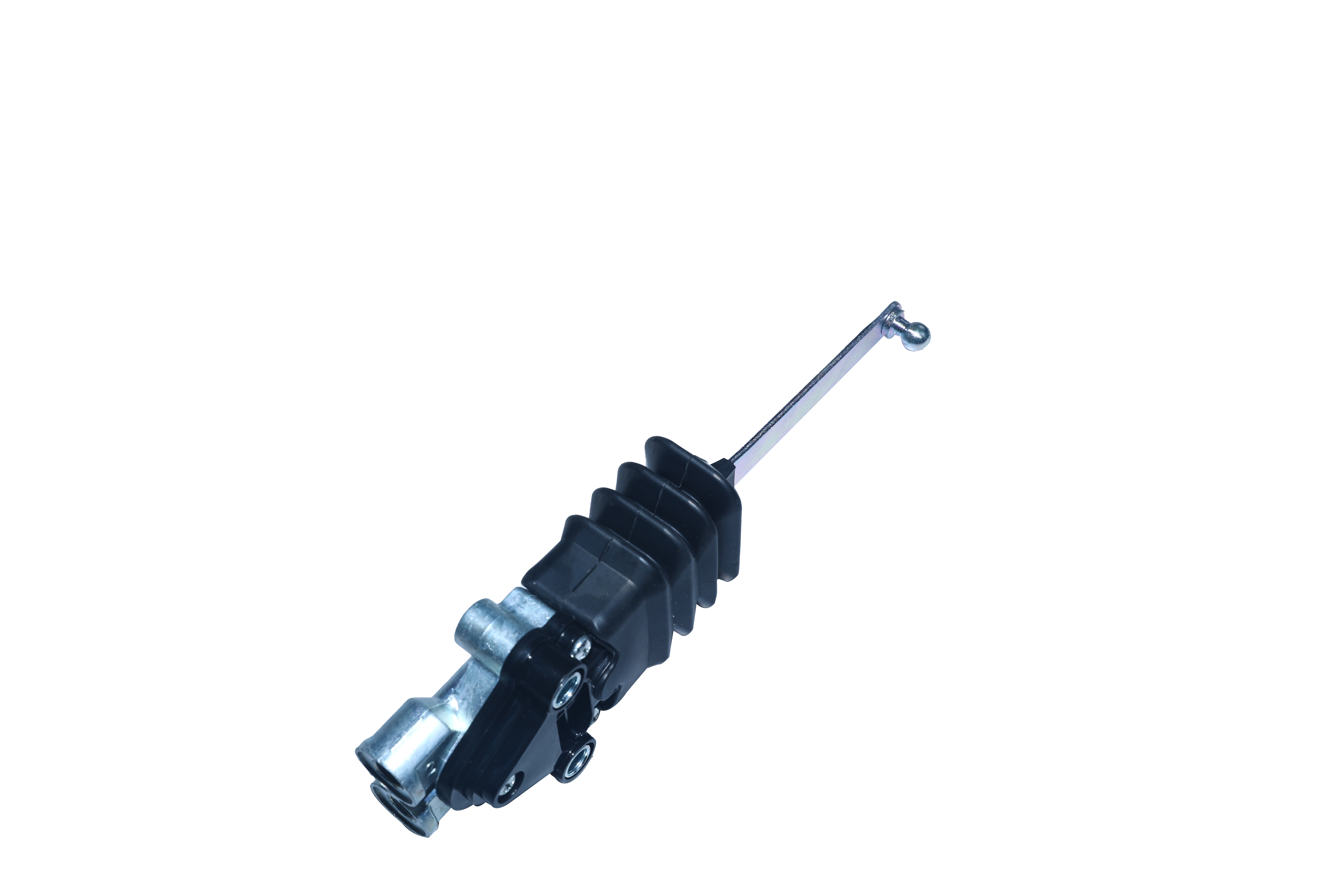

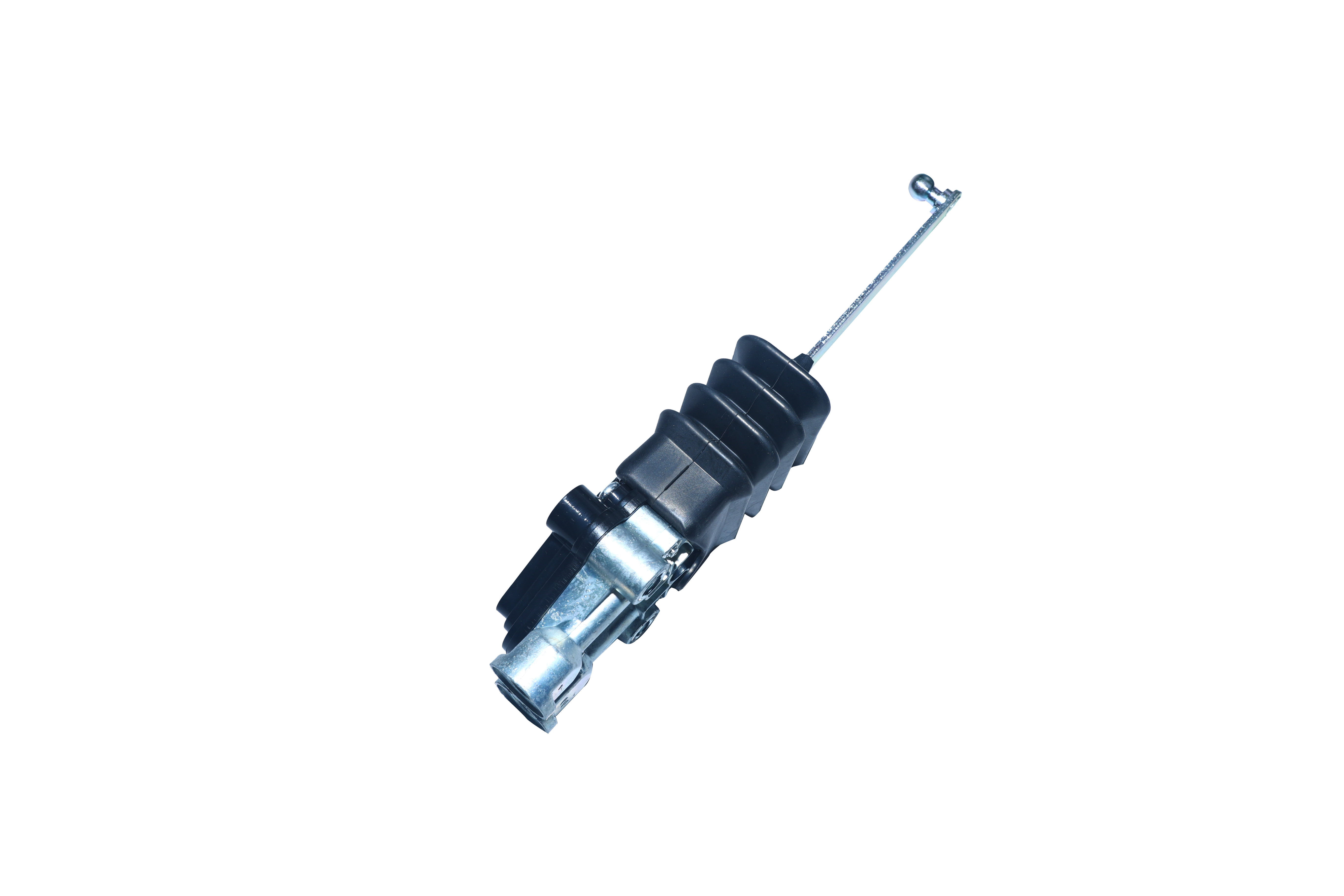

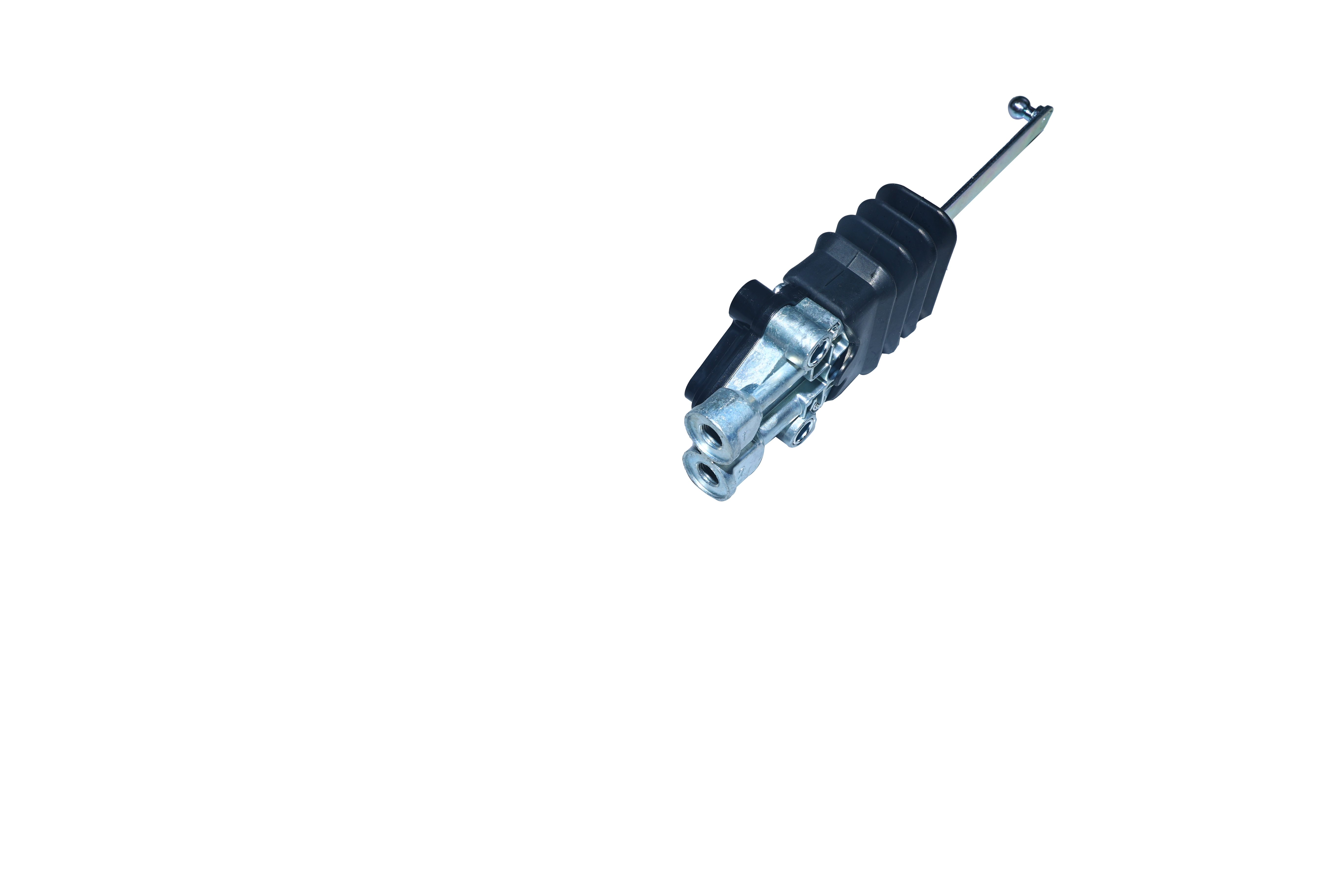

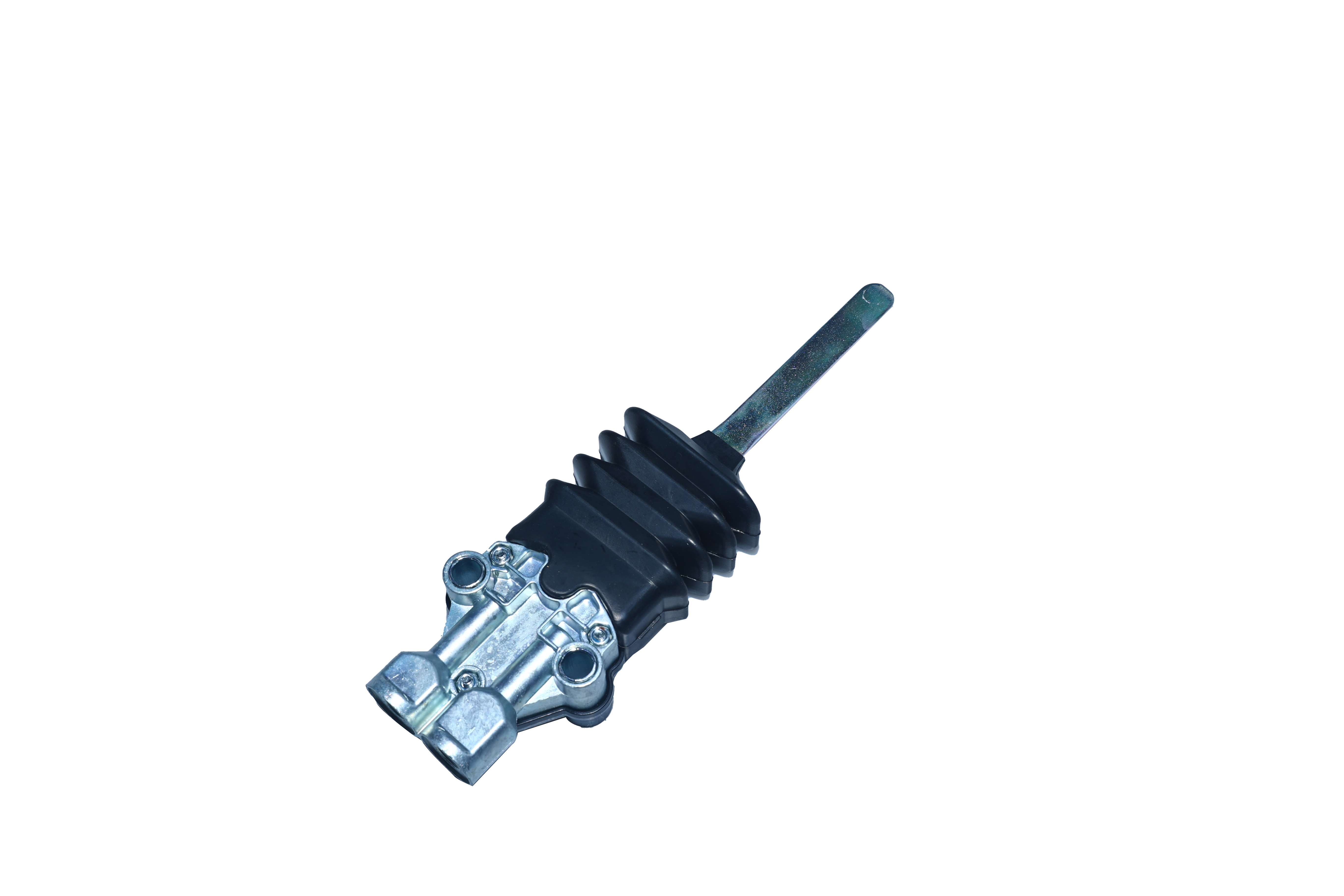

What is a levelling valve?
The function of the levelling valve is to maintain the car body on a set level, in order to safeguard a safe embarking or disembarking of passengers at the station and to increase the driving comfort by an optimum setting of the air suspension.
Technical SpecificationOE specification
Actuation angle:-19° to +19°
Distance between holes:1.83 in
Length:6.97 in
Max. operating pressure:159.5 psi
Mounting:2x Ø 0.34 in
Port thread :1M10 x 1
Port thread :2M10 x 1
Stroke of leve:r±30°
Temperature range-40 to + 185° F
Type:With Lever
Type of operation:Sphere-lever Ø 8 mm
Version:With one-way valve
Calculated Volume (dm³):0.58049
Size (mm x mm x mm):67 x 228 x 38
Weight (kg):0.354
Weight (lb):0.78044
APPLICATION: DAF,KENWORTH,MERITOR,PACCAR,PETERBILT,RENAULT,VOLVO
| Vehicle type | Brand | Series | Type | Model | Engine type |
|---|---|---|---|---|---|
| TRUCK | DAF | --------- | --------- | --------- | --------- |
| TRUCK | PACCAR | --------- | --------- | --------- | --------- |
| TRUCK | RENAULT TRUCKS | --------- | --------- | --------- | --------- |
| TRUCK | VOLVO | --------- | --------- | --------- | --------- |
