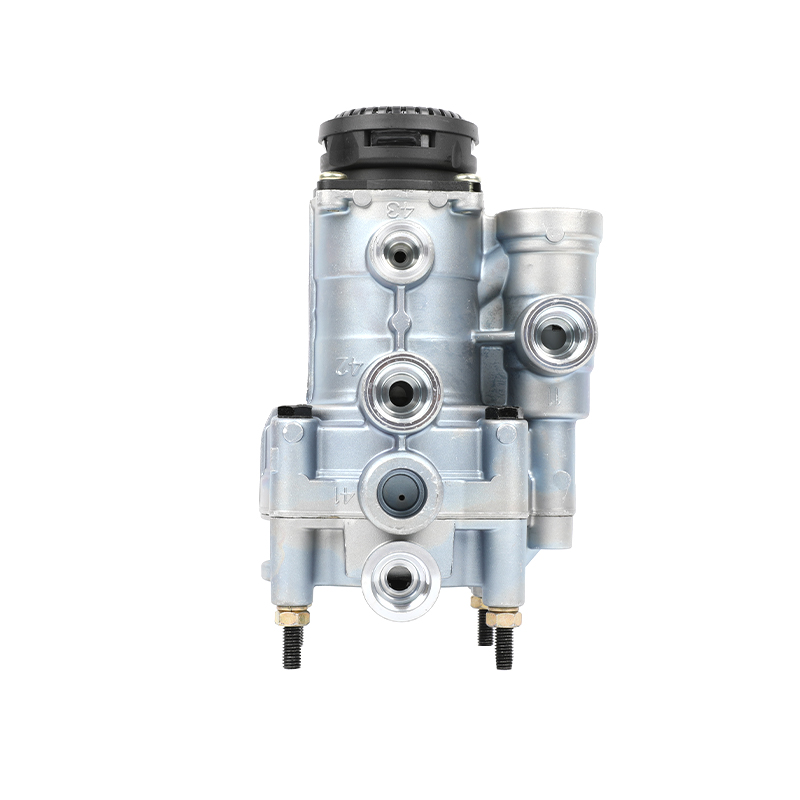

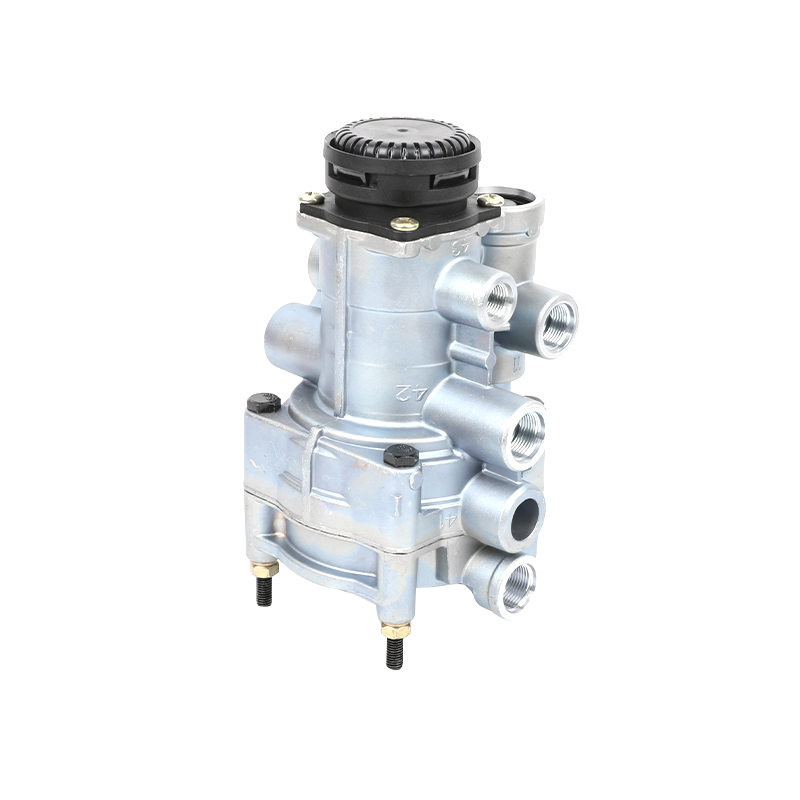

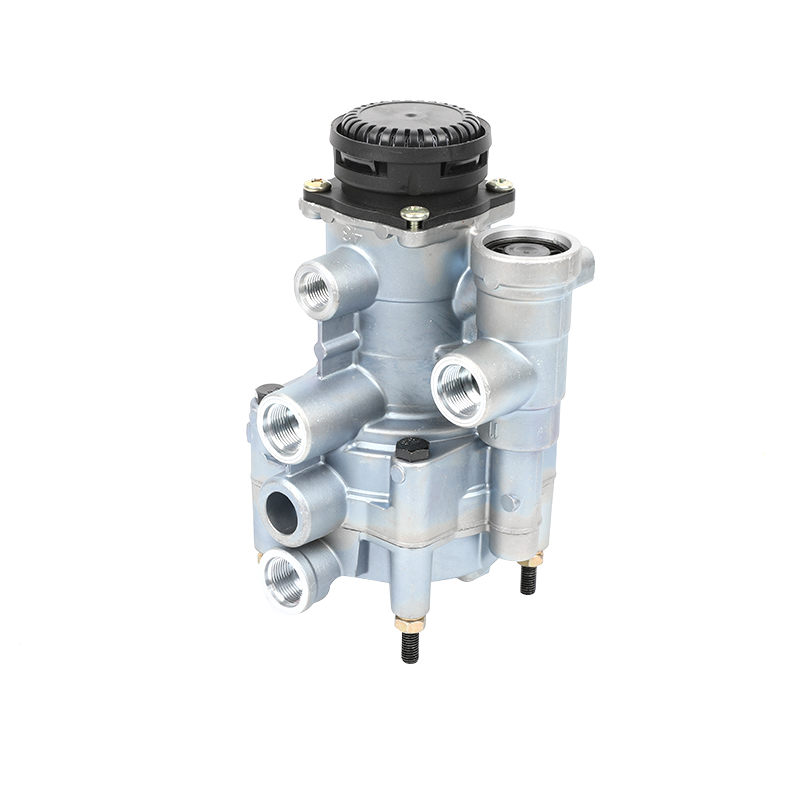

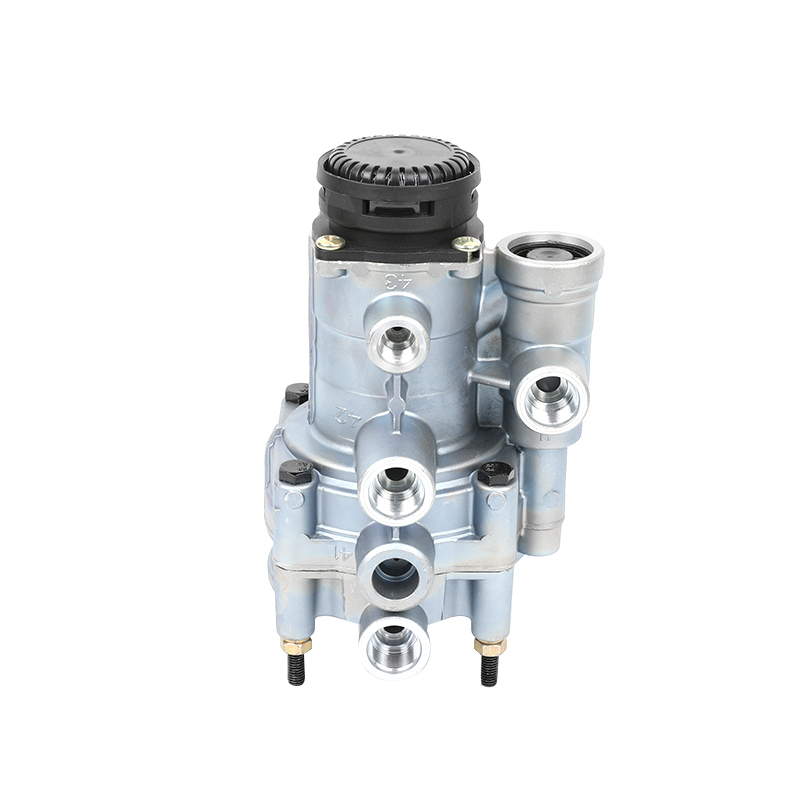

9730093000 Max. operating pressure:8.0 bar with silencer trailer control valvelve Custom

9730093000 Max. operating pressure:8.0 bar with silencer trailer control valvelve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Where is the trailer control valve located?
    The most common vehicle application is the independent control of the trailer's service brakes on a tractortrailer combination. Typically, the TC7 valve is mounted either inside the steering column or clamped to the exterior of the column.

    Technical Specification:

    OE specification

    Distance between bolts:

    85.0 x 85.0 mm

    Exhaust:

    Silencer

    Max. operating pressure:

    8.0 bar

    Mounting:

    4x M8

    Multi Nominal diameter (From Port 1 to x):

    9 mm

    Port thread 11:

    M22 x 1.5 JED - 388

    Port thread 12:

    M22 x 1.5 JED - 388

    Port thread 22:

    M22 x 1.5 JED - 388

    Port thread 41:

    M22 x 1.5 JED-388

    Port thread 42:

    M22 x 1.5 JED-388

    Port thread 43:

    M16 x 1.5 JED-388

    Predominance:

    0.20 bar

    Temperature range:

    -40°C to +80°C

    Calculated Volume (dm³):

    4.6254

    Size (mm x mm x mm):

    236 x 141 x 139

    Weight (kg):

    2.465

    Weight (lb):

    5.4344

    Application:

    DAF,EVOBUS,FAUN,MAN,MERCEDES-BENZ,PACCAR,RENAULT

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom 9730093000 Max. operating pressure:8.0 bar with silencer trailer control valvelve Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
