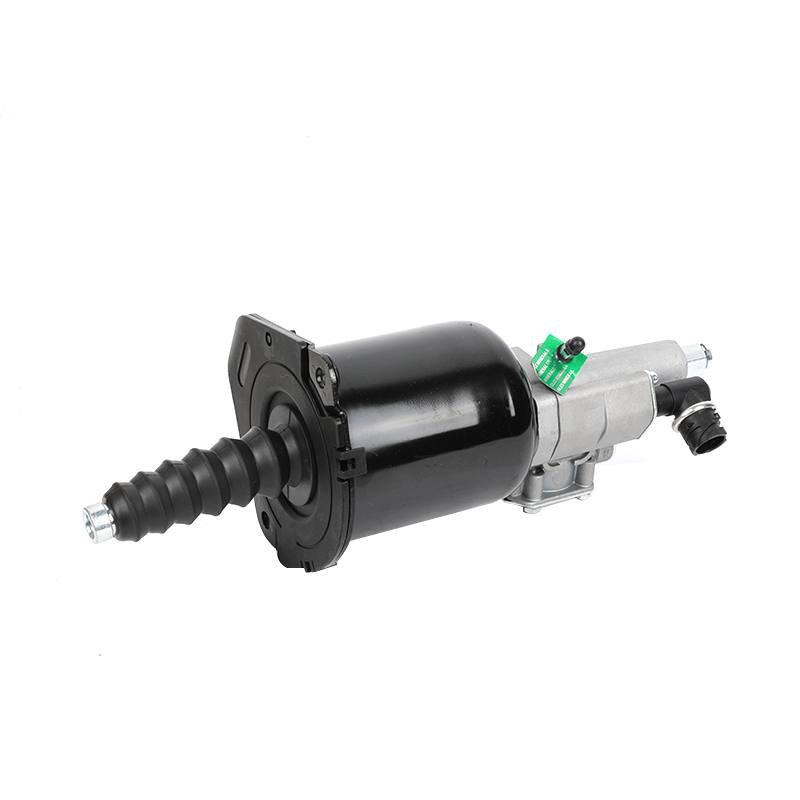

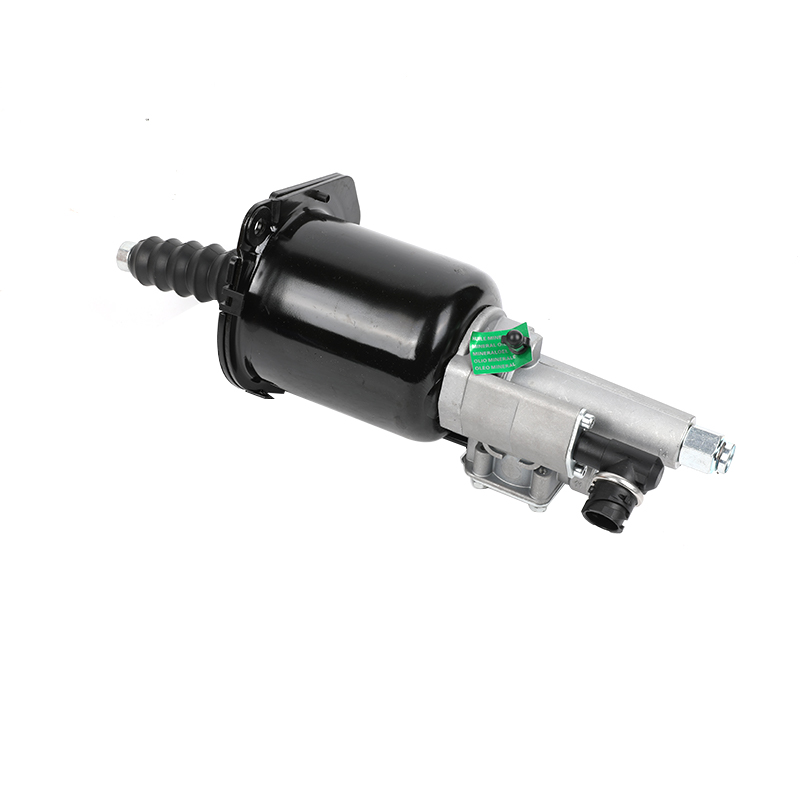

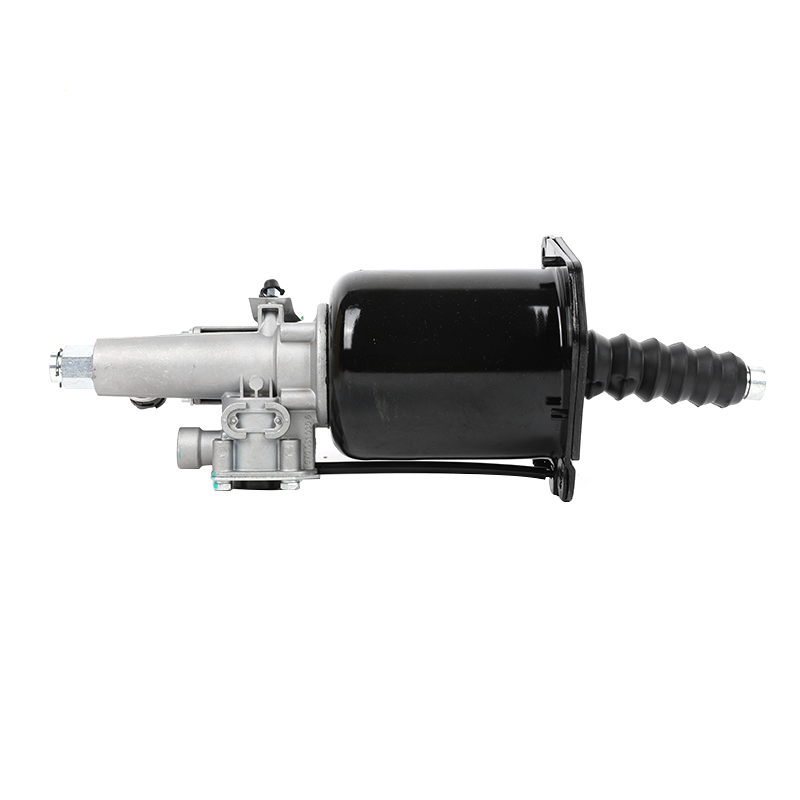

Wholesale Custom 9700514410 Stroke:85.0 mm Clutch Servo Supplier Company

A clutch servo is a pneumatically-assisted clutch-actuation device, enabling accurate and sensitive clutch use. It dramatically reduced the amount of effort required by the driver when actuating the clutch pedal.

Part type:Premium original quality

Comments:DC SM1

Distance between holes:110.0 mm

Electrical connection:Bayonet DIN 72585 - A1

Length:290 mm

Max. operating pressure:10.0 bar

Mounting:2x Ø 11.0 mm

Oil inlet:Mineral oil

Port thread 1-4:M14 x 1.5 ( B )

Port thread 11:M16 x 1.5

Port thread 31:Flap Exhaust

Port thread 32:Ø 8.0 mm

Product category:Device

Push-rod thread:Hole Ø12.1 mm

Stroke:85.0 mm

Technical specification:OE specification

Temperature range:-20°C to +80°C

Voltage:12 V

Calculated Volume (dm³):8.2191

Size (mm x mm x mm):405 x 139 x 146

Weight (kg)”3.145

Weight (lb):6.9335

DAF:1527600

KENWORTH:S9700514410

MAN:81307256104

MAN:0002540447

MERCEDES-BENZ:0002540447

MERCEDES-BENZ:A0002540447

MERCEDES-BENZ：A0002540447Z001

MERCEDES-BENZ：A0002540447Z002

MERCEDES-BENZ：0002540447Z002

MERCEDES-BENZ：B954237513401

MERCEDES-BENZ：81307256104

MERITOR：S9700514410

NEOPLAN：81307256104

PACCAR：1527600

PETERBILT：S9700514410

SCANIA：1935609

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale 9700514410 Stroke:85.0 mm Clutch Servo Supplier and Custom 9700514410 Stroke:85.0 mm Clutch Servo Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
