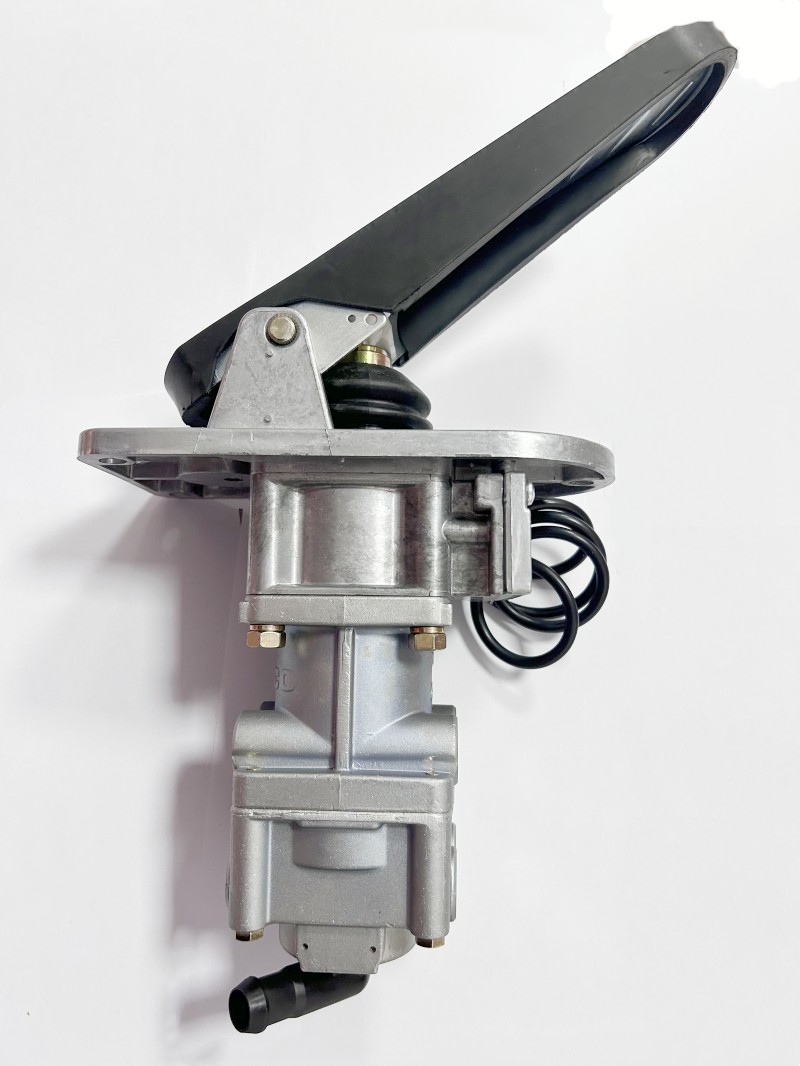

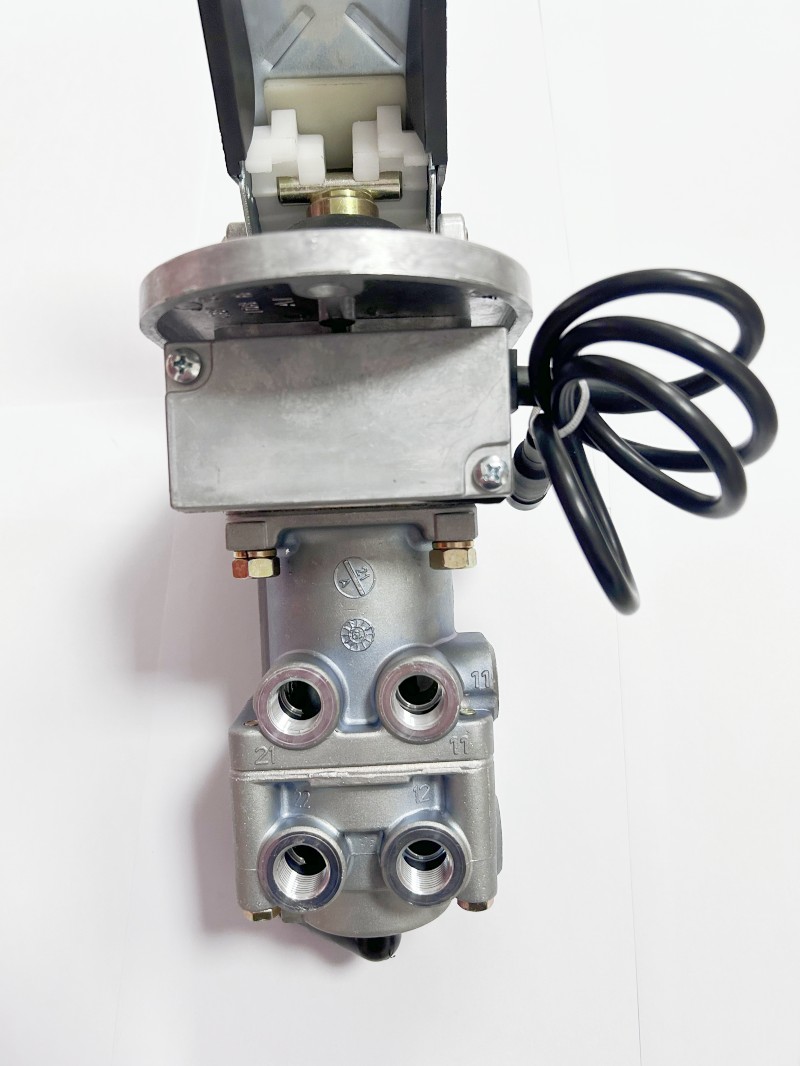

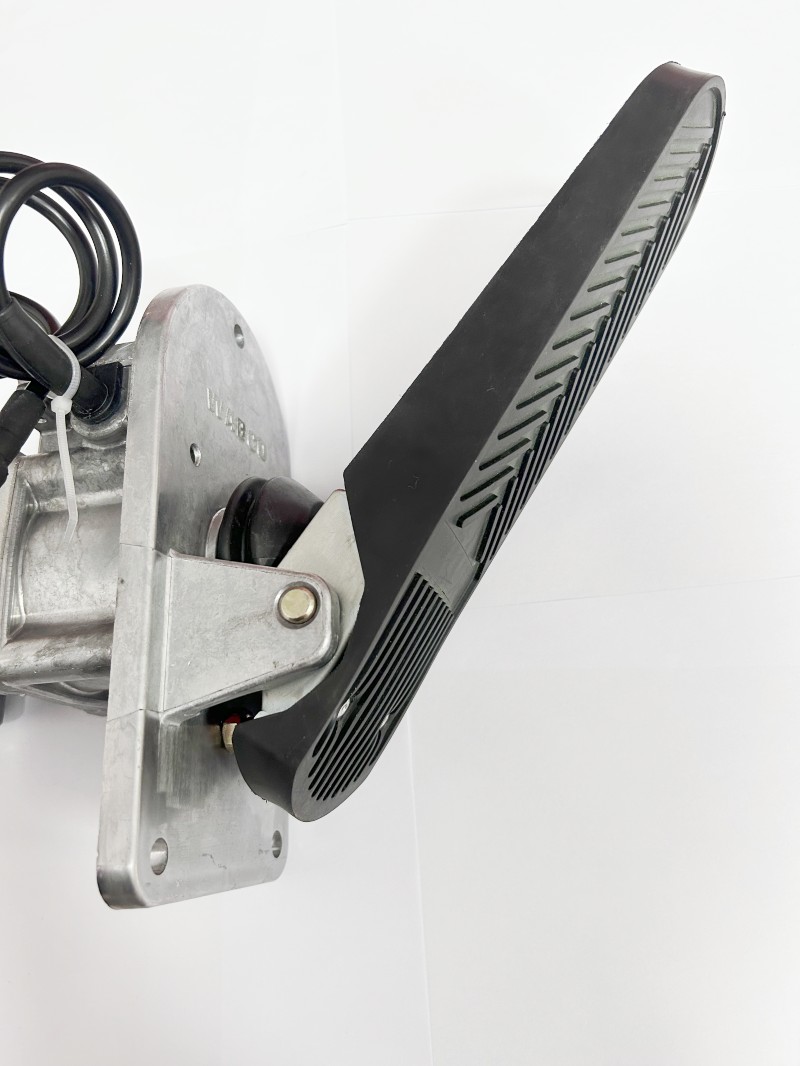

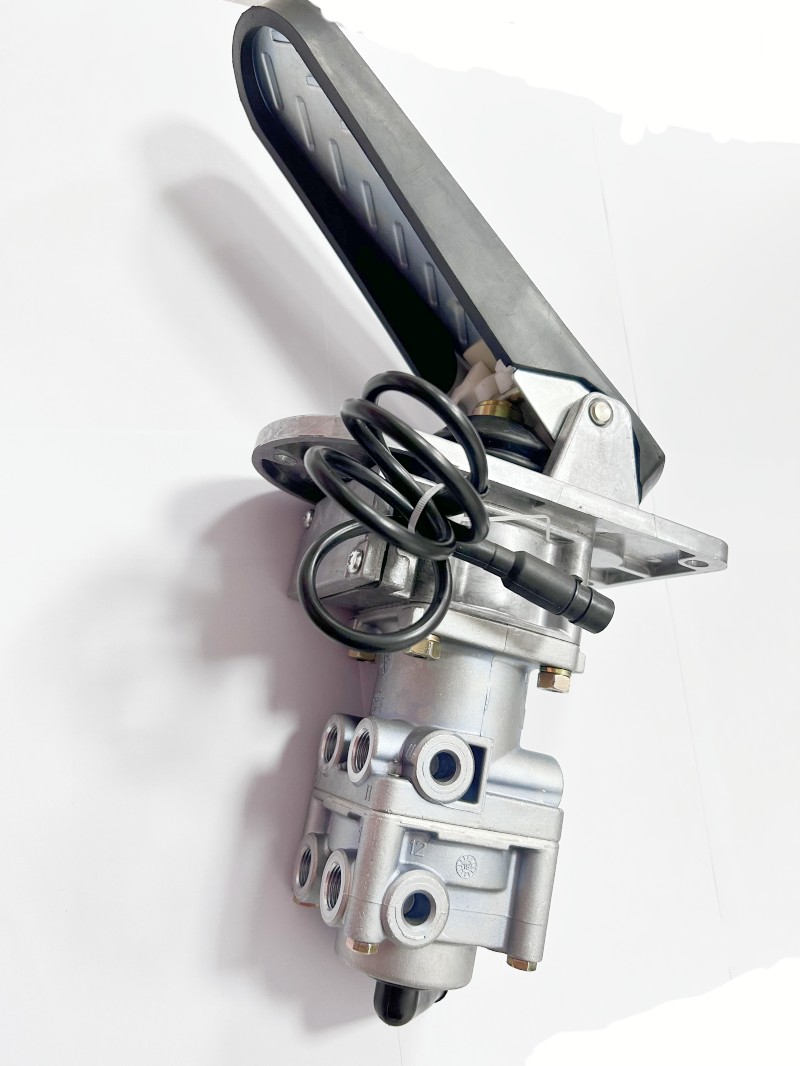

Foot Brake Valve 4613180030 FOR WABCO FREN PEDAL MERKEZİ Max. operating pressure10.0 bar Custom

Foot Brake Valve 4613180030 FOR WABCO FREN PEDAL MERKEZİ Max. operating pressure10.0 bar

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Foot Brake Valve 4613180030 FOR WABCO FREN PEDAL MERKEZİ Max. operating pressure10.0 bar

    Part type
    :Premium original quality



    Actuation:461 904 798 2



    Basic valve:461 315 086 0



    Comments:Exhaust angled at 40 deg



    Distance between holes:80.0 x 180.0 mm



    Electrical connection:ITT Cannon 4-pin



    Exhaust:M22 x 1.5



    Max. operating pressure:10.0 bar



    Mounting:3x Ø 9.0 mm



    Pedal angle:25°



    Port thread 11:M16 x 1.5



    Port thread 12:M16 x 1.5



    Port thread 21:M16 x 1.5



    Port thread 22:M16 x 1.5



    Product category:Device



    Technical specification:OE specification



    Temperature range:-40°C to +80°C



    Calculated Volume (dm³):11.1812



    Size (mm x mm x mm):135 x 408 x 203



    UPC:193133303176



    Weight (kg):3.498



    Weight (lb):7.7118

    ALEXANDER DENNIS:661217



    ALEXANDER DENNIS:AB4613180030



    DAF:1191725



    Dimetal:4609876



    IRISBUS:222688



    IVECO:222688



    MAN:81521306095



    MAN:81521306098



    MAN:81521309098



    NEOPLAN:110240801



    NEOPLAN:11017323



    NEOPLAN:81521306098



    SOLARIS:1102408010



    VDL:41191725



    VDL:1191725

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom Foot Brake Valve 4613180030 FOR WABCO FREN PEDAL MERKEZİ Max. operating pressure10.0 bar Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
