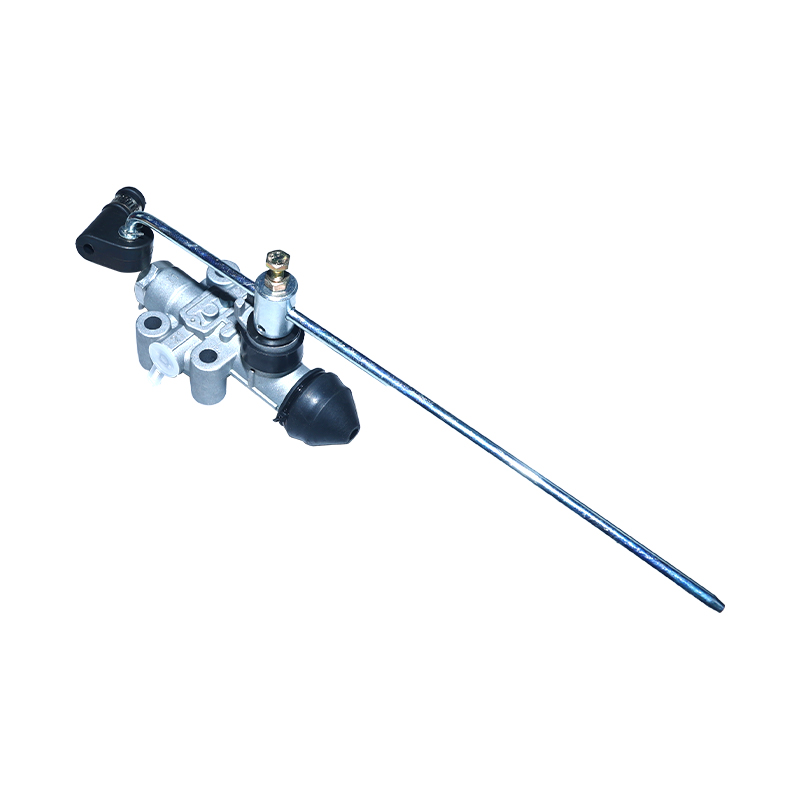

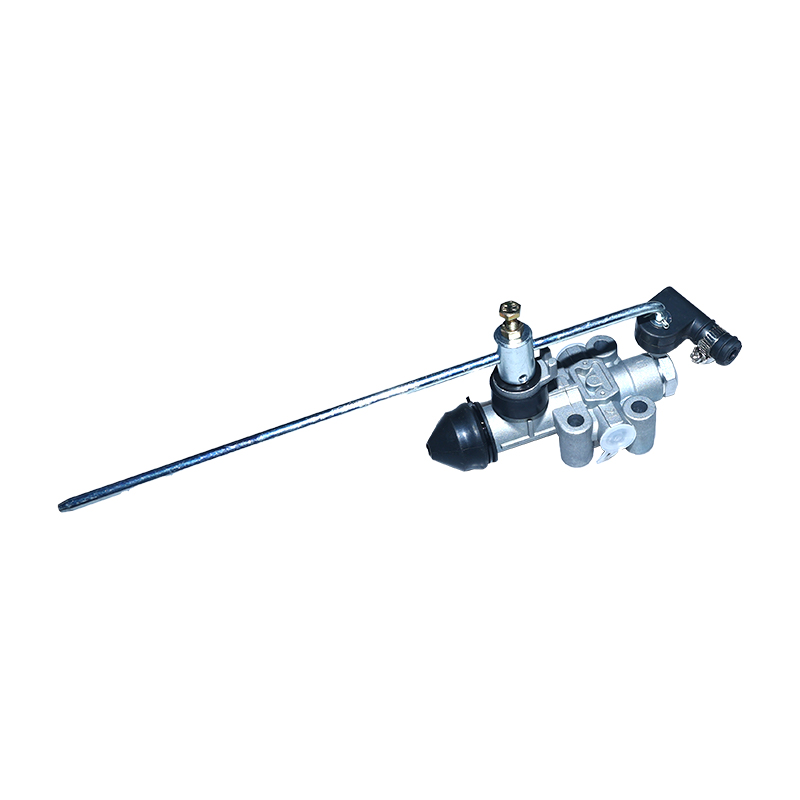

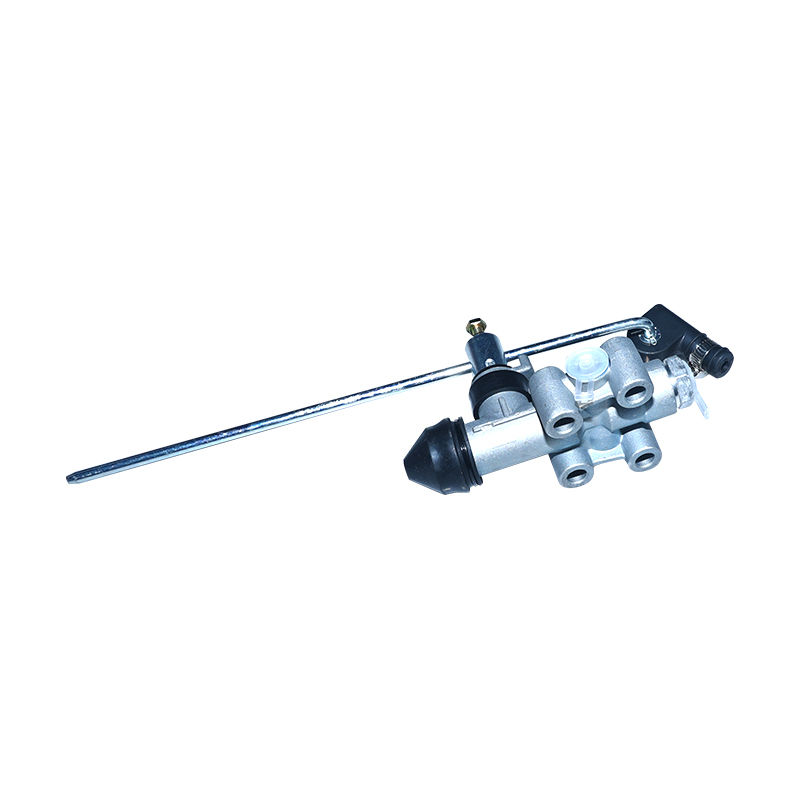

SV1307 Version:with lever levelling valve Wholesale

SV1307 Version:with lever levelling valve

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What does a leveling valve do on a truck?
    For vehicles fitted with air springs, a chassis levelling valve from Provia delivers suspension control by precisely modulating compressed air in the bellows, calculated with reference to vehicle load. The system ensures a constant ride height, charging and/or venting air suspension during loading/unloading.

    Actuation:

    Ø 6 x 313 mm

    Actuation angle:

    90°

    Comments:

    2-stage

    Distance between holes:

    40.0 mm

    Height:

    No hight limitation

    Max. operating pressure:

    22.0 bar

    Mounting:

    2x Ø 9 mm

    Nominal diameter:

    1.3 mm

    Port thread 1:

    M12 x 1.5

    Port thread 21:

    M12 x 1.5

    Port thread 22:

    M12 x 1.5

    Port thread 3:

    Flap Exhaust

    Side of mounting:

    4-sided

    Technical specification:

    OE specification

    Temperature range:

    -40 to +85 °C

    Type:

    2-circuit

    Version:

    With Lever

    Calculated Volume (dm³):

    1.792

    Size (mm x mm x mm):

    316 x 70 x 81

    Weight (kg):

    0.572

    Weight (lb):

    1.261

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as Wholesale SV1307 Version:with lever levelling valve Supplier and Custom SV1307 Version:with lever levelling valve Company, Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
