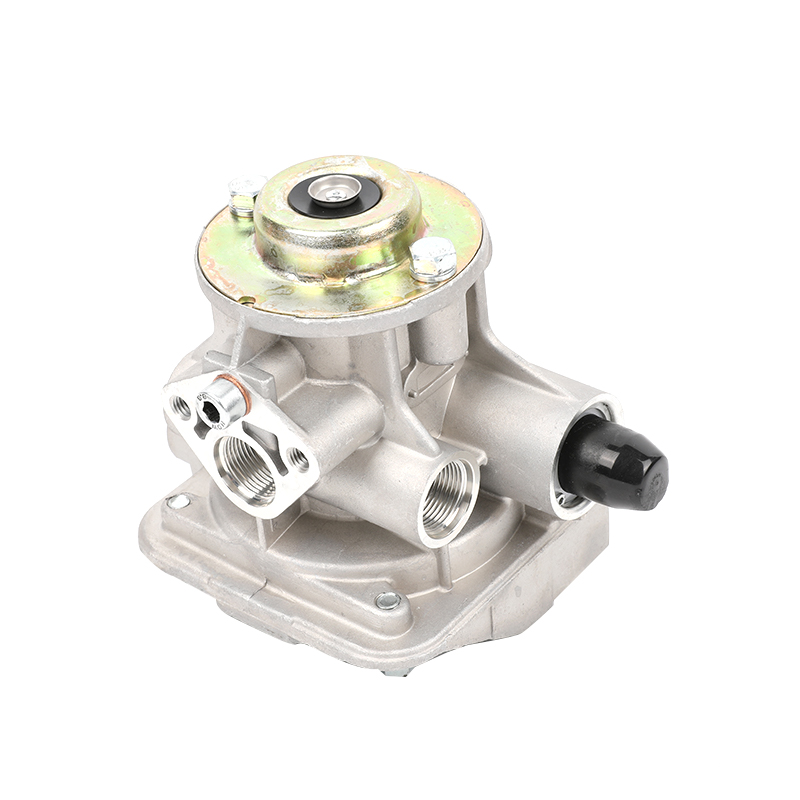

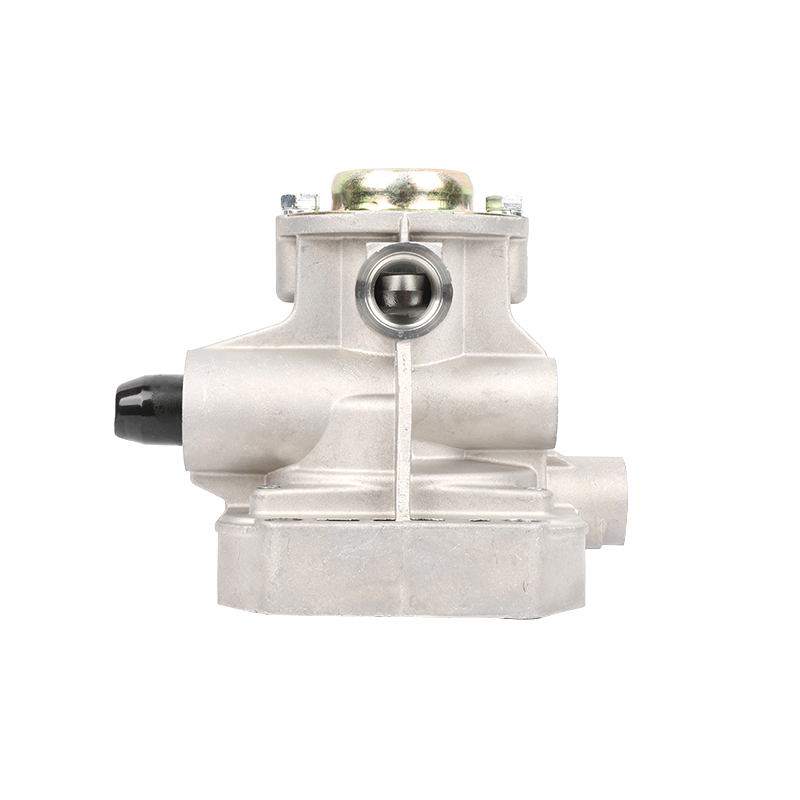

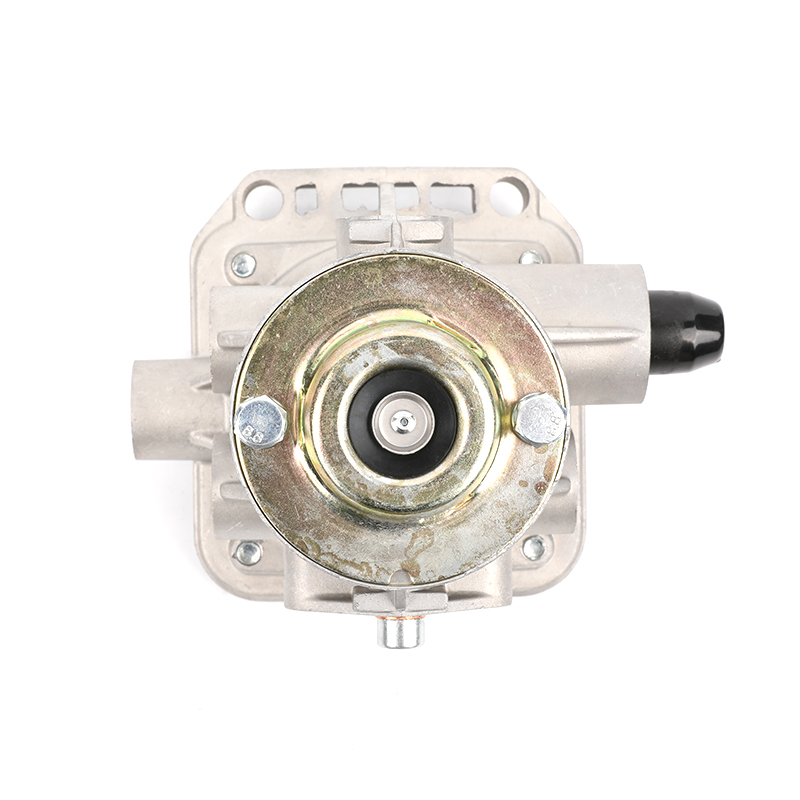

9710023000 Relay Emergency Valve Adjustable predominanceAdjustable: 0 to 1 bar Custom

9710023000 Relay Emergency Valve Adjustable predominanceAdjustable: 0 to 1 bar

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • Relay emergency valves were used on pre-121 trailers. They apply the parking and service brakes on trailers without spring brakes. It is very important that trailers with this type of valve have no air leaks as tank pressure is used to apply the brakes when parked. If the air leaks from the system, there will be no parking brake.
    The relay emergency valve controls the air brake system of a trailer and provides the "emergency brake function". It's not needed in case the installation contains already a park and shunt valve like TEM, TrCM or TrCM+ with this function. The valve complies with the requirements of EC regulations regarding brake systems. Versions with a predominance device can adapt the braking effect between towing and towed vehicle.
    Connection 1 M22x1,5
    Connection 1-2 M22x1,5
    Connection 2 3x M22x1,5
    Connection 4 M16x1,5
    Weight 1753.00 g
