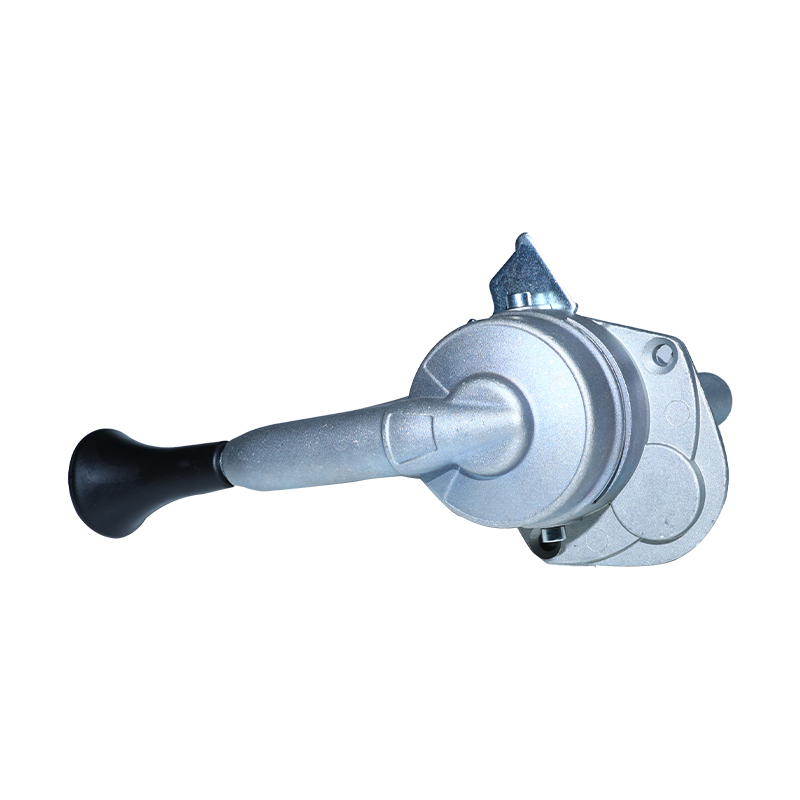

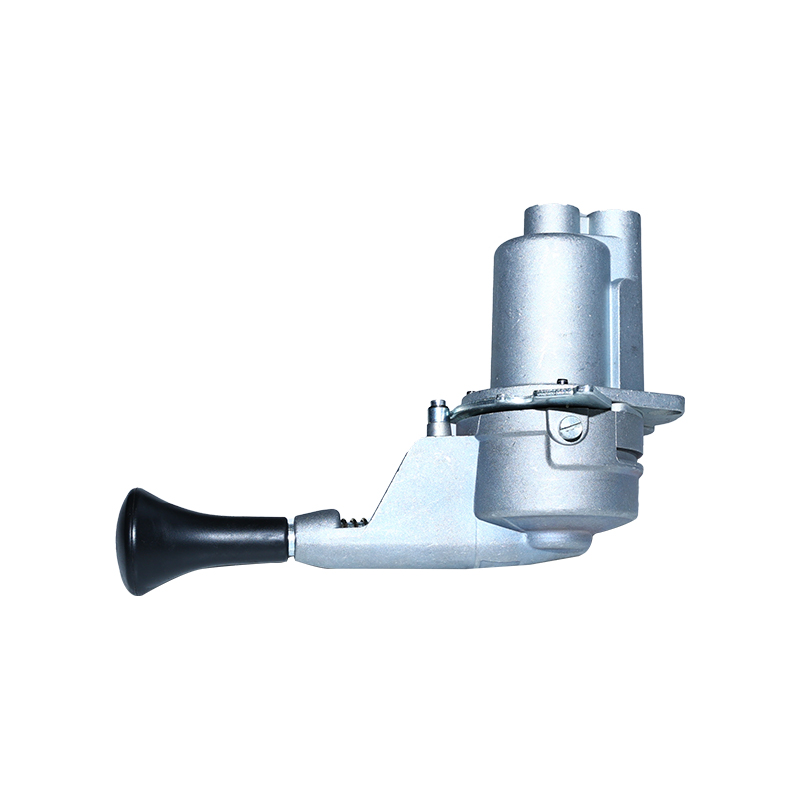

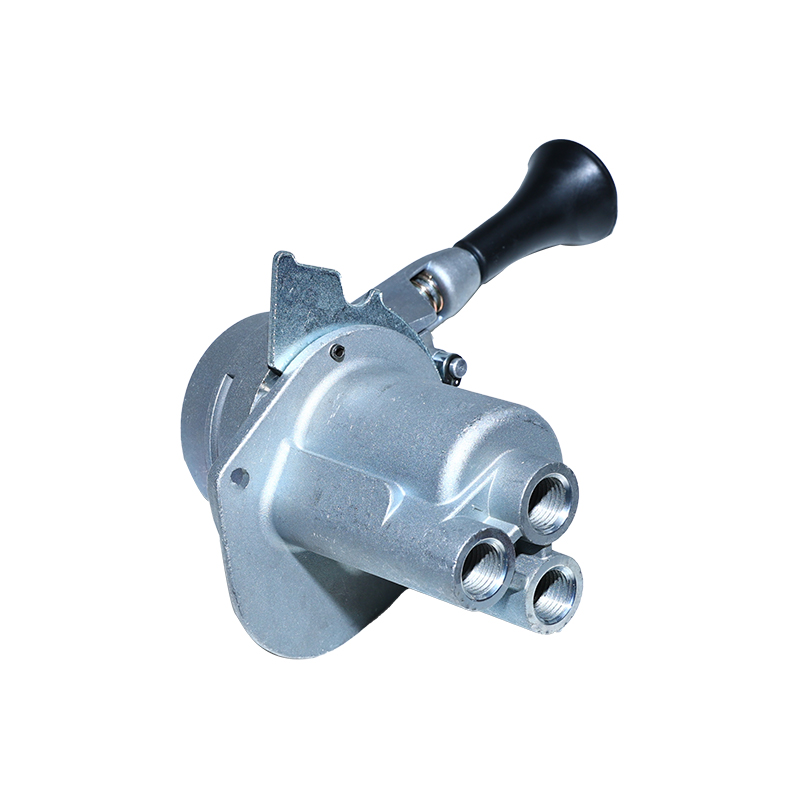

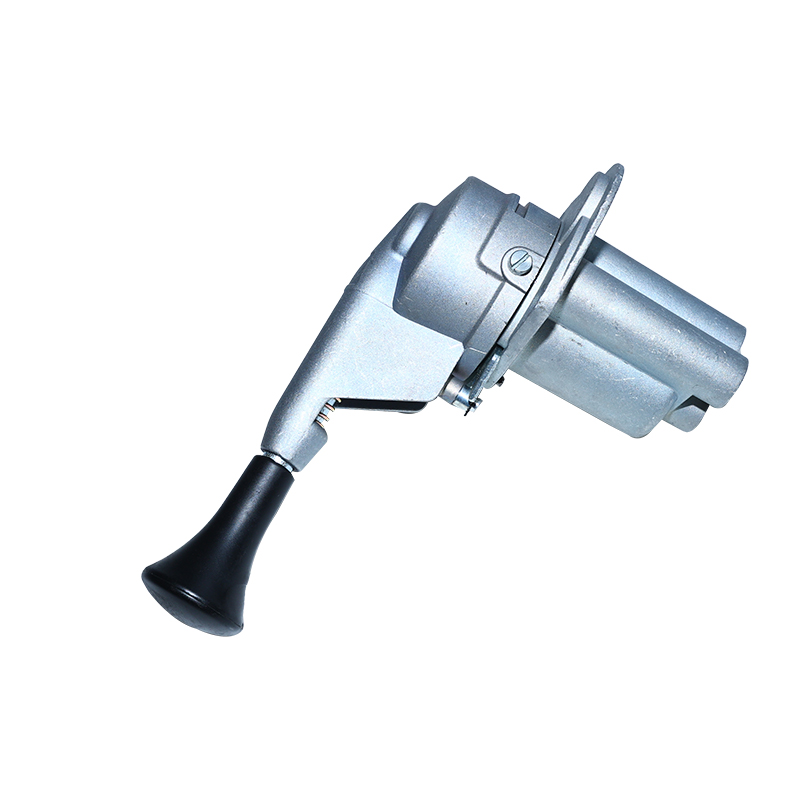

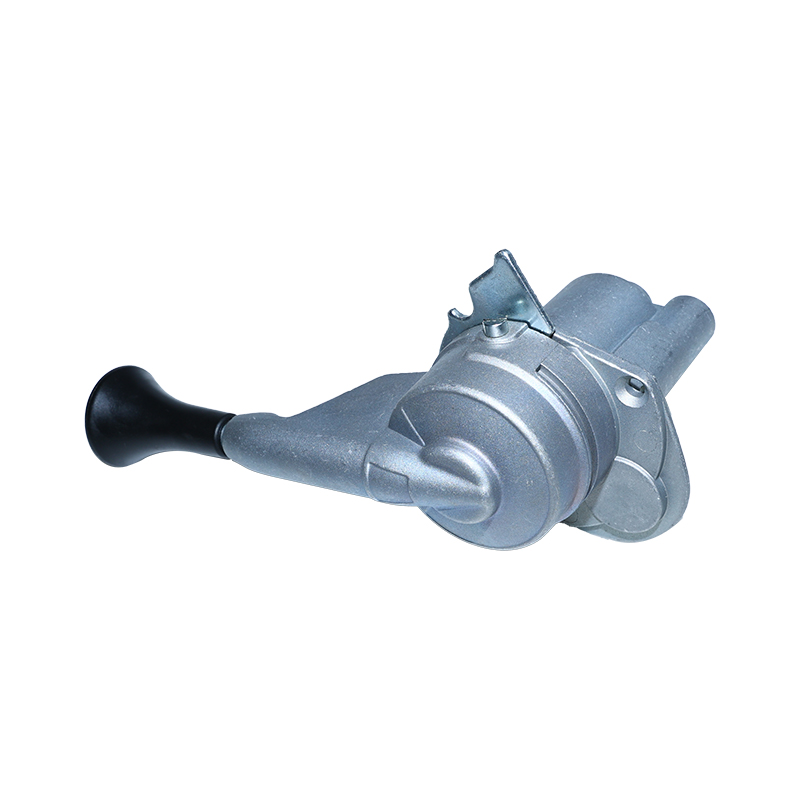

Scania 9617011000 Max. operating pressure:8.0 bar hand brake valves Custom

Scania 9617011000 Max. operating pressure:8.0 bar hand brake valves

Contact us

  • Details
  • Type of vehicle
  • Leave a message
  • What is a hand brake valve?

    The hand brake valve is designed as a direct operated 3-way pressure reducing valve and is designed for use in spring loaded braking systems; other applications, however are also possible. In position 1 (see Unit dimensions) of the hand lever the through flow from S to B is open.

    Actuation angle:

    84°

    Color:

    Back

    Distance between holes:

    75.0 mm

    Exhaust:

    M14 x 1.5

    Max. operating pressure:

    8.0 bar

    Mounting:

    2x Ø 7 mm

    Parking position:

    84°

    Port thread 1:

    M14 x 1.5

    Port thread 21

    M14 x 1.5

    Port threads

    M14 x 1.5

    Temperature range

    -40°C to +80°C

    Calculated Volume (dm³)

    5.497

    Size (mm x mm x mm)

    294 x 164 x 114

    Weight (kg)

    1.169

    Weight (lb)

    2.577

    Application

    IVECO, KOMATSU, LEYLAND DAF, MAN, MERCEDES-BENZ, NEOPLAN, O&K, RENAULT, SCANIA, STEYR, TEREX, VOLV

Zhuji Oubote Auto Parts Co., Ltd.

Zhuji Oubote Auto Parts Co., Ltd. as China Custom Scania 9617011000 Max. operating pressure:8.0 bar hand brake valves Suppliers,Our factory specializes in manufacture of air brake parts for commercial vehicles, semi trailers and heavy vehicles. Its main products are: foot brake valve, unload valve, trailer valve, hand brake Valve,load sensing valve, leveling valve, relay valve, air dryer, clutch servo and so on. Some products are matched with large domestic automobile manufacturers and exported to Southeast Asia, America, the Middle East, Africa and other regions.
Q. Where are your goods mainly exported?
Our products are mainly exported to Egypt, Nigeria, the United States, Chile, Brazil, Argentina, Turkey, Iran, Iraq, Dubai, Russia, Auckland, Algeria and dozens of other countries and regions.
Q. How to deliver goods to customers?
According to Customers requirement. Any shipment is available from us.
